- Page 1 MITWELL KUBER-2000 Series User Manual - Preliminary KUBER-2000 Series User Manual Preliminary Version Copyright © MITWELL 2019 KUBER-2000 Series User Manual...
-
Page 2: Table Of Contents
MITWELL KUBER-2000 Series User Manual - Preliminary Table of Contents REVISION ....................... 4 PREFACE ......................5 Copyright ....................5 Acknowledgement ................. 5 Warranty ....................5 Declaration of conformity ..............6 Technical support ................... 6 INTRODUCTION ..................... 7 Product overview ................... 7 Safety Precautions.................. - Page 3 MITWELL KUBER-2000 Series User Manual - Preliminary Connecting Power ................23 External Antenna installation ............... 24 MAINTENANCE ..................... 25 M.2 2230 Wifi Module Installation ............25 M.2 2242 and Mini PCI-e card installation ........... 27 Battery change ..................29 APPENDIX ..................... 30 Naming rule ..................
-
Page 4: Revision
MITWELL KUBER-2000 Series User Manual - Preliminary 1 REVISION Revision Date Page Description R1.0 20190731 Initial document release (Preliminary) Copyright © MITWELL 2019 KUBER-2000 Series User Manual... -
Page 5: Preface
2 PREFACE 2.1 Copyright This document is released and copyrighted are reserved by MiTwell, Inc. No parts of this document may be copied, reproduced by mechanical, electronics or other means in any form, for any purpose, without prior authorization by MiTwell, Inc. -
Page 6: Declaration Of Conformity
MiTwell’s products easily. We suggest that you download the latest documentation, utilities and drivers which have been made available to assist you on MiTwell website. If you still require assistance after visiting our website, you can contact your local sales and technical support team for further assistance. -
Page 7: Introduction

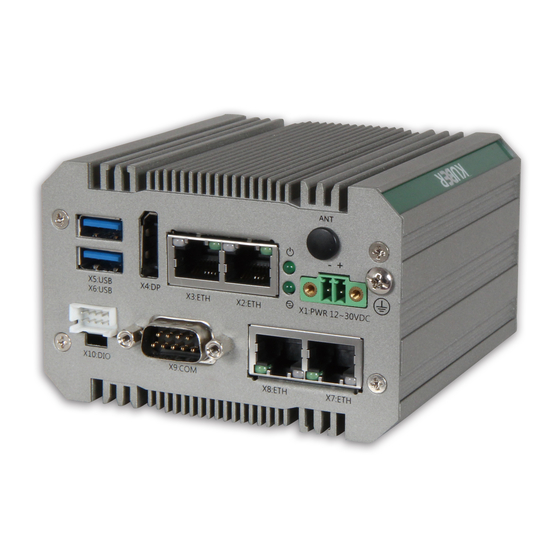

3 INTRODUCTION 3.1 Product overview KUBER-2000 series is a new generation of palm-sized, flexible and ready-to-use industrial PC designed for a variety of applications in the industrial 4.0 world. Within 10cm length, you can expect scalable Apollo Lake processors up to 4 cores, robust aluminum housing and common industrial features. -
Page 8: Safety Precautions
MITWELL KUBER-2000 Series User Manual - Preliminary 3.2 Safety Precautions Warning note This symbol indicates hazards that could lead to personal injury. There are three signal words indicating the severity of a potential injury. DANGER Indicates a hazard with a high risk level. If this hazardous situation is not avoided, it will result in death or serious injury. -
Page 9: Hardware Specification
MITWELL KUBER-2000 Series User Manual - Preliminary 3.3 Hardware Specification Model Name KUBER- 2110 KUBER - 212A KUBER - 212B KUBER - 212D KUBER - 212E KUBER - 212G Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP Memory 4GB onboard LPDDR4, 2400MT/S memory Mass Storage 32GB onboard eMMC 5.0 flash;... - Page 10 MITWELL KUBER-2000 Series User Manual - Preliminary Extended I/O Interface Model Name KUBER - 212A KUBER - 212B KUBER - 212D KUBER - 212E KUBER - 212G 1 x 2-pin screw- Power connection type terminal block (48VDC) 2 x 10/100/1000 GbE 10/100/1000 2 x 802.3af PoE...
-
Page 11: Appearance
MITWELL KUBER-2000 Series User Manual - Preliminary 3.4 Appearance 3.4.1 KUBER-2110 Core interface with 2x USB3.0, 1x DisplayPort, 2xGiga LAN, Power connectors 3.4.2 KUBER-212A Expanded interface with 2x isolated LAN 1 x RS-232/422/485 (BIOS configurable, 5V & 12V selectable) 3.4.3 KUBER-212B Expanded interface with 4x GPIO, 1x CANBus, 2x Giga LAN Copyright ©... -
Page 12: Kuber-212D
MITWELL KUBER-2000 Series User Manual - Preliminary 3.4.4 KUBER-212D Expanded interface with 1 x 2-pin screw Terminal block (48VDC) 3 x 10/100/1000 GbE with PoE (15.4W) 3.4.5 KUBER-212E Expanded interface with 1 x RS-232 1 x RS-232/422/485 (BIOS Configurable) Copyright © MITWELL 2019... -
Page 13: Interface
DisplayPort (DP): These ports connect KUBER-2000 to external digital displays with a corresponding DP++ connector. 3.5.3 Ethernet KUBER-2000 series are equipped with Intel® i210 Gigabit LAN controller, which fully compliant with 10/100/1000 Base-T Ethernet network. Two RJ45 connectors allow the computer to communicate on a 10/100/1000 Base-T Gigabit LAN Ethernet network. -
Page 14: Led Indicator
MITWELL KUBER-2000 Series User Manual - Preliminary 3.5.4 LED indicator Two LEDs are provided on the KUBER-2000. These LEDs provide operating information. Function* Status Description Power ON Solid Green Power Power Off Flash Green Run Status (GPIO) *: Need to auto detection functionality while power applied 3.5.5 COM... -
Page 15: Power Terminal
MITWELL KUBER-2000 Series User Manual - Preliminary 3.5.6 Power terminal 2-pin screw-type terminal block is provided for connecting power to the KUBER-2000 Pin No. Description 0 V DC 12-30VDC (+/- 20%) 3.5.7 M.2 and mini PCI-e card slot Release the screw and disassemble the chassis of KUBER-2000, you can see the M.2 and miniPCI-e card slot on the main board/carrier board. -
Page 16: Dimensions
MITWELL KUBER-2000 Series User Manual - Preliminary 3.6 Dimensions All dimensions shown in mm (millimeters) 3.6.1 One layer Dimension: 99x 46x 92(mm) Front view Side view Copyright © MITWELL 2019 KUBER-2000 Series User Manual... -
Page 17: Two Layer
MITWELL KUBER-2000 Series User Manual - Preliminary Top view 3.6.2 Two layer Dimension: 99 x 63 x 92 (mm) Copyright © MITWELL 2019 KUBER-2000 Series User Manual... - Page 18 MITWELL KUBER-2000 Series User Manual - Preliminary Front view Side view Top view Copyright © MITWELL 2019 KUBER-2000 Series User Manual...
-
Page 19: System Installation
4 SYSTEM INSTALLATION KUBER-2000 support two types of mounting: wall mount bracket and DIN-rail mounting bracket. You can purchase mounting kit from MiTwell as an optional accessory. This chapter provide step-by-step mounting guide for the mounting options. Make sure to fasten the screw (M3 x 5L) with proper torque (5kgf-cm) by torque wrench on KUBER-2000. - Page 20 MITWELL KUBER-2000 Series User Manual - Preliminary 2. Use the correct anchor type for the mounting surface and securely attach the KUBER-2000 series IPC on the mounting surface (desk/wall). Ensure that the attaching hardware is in the small section of the keyholes.
-
Page 21: Din-Rail Mount
MITWELL KUBER-2000 Series User Manual - Preliminary 4.2 DIN-Rail mount Fasten the DIN-rail bracket by screws (M3 x 5L) on the KUBER-2000 Suitable for 35mm (W), 7.5mm(H) DIN-rail Install 1. Angle the KUBER-2000 IPC so the top edge of the mounting plate hangs on the top edge of the DIN rail. - Page 22 MITWELL KUBER-2000 Series User Manual - Preliminary 3. Press in until the latch snaps closed. Remove 4. Press to un-secure the device on the rail. 5. Release the latch and rotate the device away from the rail. Copyright © MITWELL 2019...
-
Page 23: Initial Setup
MITWELL KUBER-2000 Series User Manual - Preliminary 5 INITIAL SETUP 5.1 Chassis Grounding KUBER-2000 provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point to use 5.2 Connecting Power This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 10-30Vdc, 2A and Tma 50 degree C, if need further assistance, please contact us for further information. -
Page 24: External Antenna Installation
MITWELL KUBER-2000 Series User Manual - Preliminary 5.3 External Antenna installation Included with the installed card is an antenna (1) that attaches to a connector on the front of the unit (2). Since the KUBER-2000 is often installed within an enclosure, it may be advisable to install the antenna on the exterior of the enclosure with appropriate length antenna cable rather than directly to the IPC. -
Page 25: Maintenance
(ESD) according to EN 61340-5-1 and IEC 61340-5-1. The KUBER-2000 series can be disassembled and install the additional storage, Wifi module,…etc. by M.2 2242 slot and mini-PCIe slot. NOTE: Failure to ensure thermal pads are properly positioned may result in performance loss. - Page 26 MITWELL KUBER-2000 Series User Manual - Preliminary Remove the rear bracket(7). Pull out the bottom heat sink (8). Turn around the system, M.2 2230 wifi card can be installed on it. Finishing card’s installation, put the bottom heat sink back to the initial postion.
-
Page 27: 2242 And Mini Pci-E Card Installation
MITWELL KUBER-2000 Series User Manual - Preliminary 6.2 M.2 2242 and Mini PCI-e card installation NOTE: expansion card may various for different model, please check specification for each model. Remove 2 screws (1, 2) at the bottom of the front bracket. - Page 28 MITWELL KUBER-2000 Series User Manual - Preliminary Remove the rear bracket(7). Pull out the bottom heat sink (8). Turn around the system, you can find the miniPCI-e and M.2 2242 card slot can be installed on it. Finishing card’s installation, put the bottom heat sink back to the initial postion.
-
Page 29: Battery Change
Follow the same procedure to open the chasses of KUBER-2000. Change and replace the battery kit. You can purchase the battery kit from MiTwell, please check table of ordering information. Dispose of used batteries properly. Always adhere to currently valid national regulations for battery disposal. -
Page 30: Aappendix
MITWELL KUBER-2000 Series User Manual - Preliminary A APPENDIX A.1 Naming rule KUBER- 2 A B C – D G - E G KUBER- 2 A x x – x G - x G Sector A Processor Type Intel® Celeron® processor N3350 (0~50°C) Intel®... -
Page 31: System Ordering Information
MITWELL KUBER-2000 Series User Manual - Preliminary A.2 System ordering information KUBER-2000 series Model Name Part Number Description 1x 2-Pin terminal block 24VDC +/- 20% power input, 1x KUBER-2110-4G-32G AS7-3050 DP, 2x USB 3.0, 2x RJ-45, 1x M.2 2230 Key E... -
Page 32: Accessory Ordering Information
MITWELL KUBER-2000 Series User Manual - Preliminary A.3 Accessory ordering information Accessory Model Name Part Number Description Battery kit B3600250 CMOS Battery kit Power adaptor APH-8000 60W Power Adapter, 24V/2.5A , with 2pin connector Wall mount bracket B787J130 Wall mount bracket... - Page 33 MITWELL KUBER-2000 Series User Manual - Preliminary CSI0_CK- CSI1_RX1+ CSI1_RX1- CSI0_RX0+ CSI0_RX0- CSI1_RX2+ CSI1_RX2- CSI0_RX1+ CSI0_RX1- CSI1_RX3+ CSI1_RX3- Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay Co-Lay No Connect...
- Page 34 MITWELL KUBER-2000 Series User Manual - Preliminary SPI0_DO CMOS 1.8V LFRAME_N CMOS 3.3V SATA_TX+ I2C_GP_CK CMOS 1.8V SATA_TX- I2C_GP_DAT CMOS 1.8V HDA_SYNC / I2S2_LRCK CMOS 1.8V SATA_RX+ HDA_SDO / I2S2_SDOUT CMOS 1.8V SATA_RX- HDA_SDI / I2S2_SDIN CMOS 1.8V HDA_CK / I2S2_CK CMOS 1.8V...
- Page 35 MITWELL KUBER-2000 Series User Manual - Preliminary PCIE_C_TX- PCIE_A_REFCK+ PCIE_A_REFCK- No Connect No Connect PCIE_A_RX+ PCIE_A_RX- No Connect No Connect PCIE_A_TX+ PCIE_A_TX- No Connect No Connect HDMI_D2+ / DP1_LANE0+ HDMI_D2- / DP1_LANE0- No Connect No Connect HDMI_D1+ / No Connect...
- Page 36 MITWELL KUBER-2000 Series User Manual - Preliminary P111 GPIO3 / CAM1_RST# CMOS 1.8V S111 LVDS1_0+ / eDP1_TX0+ / DSI1_D0+ P112 GPIO4 / HDA_RST# CMOS 1.8V S112 LVDS1_0- / eDP1_TX0- / DSI1_D0- P113 GPIO5 / PWM_OUT CMOS 1.8V S113 No Connect...
- Page 37 MITWELL KUBER-2000 Series User Manual - Preliminary DSI0_CLK+ P135 SER1_RX CMOS 1.8V S135 LVDS0_CK- / eDP0_AUX- / DSI0_CLK- P136 SER2_TX CMOS 1.8V S136 P137 SER2_RX CMOS 1.8V S137 LVDS0_3+ / eDP0_TX3+ / DSI0_D3+ P138 SER2_RTS# CMOS 1.8V S138 LVDS0_3- / eDP0_TX3- /...
