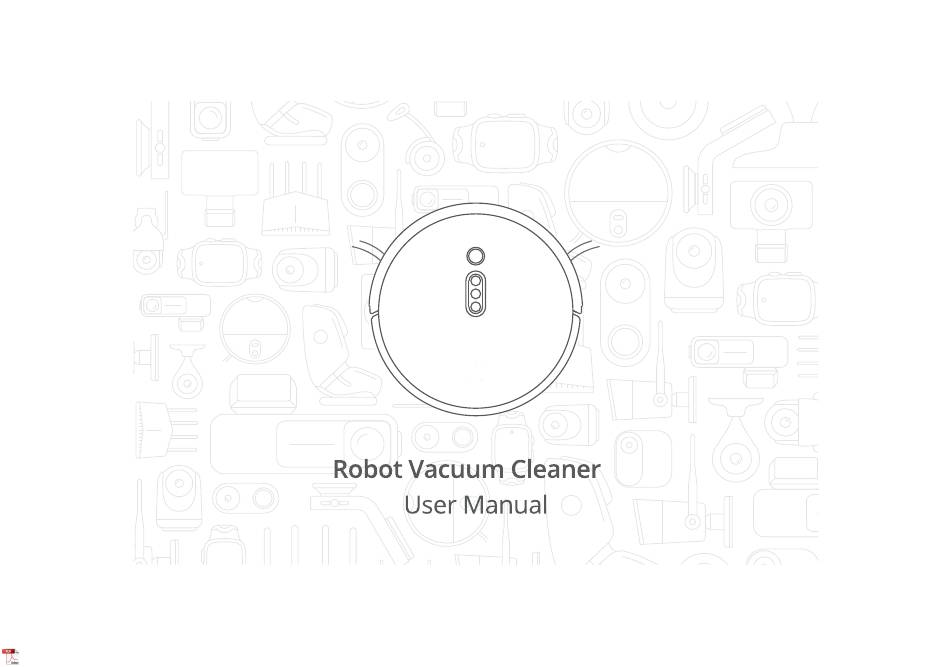

- Page 2 Robot vacuum cleaner Important Safety Instructions WARNING: TO REDUCE THE RISK OF INJURY OR DAMAGE, READ THE FOLLOWING SAFETY PRECAUTIONS WHEN SETTING UP, USING AND MAINTAINING YOUR ROBOT. • CAUTION This product is designed for indoor floor cleaning only, do not use it outdoors(such as on an open-ended terrace), on any surface other than the ground(such as a sofa), or in any commercial or industrial environment.
-
Page 3: Important Safety Instructions
Important Safety Instructions Battery and Charging Do not charge non-rechargeable batteries. For the purposes of recharging the battery, only use the detachable supply unit 360 robot provided with this product. Do not dismantle, repair or modify the battery or charging dock. Keep the charging dock away from heat(such as heating vents). -
Page 4: Product Introduction
Product Introduction Robot vacuum Charging dock Adapter Dust bin Electrical Remote cleaner water tank control AAA Battery Cleaning HEPA filter Mop cloth Side brushes User manual for remote control x2 tool... -
Page 5: Top View
Product Introduction Top view Docking station Visual camera Power/Auto cleaning Power indicator Hotspot AP distribution network Spot cleaning Smart distribution network Recharge Anti-collision bumper Speaker Power switch Dust bin Charging contacts Bottom view Cliff sensor Charging metal Contact piece Charging metal contact piece Omnidirectional wheel... -
Page 6: Remote Control
Product Introduction Remote control Dust bin Auto cleaning Recharge button Primary filter On/Pause button Direction forward Left direction Right direction Sponge filter HEPA filter Dust bin cover Spot cleaning Edge cleaning Seek the robot Dust bin button Water flow control Suction power Dust bin block slice Dust bin unit... - Page 7 Installation Using the robot 1. Remove the EVA foam on each side. 3. Turn the robot over to install the side brushes. Install the side brushes 2. Place the charging dock against the wall on a flat Install the side brushes on both sides of the roller at the bottom of the main unit. Pick surface and plug it into the power socket.
- Page 8 Installation Using the robot 4. Power and charge 6. Water tank 1. Auto: After cleaning, the robot will automatically return to the charging dock to charge. 1. Open the water tank, 2. Install the mop cloth. fill it with water, and close it tightly. 2.
-
Page 9: Auto Cleaning
Instructions for use Auto Cleaning Edge Cleaning The robot defaults auto cleaning mode after power on. Zig-zag cleaning. The robot cleans around the wall edge. Spot Cleaning Applicable for garbage concentrated area. The robot cleans in a spiral shaped Schedule Cleaning in designated area. -
Page 10: App Instruction
App Instruction Download the mobile phone App :Search for "Botslab" in Google Play or App Store and download it. :Scan the QR code below by using mobile phone camera or any QR code Method 1 Method 2 scanner App to download the Botslab App. Botslab Note: Please check out further operation instructions in "My - My Service"... -
Page 11: Side Brush Cleaning
Maintenance Dust bin and filter cleaning Main brush assembling and cleaning It is recommended to clean the dust bin and filter in time. A. Pull out the dust bin by pressing the button on the back of robot. Side brush cleaning B. -
Page 12: Maintenance
Maintenance Specifications Omnidirectional wheel cleaning Main unit 1. Turn the robot over. 2. Pull out the wheel upwards. Name 3. Reinstall after cleaning and press firmly. 4. Rinse the axle and the wheel with water to remove any hair and dirt. Dimensions 320*320*76mm 5. -
Page 13: Troubleshooting
Troubleshooting Error Solution The main brush is tangled up Please clean the roller brush The side brush is tangled up Please clean the side brush A wheel is abnormal and the robot jammed Please check the driving wheels The dust bin abnormal installation Please install the dust bin Abnormal cliff sensor / dirty cliff sensor Please wipe the cliff sensors... -
Page 14: Information On Disposal And Recycling
FAQs Problem Solution There are too many obstacles near the charging dock. Move it to an open area. Difficult to recharge The robot is too far from the charging dock. Place it closer and retry. It is recommended to clean up the ground debris first. Poor cleaning ability If there is a part missing to clean, the robot will automatically schedule to clean it. -
Page 15: Product Parameter
Product parameter Name and content of hazardous substances in the product Parts Name Circuit Metal Parts Plastic Casing Battery Other Parts This form is compiled in accordance with the regulations of S J/T 11364. Means that the content of the hazardous substance in all homogeneous materials of the part is below the limit requirement specified in GB/T 26572.
