Models:
RBC-12-NG & RBC-24-NG
Page 2 of 4
Both the 12V and 24V model are load activated and cannot be tested without load. At no load,
be measured with a voltmeter or test light.
2. Determine a suitable mounting location inside the cabin
4. Using a suitable drill bit, drill holes in the marked locations
5. Secure the brake controller in position with self-tapping screws. Take care to not strip the holes by
over-tightening the screws
6. Drill a hole for the 8.5mm remote control shaft in a suitably sized mounting panel in the dash with a wall thickness of less than 4mm
pressure with the indicator facing the minimum position
8. Plug the remote control lead into the brake controller
9. Connect brake wiring as per wiring instructions and follow Set-up and Operation procedures

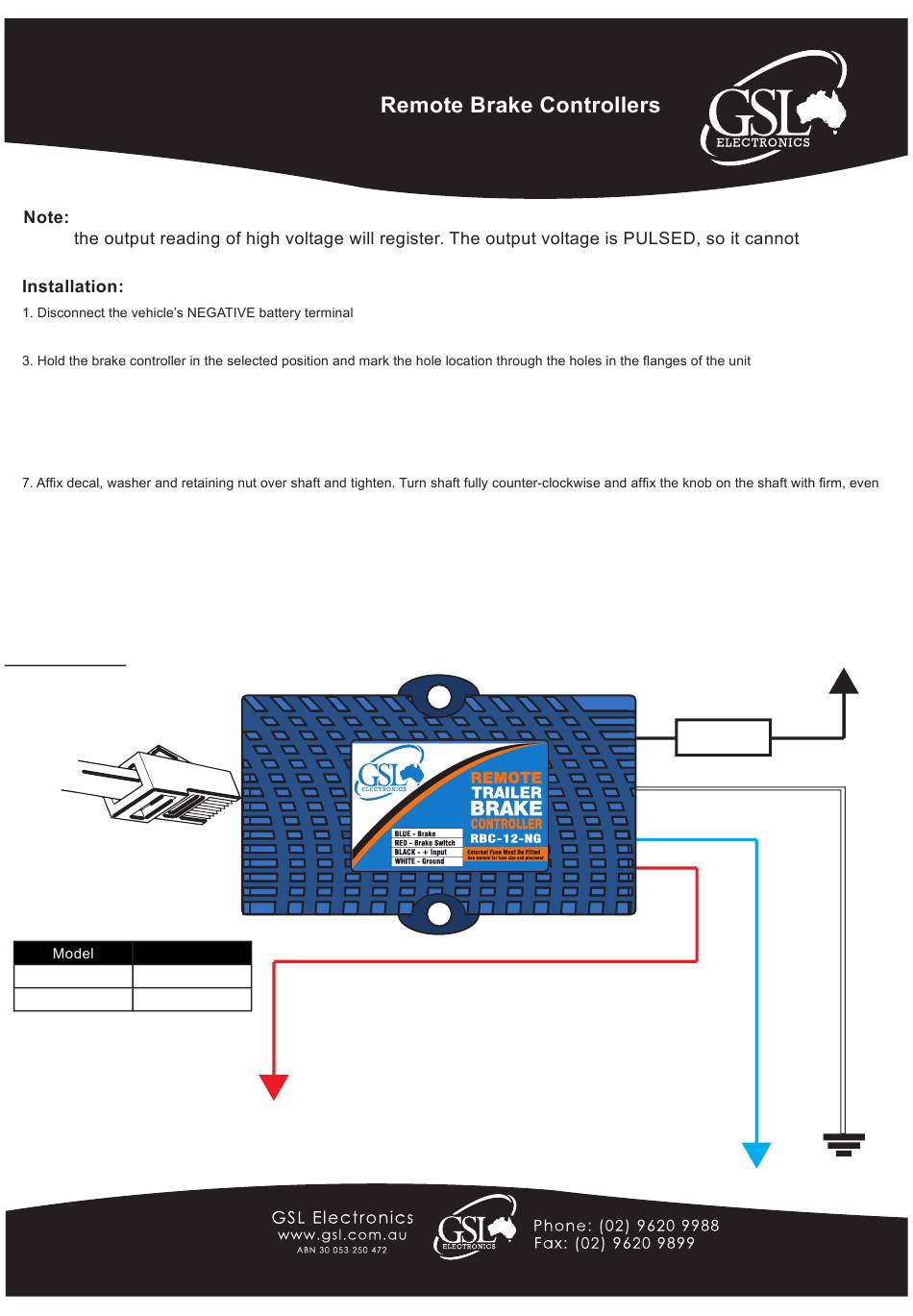

Wiring Diagram

To Remote Control
Fuse
RBC-12-NG
20A
RBC-24-NG
15A
Page 2 of 4
Installation & Operating Instructions
Please read these instructions before use
To Vehicle Brake Switch (Cold Side)
Or source that is pure DC when vehicle brake lights are on.
Note: Only Activated by Positive feed.
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia
More information https://www.caravansplus.com.au
To Positive Voltage Feed
i.e Battery Positive
FUSE
Fuse must be fitted (Not Supplied)
BLUE
RED
To Trailer Brake Coils.
BLACK
WHITE
Earth
RBCNG-R2
