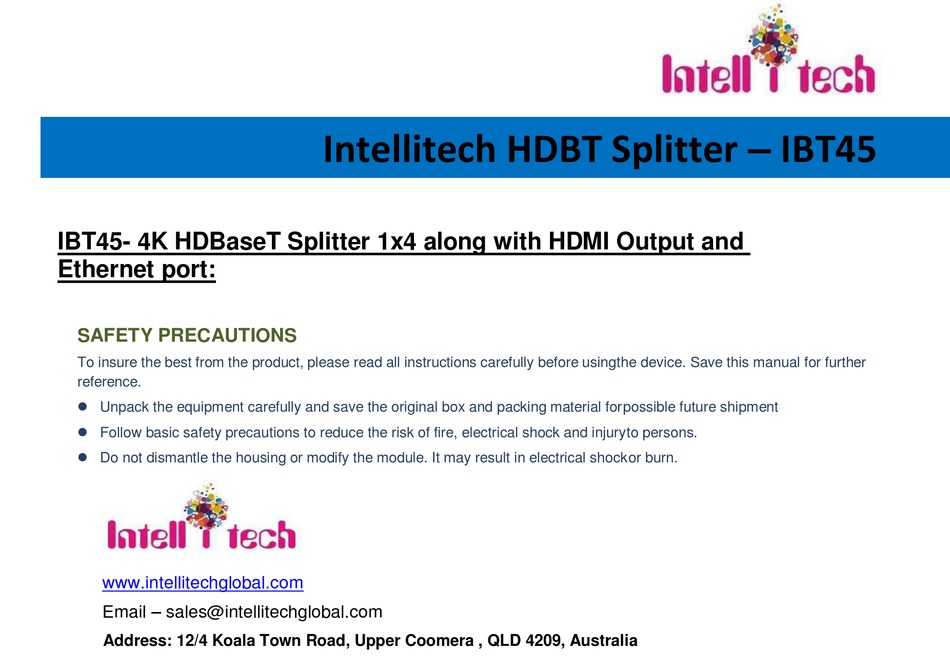

IBT45- 4K HDBaseT Splitter 1x4 along with HDMI Output and
Ethernet port:
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further
reference.
 Unpack the equipment carefully and save the original box and packing material for possible future shipment
 Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
 Do not dismantle the housing or modify the module. It may result in electrical shock or burn.
www.intellitechglobal.com
Email – sales@intellitechglobal.com
Address: 12/4 Koala Town Road, Upper Coomera , QLD 4209, Australia
Intellitech HDBT Splitter – IBT45

Advertisement

loading

Summary of Contents for IntelliTech IBT45

  • Page 1 Intellitech HDBT Splitter – IBT45 IBT45- 4K HDBaseT Splitter 1x4 along with HDMI Output and Ethernet port: SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.
  • Page 2  Using supplies or parts not meeting the products’ specifications may cause damage, deterioration or malfunction.  Refer all servicing to qualified service personnel.  To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water. ...
  • Page 3 Introduction to IBT45 INTELLITECH – IBT45 is an HDBT Splitter accepting 1 HDMI input and distributing to 4 HDBT outputs, plus 1 HDMI local output along with Ethernet port. Ethernet port provides single LAN connection with all connected devices. The HDMI output socket can be used to monitor local devices or cascade with additional splitter.
  • Page 4  Provide LAN connectivity to its compatible receivers  Support EDID configuration, 5 types in total  Support cascading via HDMI OUT, IR Loop and RS232 Loop www.intellitechglobal.com Email – sales@intellitechglobal.com Address: 12/4 Koala Town Road, Upper Coomera , QLD 4209, Australia...

  • Page 5: System Connection

    3) All devices should be connected before power on. 1.2 Connection Procedure Step1. Connect a HDMI source device (e.g. Blue-ray DVD) to the HDMI INPUT socket of IBT45 with HDMI cable. Step2. Connect a HDMI display to HDMI OUTPUT socket of IBT45 with HDMI cable.
  • Page 6 IBT45 and HDMI Twisted Pair PoC Receiver(s). If you want to cascade IR signal among several IBT45, connect the IR LOOP socket of one of them and the IR IN socket of the next until all IBT45 have been connected.
  • Page 7 Cascade through IR Loop Connect the IR LOOP socket of the first IBT45 and the IR IN socket of the next until all IBT45 have been connected. Sending IR signals to the IR Receiver connected to the first IBT45 will control all cascaded IBT45.

  • Page 8: Control Modes

    Note: Every pin in pure color groups with its half white pin. 2. Control Modes IBT45 has a good application in various occasions, such as computer realm, monitoring, conference room, big screen displaying, television education, command & control center and smart home etc.
  • Page 9 2.1 IR Control IBT45 provides with an IR IN port, the port support bi-directional transmission. Connect an IR receiver to the IR IN port, users can control IBT45/ far-end device from local or control local devices from remote via corresponding IR remote.
