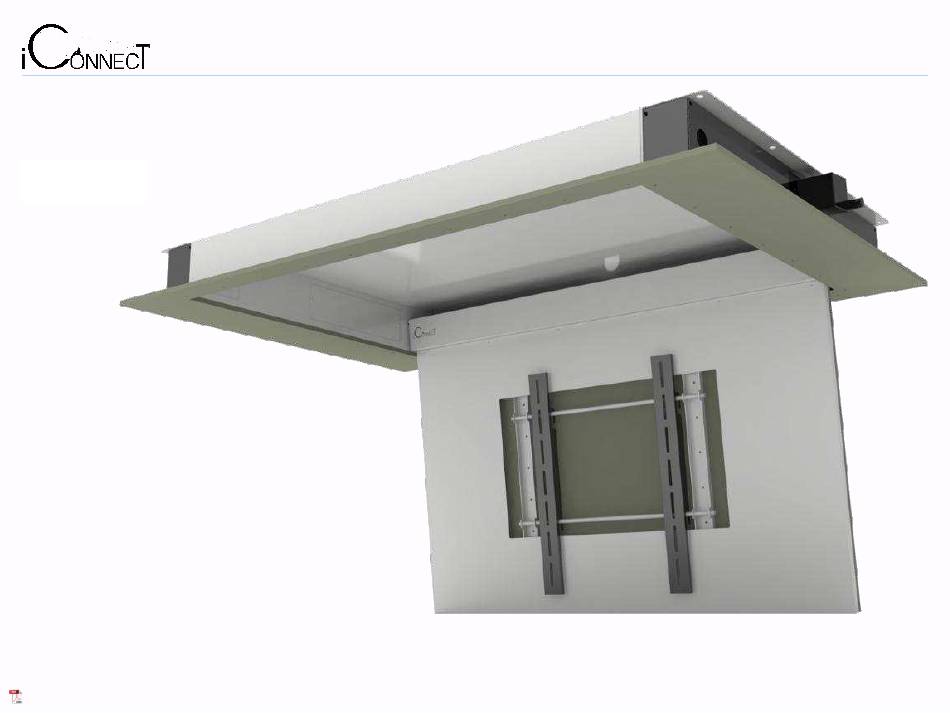

- Page 1 INSTALLATION INSTRUCTIONS Fold Down Ceiling Tv Lift TVL-RH Thank you for buying iConnect products. The TVL-RH is the latest technology in fold down ceiling Tv lifts. Please read this manual carefully before assembling.
- Page 2 Contents iConnect MAIN CONTENTS SAFETY OVERVIEW REMOTE CONTROL POWER SUPPLY LIFT INSTALLATION 7-12. FINISH 13-15.
- Page 3 Safety iConnect Fold down ceiling Tv lift TVL-RH must be installed by specialized personnel only. Before installing the Fold down ceiling Tv lift, please read the following instructions carefully 1. The Fold down ceiling Tv lift must be used indoors only.
- Page 4 Overview iConnect 4 Holes For Hanging Each Side Lift Frame Hidden Service Cover Service Button Green MDF wood for finish Wiring Cover Power Supply Lift Door Screen Adapters Remote Control...
-
Page 5: Remote Control
Remote Control iConnect Close Open Stop Lern Battery 27A 12V... -
Page 6: Power Supply
Power Supply iConnect 110/220V is selected by switch Before power on please check input voltage avoiding damage... - Page 7 Lift Installation iConnect .Mark 8 to 6 holes in the ceiling Ceiling drilled 8 holes diameter 10-12mm and install the lift to the desired height Make sure the lift is level and entrenched...
- Page 8 Lift Installation iConnect 110VAC 220VAC Open Connect the power supply to a power source 110v or 220v. Connect the main cable that runs from the opening round elevator power supply according described. Click the Open button on the remote control one time, and wait until the Lift door...
- Page 9 Lift Installation iConnect Cable cover Loosen the screws of the cable cover...
- Page 10 Lift Installation iConnect Move the wiring for the screen according to the description Close the cover back...
- Page 11 Lift Installation iConnect Dry Contact Red - Up Yellow - Down White - Stop Black - Com line represents the wiring for the TV screen Green line represents the wiring for 24V DC and dry contact command...
-
Page 12: Lift Installation
Lift Installation Lift Installation iConnect Install the TV screen display adapters Connect the wiring to the screen Mount the screen on the brackets lift door... - Page 13 Lift Installation iConnect Adjust the plaster ceiling wooden frame...
- Page 14 Lift Installation iConnect Polisher connections, painted the ceiling...
- Page 15 Lift Installation iConnect Enjoy your product...
