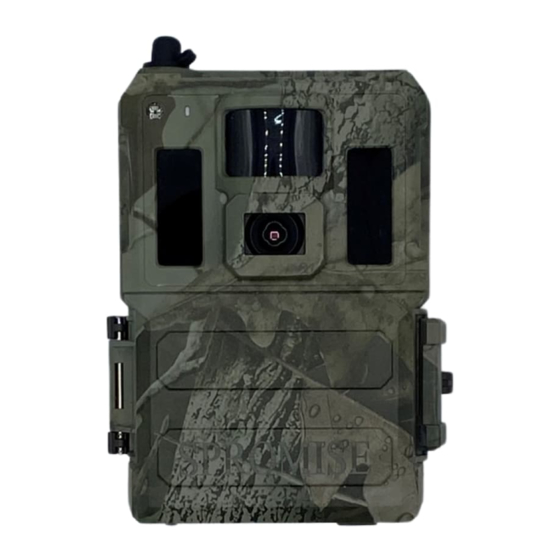

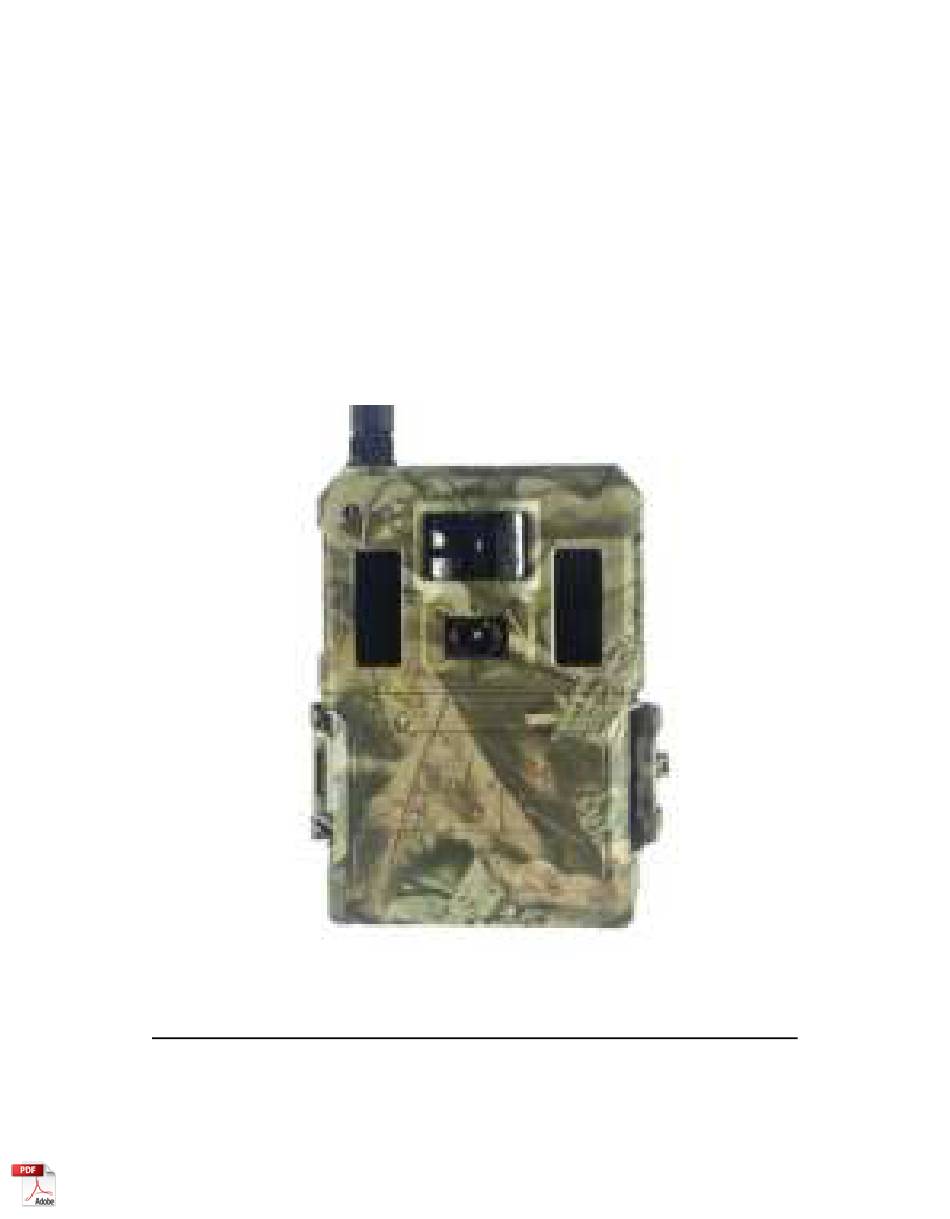

- Page 1 Trail Camera User’s Manual (for S688) V1.0 PLEASE READ CAREFULLY BEFORE USING CAMERA...
- Page 2 Package Contents Mounting Strap Trail Camera User’s Manual Antenna Camera Body and Ports Fresnel Infrared Lens Tripod Socket Front Cover Latch Mounting Bracket...
- Page 3 TF card slot( Micro SD) USB Port Nano SIM card slot 12V DC port Menu Button Playback Button ON/OFF Switch Battery compartments Eject Button Battery Bay A Battery Bay B...
- Page 4 Keys & Buttons MENU: Enter the program menu in preview mode ▲▼◄►: Move between the menu items and change the value o Save parameter settings in menu mode o Play videos in playback mode Playback button : In live preview window, switch between playback and preview mode ...
- Page 5 Quick Start Make sure the power switch is at OFF position. Load the batteries into the battery compartment according to the polarities indicated. Load a set of 12 (recommended), 6(emergency, battery bay A or B) AA batteries. Or connect external power supply to the camera by using the correct cable and external battery.
- Page 6 items. Press the ▲ or ▼ buttons to activate the submenu and edit different items. Press ◄► to change the value. Press the OK button to save. Navigate to the Wireless tab; scroll down to enter the submenus. Change the Send Mode to Instant. Leave the Send To on Phone mode if you are sending the MMS to a cell phone number.
- Page 7 17. Push the power switch to the OFF position to power off the camera. Please note that even in the OFF mode, the camera still consumes a small amount of battery power. Therefore, please remove the batteries if the camera is not in use for an extended time. Menu Settings Switch the camera to SETUP mode &...
- Page 8 Camera can be triggered by timer at a preset time interval. Please note that even Time Lapse in Time Lapse mode, the camera still can be triggered unless the Sensitivity set to off. The camera can be set to operate only at specific time period.
- Page 9 This option allows a 6 digits password to be Password set, keep it in mind. Recommend to use. ON /Off. Choose if the image stamp is to be Time Stamp shown or not. Overwrite Cycle writing the TF card. Beep Enable or disable key tone LED indicator Enable or disable blinking of indicator.
- Page 10 The text content of Image From will be Image From included in MMS/Email subject Turning the SMS command function always on or every n hours. On mode will increase Control the power consumption. Copy the current network parameter Copy Para settings to the TF card.
- Page 11 Press the Playback button playback button again to exit the playback mode. Delete Photo or Video Press Playback button to view the image (or video) which to be deleted. Press MENU button. Press LEFT or RIGHT to select Delete One or All, then OK to execute or MENU to Exit.
- Page 12 when dealer confirms it is ready. Email setting: Input the right SMTP server and port, choose SSL or non SSL type(default) email service type accordingly. Wireless image quality, normal resolution=640*480; high resolution=1280*960,original photo sending only available on 3G/4G models. Image From content will be included in MMS/email subject so the user will know where the image comes from.
- Page 13 GPS working flow chart Switch Position Camera Mode Camera Mode Coordinate Setup Working G-sensor Search GPS GPS function Triggered Coordinate don’t work Camera take photo Camera take photo GPS function don’t start Update coordinate Update coordinate Get GPS Coordinate Get GPS Coordinate Save GPS Coordinate Update it every 3 minutes...
- Page 14 Camera Tracker working flow chart Switch Position Camera Password and GPS Tracker coordinate must be on Password Anti-theft function don’t work Switch Anti-theft function position don’t start G-sensor Tiggered Camera take photo Search GPS Get GPS info, then save it and Not get GPS info,Send Send picture with new GPS info picture with old GPS info...
-
Page 15: Technical Specifications
Technical Specifications Picture Resolution 3MP/5MP/8MP/10MP/12MP/24MP Video Resolution WVGA@60fps 720P@60fps ,1080P@60fps , 1440p@30fps Trigger Time 0.4s(picture), 1-1.3s(video) Recovery Time 2s(picture) Lens FOV 110°wide angle (diagonal angle) Night Illumination Infra Red or No Glow 2.0” IPS LCD, 480*360 Display Screen Memory Card up to 32GB Trigger Motion (PIR) / Timer (Time Lapse)/SMS retrieve... - Page 16 SMS Command Code List(wireless camera only) Add Phone *100#number# Phone number added Delete Phone *101#number# Phone number deleted Add Email *110#email# Email added Delete Email *111#email# Email deleted Send Via MMS *120#0# Send via MMS Send Via Internet *120#1# Send via Internet Send To Phone *130#0# Send to phone...
- Page 17 *190#0# // choose 640*480 Choose the wireless *190# *190#1# // choose 1280*960 image size *190#2# // choose original photo Camera Mode Photo *200#0# Set to photo mode Camera Mode Video *200#1# Set to video mode Photo+Video mode *200#2# Set to Photo+Video mode *202#0# PIR sensitivity high Set PIR Level to High...
- Page 18 Enable status *209#1# With SMS alert info. response Check GPS *210# Show current GPS coordinate Coordinate Retrieve photo or Available at instant mode. Equal *500# video clips to a normal motion trigger. Set Debug Switch to *502#0# Debug Switch OFF Set Debug Switch to Logs saved automatically at on *502#1#...
- Page 19 Make sure no air condition, chimney or other heat resources in the camera’s field of view. Rising sun or sunset may trigger the PIR, pay attention to the camera orientation. If wireless camera stops sending, please check the balance of SIM card or data plan condition.
