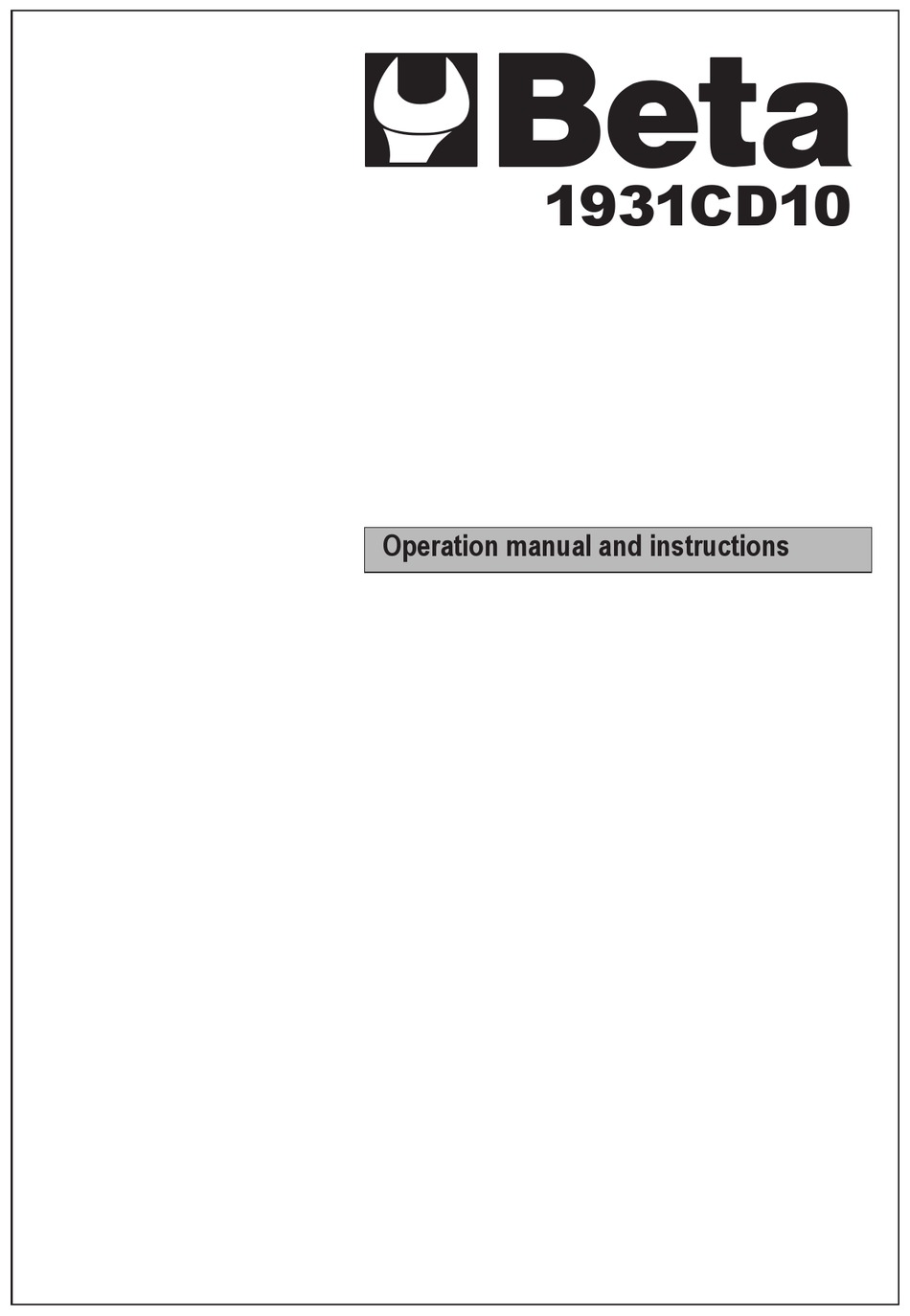

- Page 1 1931CD10 Operation manual and instructions...
- Page 3 OPERATION MANUAL AND INSTRUCTIONS ISTRUZIONI PER L’USO OPERATION MANUAL AND INSTRUCTIONS FOR AIR DRILLS MANUFACTURED BY: BETA UTENSILI S.P.A. Original documentation drawn up in ITALIAN. CAUTION IMPORTANT! READ THIS MANUAL THOROUGHLY BEFORE USING THE PNEUMATIC TOOL. FAILURE TO COMPLY WITH THE SAFETY STANDARDS AND OPERATING INSTRUCTIONS MAY RESULT IN SERIOUS INJURY.
- Page 4 OPERATION MANUAL AND INSTRUCTIONS ISTRUZIONI PER L’USO • Always use the following personal protective equipment: - Eye protection - Safety shoes - Hearing protection - Protective gloves against physical agents - Anti-vibration gloves, to be worn following a specially conducted survey of the daily exposure of the hand-arm system to vibration - Protective mask against physical agents according to the values found in the environmental/industrial hygiene survey. • Make sure you are in a safe position, keeping proper balance at all times. A safe working position and a proper body posture enable better control of the pneumatic tool in unexpected situations. • Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothing, jewellery, and long hair can get caught in moving parts. • Do not directly inhale the exhaust air, and prevent it from getting into your eyes. The exhaust air of the pneumatic tool can contain water, oil, metal particles and impurities, which may cause hazards. PNEUMATIC TOOL USE AND CARE • Use clamping devices or a vice to secure and support the workpiece. Holding the workpiece by hand or against your body will not allow for safe operation of the pneumatic tool. • Do not overload the pneumatic tool. Use the pneumatic tool intended for your work only. •...
- Page 5 OPERATION MANUAL AND INSTRUCTIONS ISTRUZIONI PER L’USO comfortable posture, and avoid awkward or off-balanced postures, or change posture to help avoid discomfort and fatigue. Caution: If the pneumatic tool is used over a protracted period of time, part of the tool and the cutting tool may become hot. Wear protective gloves. Dust and fumes hazards: Depending on the type of material being worked, the fumes generated while operating the pneumatic tool can cause diseases in humans. An appropriate environmental hygiene survey is required to determine the type and degree of protection of the personal protective equipment to use for the respiratory tract. Using the pneumatic tool on the workpiece generates noise, which may prove harmful to the exposed personnel. A proper phonometric survey is required to determine the personal hearing protective equipment (hearing protection) to use. If a specially conducted survey suggests that the daily exposure to vibration generated from the pneumatic tool exceeds the limit value under the regulations in force in the respective country, anti-vibration gloves must be worn. • If you notice that the skin of your fingers becomes numb, turns white, tingles or hurts, stop working with the pneumatic tool, inform your employer and seek medical advice. • Do not make the drill bit jump on the workpiece: this may result in significantly increased vibration. • Hold the pneumatic tool with a not too firm yet secure grip, compliant with the required hand reaction forces. • Never carry the pneumatic tool by the hose. PERSONAL PROTECTIVE EQUIPMENT TO WEAR WHILE OPERATING PNEUMATIC TOOL Failure to observe the following warnings may result in physical injury and/or disease. ALWAYS WEAR HEARING PROTECTION WHILE OPERATING PNEUMATIC TOOL ALWAYS WEAR EYE PROTECTION WHILE OPERATING PNEUMATIC TOOL OR PERFORMING MAINTENANCE JOBS ALWAYS WEAR PROTECTIVE GLOVES AGAINST PHYSICAL AGENTS WHILE...
- Page 6 • Manually lock the rear nut of the chuck (picture 5-e). • Manually rotate the front nut anticlockwise (picture 5-d), and open the chuck until the drill bit fits in. • Fit in the required drill bit. • Manually rotate the front nut clockwise, until the chuck is locked. Replace the drill bit as follows: • Manually lock the rear nut of the chuck. • Manually rotate the front nut anticlockwise, to release the drill bit from the chuck. • Fit in the required drill bit and manually rotate the front nut clockwise, until the chuck is locked. Always disconnect air supply before fitting in cutting tools or making adjustments; this precaution will prevent the pneumatic tool from being accidentally started. Lubrication The pneumatic tool must be connected to a filter-lubricator unit (we recommend Beta item 1919F1/4) provided with an air-oil microfog mixer, set at two drops per minute. This will result in a high-performing tool and wear-resistant mechanical parts.
- Page 7 The pneumatic tool, accessories and packaging should be sent to a waste disposal centre, in accordance with the laws in force in your country. WARRANTY This tool is manufactured and tested in accordance with current EU regulations, and is covered by a 12-month warranty for professional use or a 24-month warranty for nonprofessional use. We will repair any breakdowns caused by material or manufacturing defects by fixing the defective pieces or replacing them at our discretion. Should assistance be required once or several times during the warranty period, the expiry date of this warranty will remain unchanged. This warranty will not cover defects due to wear, misuse or breakdowns caused by blows and/or falls. In addition, this warranty will no longer be valid if any changes are made, or if the pneumatic tool is forced or sent to the customer service in pieces. This warranty explicitly excludes any damage to people and/or things, whether direct or consequential. ___________________________________________________________________________________________________ DECLARATION OF CONFORMITY We hereby declare, assuming full responsibility, that the described product complies with all the relevant provisions of Machine Directive 2006/42/EC and amendments thereto, as well as with the following standard: • EN ISO 11148-3 When it comes to quality air tools & compressors, Beta Tools is the brand you can depend on.
