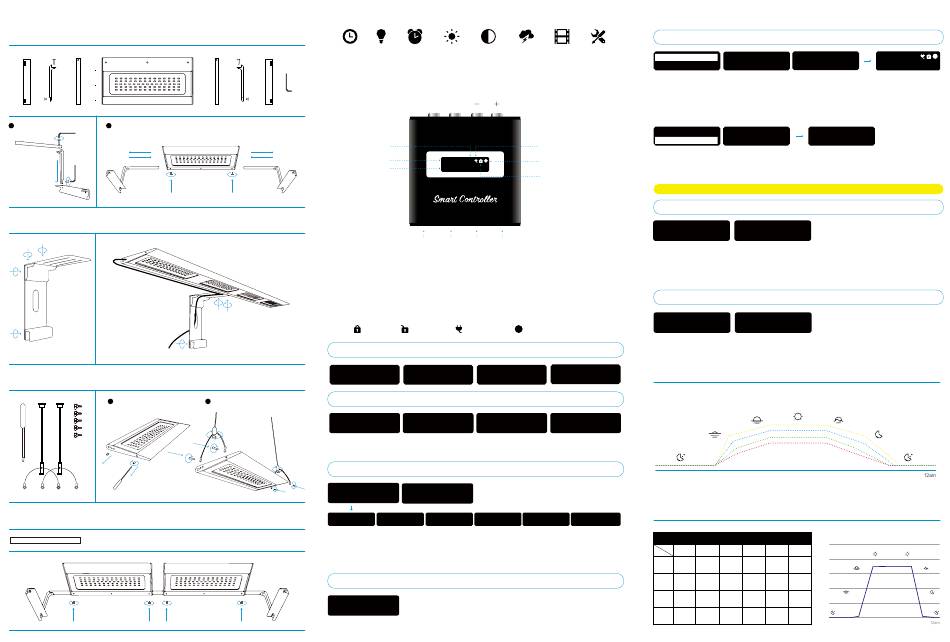

AQUAMAXX PRISM II Quick Start Manual page 2

How to install the Bracket. (Standard)
1 2
How to install the Pro Stand. (Optional)
How to install the Hanging Kits. (Optional)
1
How to connect two PRISM II. (Optional)
IMOS 4.0 Smart Controller
Mode
Clock
Intensity
Special Function 1: Press and hold "OK" for 3 seconds, while the unit is locked,
Special Function 2: Press and hold "BACK" for 3 seconds to unlock or lock the controller.
Special Function 3: Press and hold "OK" + "BACK" together to change the Receiver Mode.
Note: "A" = Auto Mode, "M" = Manual Mode, "A:100%" = Intensity for each Channels
" " = Locked, "
Smart Controller Menu Overview
Quick Set
Auto Mode
Quick Set
2
SPS - 20K
LPS - 15K
There are 7 presents available to quickly setup your light. You may customize up to 3 presets with
your own custom settings.
Auto Mode
CH-A CH-B
ALL
CH-C
Dawn 08:00 AM Sunrise
Intensity 000% Intensity
Channels A, B, C and D have 6 time points and the intensity can be adjusted for each channel.
Note: If you select "ALL", then all the channels will be overwritten with the new settings.
DEMO: The DEMO mode will run the current light settings in a 1 minute demonstration.
Save Settings: You can save your current settings to any of the 3 customized presets.
Manual Mode
A:100%
B:100%
ALL
C:100%
The Manual Mode will allow you to set the intensity from 1 to 100% for all or each individual channels.
OK BACK
Expand
AM 11：22 A Signal Channel
1
A:100% B:100%
System Lock
Antenna INPUT Output Output
2.4G DC12~36V LED Expand
to toggle between Auto & Manual Mode.
" = Unlocked, " " = Expand ON, " 1 " = Channel Signal.
Settings
Manual Mode Receiver
Broadcaster Expand
Red Planted Refugium
Mixed Reef
Mixed Planted DIY 1
Green Planted
Demo
Save Settings
10:00 AM Midday 12:00 PM Sunset 03:00 PM Dark 06:00 PM
080% Intensity 100% Intensity 100% Intensity 080%
Linkage Mode (Broadcaster - Receiver)
Signal
Broadcaster
Receiver Pairing
Broadcaster (Parent): When linking multiple units, assign one controller as the Broadcaster which
will become the primary unit.
Signal: Select a channel. Up to 9 channels can be selected and paired with multiple units to the
same channel number
Note: Enabling the Broadcaster will display the channel signal number on the home screen.
Pairing Mode
Broadcaster
Receiver Pairing...
Receiver (Child): Switch controller to receiver mode to set additional units that will connect to the
primary Broadcaster unit.
Signal: The controller's home screen will only show the "Receiver" and the paired channel number.
Note: The 2.4G antenna signal covers up to 16 square feet (5 square meters) and may not be able to penetrate walls.
Expand
Enable YES
Start Time
Power 100% End Time
The Expand option (Plug icon) adds more flexibility to adapt with additional devices such as pumps,
fans, valves etc..
The timers in the expand mode can turn ON/OFF, adjust the power to the speed of the fan, the
intensity for the lights or power for the valve.
Settings
Set Clock
24 HOUR
Languages Factory Reset
Set Clock: Set the controller to your local time
Languages: Two languages are available in "English" or "Chinese"
24 HOUR: You can toggle between 24 HOUR or AM/PM mode
Factory Reset: Reset all settings to factory default settings.
24 Hours Lighting Cycle Overview
Sunrise
Dawn
Night
00am 05am 09am
The smart controller gradually ramps the light intensity between the set points
The graph below outlines how the LEDs will ramp up and down between the settings.
Night 08:00 PM
Intensity 000%
Default Settings
Dawn Sunrise Midday Sunset
0% 1% 75% 75%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM
0% 1% 75% 75%
Channel B
@ 6:00AM @ 7:00 AM @ 12:00 PM @ 5:00 PM
0% 1% 75% 75%
Channel C
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM
0% 1% 75% 75%
Channel D
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM
AM 11：22 A
CH 1 1
Pairing...
YES A:100% B:100%
Receiver
Pairied CH 1
08:00 AM
08:00 PM
Midday
Sunset
Dusk
Night
12pm 03pm 08pm
100
Dusk Night
80
1% 0%
@ 8:00 PM @ 10:00 PM
60
1% 0%
@ 8:00 PM @ 10:00 PM
40
1% 0%
20
@ 8:00 PM @ 10:00 PM
1% 0%
0
@ 8:00 PM @ 10:00 PM
00am 06am 12pm 03pm 07pm
