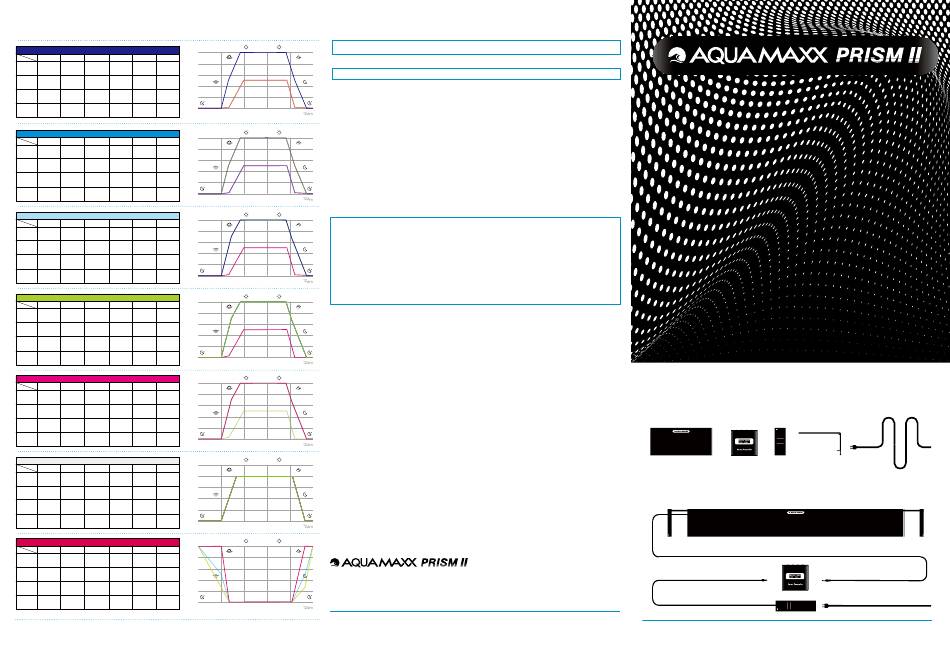

AQUAMAXX PRISM II Quick Start Manual

Preset (Quick Set)
SPS 20K - Heavy Blue
100
Dawn Sunrise Midday Sunset Dusk Night
80
0% 1% 50% 50% 1% 0%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
60
0% 50% 100% 100% 50% 0%
Channel B
@ 6:00AM @ 7:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
40
0% 50% 100% 100% 50% 0%
Channel C 20
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
0
0% 1% 50% 50% 1% 0%
Channel D
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
LPS 15K -White + Blue
100
Dawn Sunrise Midday Sunset Dusk Night
80
0% 50% 100% 100% 50% 0%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
60
0% 50% 100% 100% 50% 0%
Channel B
@ 6:00AM @ 7:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
40
0% 1% 50% 50% 1% 0%
Channel C
20
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
0
0% 1% 50% 1% 0%
50%
Channel D
@ 6:00AM @ 8:00 AM @ 5:00 PM @ 8:00 PM @ 10:00 PM
@ 12:00 PM
Mixed Reef - 10K White + Blue
100
Dawn Sunrise Midday Sunset Dusk Night
80
0% 50% 100% 75% 50% 0%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
60
0% 50% 100% 75% 50% 0%
Channel B
@ 6:00AM @ 7:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
40
0% 50% 100% 75% 50% 0%
Channel C
20
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
0
0% 1% 50% 1% 0%
50%
Channel D
@ 6:00AM @ 8:00 AM @ 5:00 PM @ 8:00 PM @ 10:00 PM
@ 12:00 PM
Green Planted - WRGB
100
Dawn Sunrise Midday Sunset Dusk Night
80
0% 100% 100% 100% 100% 0%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
60
0% 10% 10% 10% 10% 0%
Channel B
@ 6:00AM @ 7:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
40
0% 100% 100% 100% 100% 0%
Channel C
20
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
0
0% 10% 10% 10% 0%
10%
Channel D
@ 6:00AM @ 8:00 AM @ 5:00 PM @ 8:00 PM @ 10:00 PM
@ 12:00 PM
Red Planted - WRGB
100
Dawn Sunrise Midday Sunset Dusk Night
80
0% 90% 90% 90% 90% 0%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
60
0% 80% 80% 80% 80% 0%
Channel B
@ 6:00AM @ 7:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
40
0% 20% 20% 20% 20% 0%
Channel C
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM 20
0
0% 100% 100% 100% 0%
100%
Channel D
@ 6:00AM @ 8:00 AM @ 5:00 PM @ 8:00 PM @ 10:00 PM
@ 12:00 PM
Mixed Planted - WRGB
100
Dawn Sunrise Midday Sunset Dusk Night
80
0% 80% 80% 80% 80% 0%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
60
0% 0%
80% 80% 80% 80%
Channel B
@ 6:00AM @ 10:00 PM
@ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM
40
0% 80% 80% 80% 80% 0%
Channel C
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM 20
0
0% 80% 80% 80% 80% 0%
Channel D
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 5:00 PM @ 8:00 PM @ 10:00 PM
Refugium Planted - WRGB
100
Dawn Sunrise Midday Sunset Dusk Night
80
25% 0% 0% 0% 25% 100%
Channel A
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 8:00 PM @ 10:00 PM @ 00:00 AM
60
50% 0% 0% 0% 50% 100%
Channel B
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 8:00 PM @ 10:00 PM @ 00:00 AM
40
25% 0% 0% 0% 50% 100%
Channel C
20
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 8:00 PM @ 10:00 PM @ 00:00 AM
0
100% 0% 0% 0% 100% 100%
Channel D
@ 6:00AM @ 8:00 AM @ 12:00 PM @ 8:00 PM @ 10:00 PM @ 00:00 AM
Information
WARNING: Do not submerge the light fixture or smart controller in any water as it will cause damage.
Important Handling Information
NOTICE: Failure to follow these handling instructions could result in damage to your PRISM II or other property.
Before moving your light fixture, turn off the unit and disconnect from the power outlet. When connecting the power
supply, gently insert the connector plug as excessive force may cause damage. Never place the power supply or power
cord in water. When setting up your new PRISM light fixture, please make sure to position the power supply where it will
not be exposed to any water or moisture.
00am 06am 12pm 03pm 07pm
Always use a "drip loop" on the power cord before plugging into the wall outlet or power strip. Drip loops should always
be used with electrical devices and cords near water. If the plug or outlet gets wet, DO NOT TOUCH the cords and turn
off the power to the outlet to avoid electrical shock.
Storing your PRISM. If you are planning to store your light fixture for an extended period, place the unit in a cool area,
ideally 71° F or 22° C. When cleaning the exterior of your light fixture, turn off the unit and unplug the power cord. Use a
lightly damp, soft lint-free cloth to clean the unit. Avoid getting any moisture in any of the opening. Do not spray liquids
directly on the light. Do not use aerosol sprays, solvents, or abrasives that might damage the finish.
AQUAMAXX and the Environment
00am 06am 12pm 03pm 07pm
AQUAMAXX recognizes its responsibility to minimize the environmental impact of its operations and products.
Warranty
AquaMaxx warrants all AquaMaxx products to be free from manufacturing defects for one year from the original
purchase date when purchased through an authorized AquaMaxx retailer. This warranty does not cover any damages
caused by misuse, neglect, alterations or improper handling / transport / maintenance / installation. Physical damages
are not covered by warranty. AquaMaxx does not cover personal injury, personal loss, or other damages associated
with the use of our products. In order to request warranty service, please email us at info@aquamaxxaquariums.com.
A purchase receipt is required for any warranty service. Products requiring warranty service must be returned to
AquaMaxx. You are responsible for the cost of shipping a warranty claim to AquaMaxx and any damages that may
00am 06am 12pm 03pm 07pm
occur during transit. Once a returned product has been inspected, it will be repzed or exchanged at our discretion
and returned to you. International and/or expedited shipping are not covered under your AquaMaxx warranty.
00am 06am 12pm 03pm 07pm
00am 06am 12pm 03pm 07pm
00am 06am 12pm 03pm 07pm
http://aquamaxxaquariums.com
http://aquamaxxaquariums.com/lighting/prism
Visit AquaMaxxAquariums.com/Lighting/PRISMII for more information.
00am 06am 12pm 03pm 07pm
Congratulations on purchasing your new PRISM II LED light fixture.
Please follow these instructions to get started on setting up your new light.
PRISM II Overview
PRISM II Smart Controller Power Supply Super Bracket
Getting Started
AC cord
