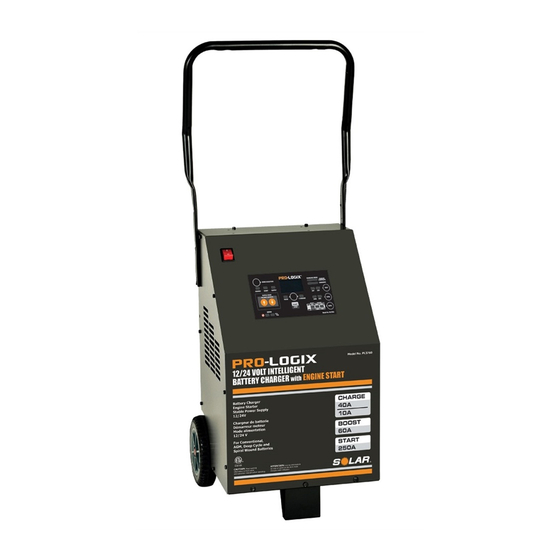

SOLAR PL3760
Operator's Manual
Read these instructions completely before using the SOLAR Battery Charger and save them for
future reference. Before using the SOLAR Battery Charger to charge a battery, read these
instructions and the instruction manual/safety information provided by the car, truck, boat or
equipment manufacturer. Following all manufacturers' instructions and safety procedures will
reduce the risk of accident.
Working around lead-acid batteries may be dangerous. Lead-acid batteries release explosive gases
during normal operation, charging and jump starting. Carefully read and follow these instructions for
safe use. Always follow the specific instructions in this manual and on the SOLAR Battery Charger
each time you use the SOLAR Battery Charger.
All lead-acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in
the presence of fire or sparks. Do not smoke, use matches or a cigarette lighter while near
batteries. Do not handle the battery while wearing vinyl clothing because static electricity sparks
are generated when vinyl clothing is rubbed. Review all cautionary material on the SOLAR Battery
Charger and in the engine compartment.
Always wear eye protection, appropriate protective clothing and other safety equipment when
working near lead-acid batteries. Do not touch eyes while working on or around lead-acid batteries.
Always store clamps away from each other or common conductors. Improper storage of clamps
may cause the clamps to come in contact with each other, or a common conductor, which would
be hazardous if the charger was plugged into an AC outlet.
Use extreme care while working within the engine compartment, because moving parts may cause
severe injury. Read and follow all safety instructions published in the vehicle's Owner's Manual.
Batteries being charged with the SOLAR Battery Charger unit likely contain liquid acids which are
hazardous if spilled.
Includes information on SOLAR Model No. PL3760
WARNING
Failure to follow instructions may cause
damage or explosion, always shield eyes.
Read entire instruction manual before use.
WARNING
Part No. 141-396-000
Warning: This product can expose you to chemicals,
including Vinyl-Chloride, Styrene and Acrylonitrile, which
are known to the State of California to cause cancer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLAR PL3760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pro-Logix SOLAR PL3760

  • Page 1 SOLAR PL3760 Operator’s Manual WARNING Read these instructions completely before using the SOLAR Battery Charger and save them for future reference. Before using the SOLAR Battery Charger to charge a battery, read these instructions and the instruction manual/safety information provided by the car, truck, boat or equipment manufacturer.
  • Page 2: Safety Summary

    Please read and retain these instructions for the continued safe use of your new charger. This manual contains important safety information. DO NOT OPERATE this equipment UNTIL YOU HAVE READ this safety summary! SAFETY SUMMARY IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS –...
  • Page 3 WARNING – Shock Hazards 1. NEVER attempt to charge a marine (boat) battery while the boat is on or near the water. A boat must be on a trailer and located indoors before attempting to charge its battery(s). The boat manufacturer’s battery charging instructions must be followed exactly.
  • Page 4 Following all manufacturers’ instructions and safety procedures will reduce the risk of accident. Working around lead-acid batteries may be dangerous. Lead-acid batteries release explosive gases during normal operation, charging and jump starting. Carefully read and follow these instructions for safe use. Always follow the specific instructions in this manual and on the Battery Charger each WARNING –...
  • Page 5 PERSONAL PRECAUTIONS 1. Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery. 2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes. 3.
  • Page 6 INTRODUCTION Description This battery charger is designed to handle the majority of your charging and starting needs. It features: • Automatic Multi-Phase Charging mode for easy operation. • The ability to properly charge multiple battery types, including Flooded, AGM and Spiral Wound batteries. •...
  • Page 7: Assemble The Handle

    ASSEMBLY Assemble the Handle Assemble the charger handle according to the following instructions and illustrations. 1. Carefully remove the charger unit and all associated Remove the Screws Lift the Handle Into Position hardware from carton. 2. Unscrew the two screws on either side of the charger as shown in Figure 1.
  • Page 8: Provide Required Power

    PREPARATION Charger Placement Place the charger in a clean, dry, stable, well-ventilated spot as far from the battery as the DC output cables permit. NEVER place the charger directly above the battery being charged - gasses from the battery will corrode and damage the charger.
  • Page 9: Locating The Charger

    The PRO-LOGIX charging process includes a Soft Start Mode to properly charge deeply discharged batteries and ensure that the energy from the charger is being properly incorporated into the battery. It also includes a Battery Repair Mode to attempt to restore batteries that do not properly accept charging current.
  • Page 10: Controls And Indicators

    CONTROLS AND INDICATORS MODE Selection Button The Mode selection button changes the mode of operation of the charger between AUTO CHARGE mode, ENGINE START mode, and STABLE POWER mode. In Auto Charge mode, once the charging parameters have been set and the START button has been pressed, the charger will commence a proprietary, advanced multi-phase charging sequence designed to...
  • Page 11 Do not exceed the maximum charge rate recommended by the battery manufacturer or the chart above. Choosing a Battery Type Setting PRO-LOGIX Charger models utilize advanced charging technology to deliver precise charge controls, enabling them to properly charge a wide variety of battery types.
  • Page 12: Operation

    OPERATION Operating Instructions ATTENTION: Do not attempt to operate this battery charger until you have read and understood the entire Safety Summary provided in this manual. Connecting to Batteries Installed in Vehicles ATTENTION: Do not plug the charger power cord into the AC power source or set any of the charger’s controls until told to do so in the following instructions.
  • Page 13 5. Position yourself and the free end of the cable (attached to the NEG battery terminal) as far away from the battery as the cable will allow. Then, WHILE FACING AWAY FROM THE BATTERY, connect the NEGATIVE charger clamp to the free end of the cable. 6.
  • Page 14 5. After charging is complete, press the START button to return the unit to Standby Mode, turn off the Master Power Switch and unplug the charger from the AC power source. Then, disconnect the charger clamp not connected directly to the battery first and DO NOT allow the clamp to touch anything. Then, disconnect the charger clamp attached to the battery terminal.
  • Page 15: Engine Starting

    Engine Starting This battery charger can provide a high-current output to help start a 12V vehicle with a weak battery. However, the onboard computer in some vehicles can be damaged when attempting to jump start. ALWAYS READ THE VEHICLE OPERATOR’S MANUAL BEFORE AUXILIARY STARTING to determine if jump starting can do damage to the vehicle.
  • Page 16: Maintenance

    MAINTENANCE CAUTION: Make sure charger is unplugged from AC outlet before performing any cleaning or maintenance. 1. Inspect clamps after each use for any damage that may have occurred. to prevent corrosion. Battery fluid may be neutralized with a solution of water and baking soda. 2.
