Summary of Contents for Nuvair MCH36 Silent Touch

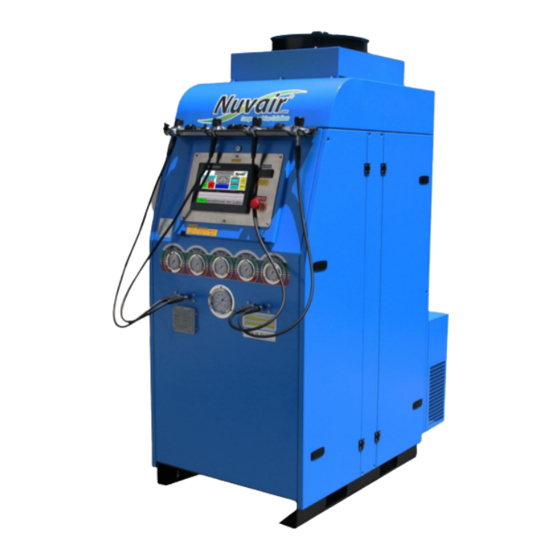

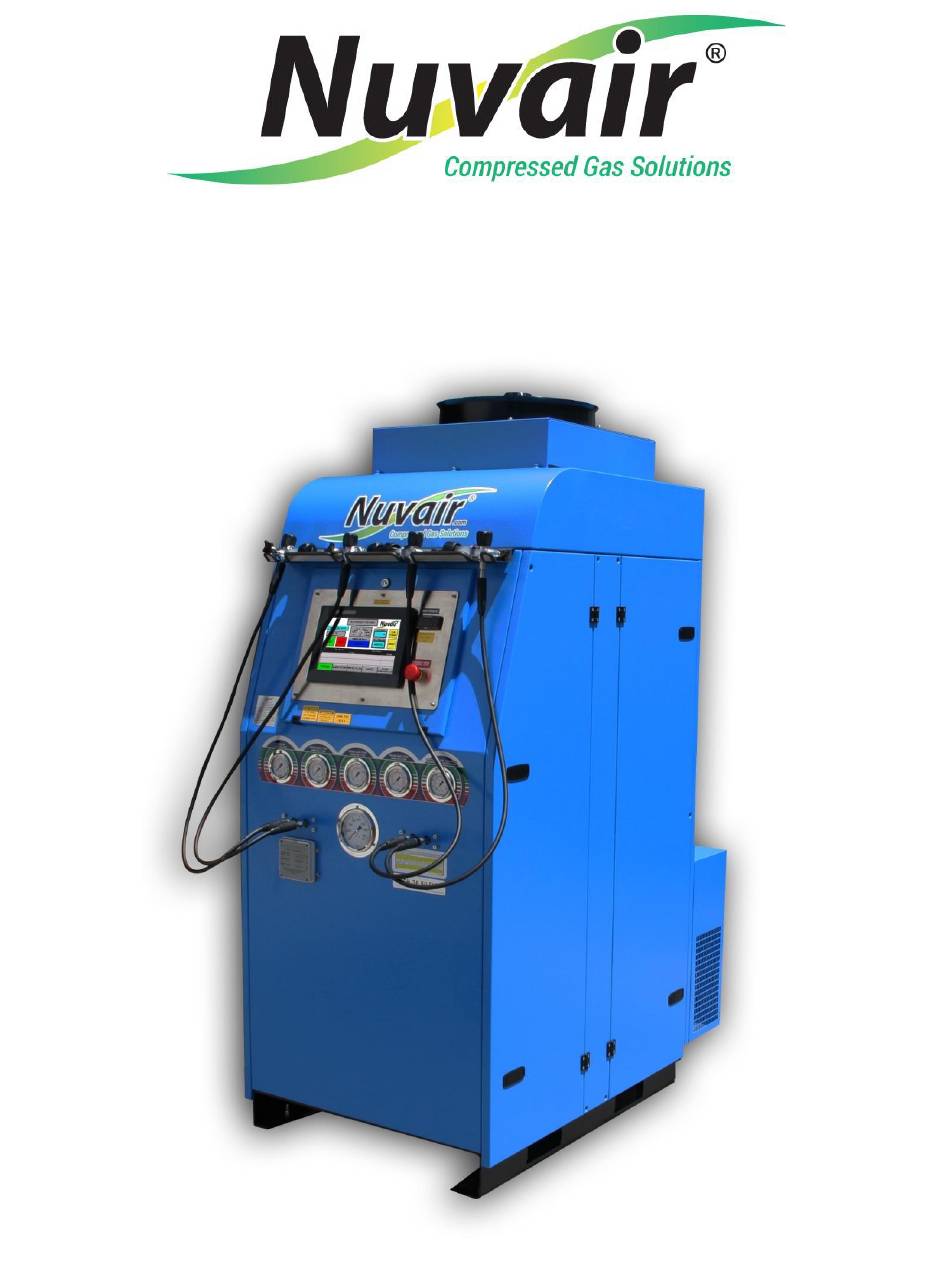

- Page 1 Operation Manual MCH36 Silent Touch...
- Page 2 MCH36 Silent Touch Notes: Nuvair Page 2 www.Nuvair.com...
- Page 3 Nuvair will make every effort to update manuals as parts and functional aspects change. However, the look or location of components on your product may differ from those in this manual if improvements have been made that do not affect functionality or operational procedures.
-
Page 4: Table Of Contents
MCH36 Silent Touch Table of Contents Introduction ................................8 Required Operator Training ............................ 8 Important Information for the User........................8 Foreword ................................. 9 Assistance ................................9 Responsibility ................................9 Purpose of the Machine ............................10 Where the Compressor May be Used ........................11 Running and Testing the Compressor ........................ - Page 5 MCH36 Silent Touch 10.0 Control Panel ................................26 10.1 Gauge Matrix ................................. 27 10.2 Cabinet Temperature ............................27 10.3 Emergency Stop ..............................27 10.4 PRESEC System ..............................28 11.0 Pressure Controls ..............................28 12.0 Tank Refill Procedure ..............................28 13.0 Maintenance ................................
- Page 6 Customer Service ..............................43 17.2 Scheduled Maintenance ............................43 17.3 Using the compressor under heavy duty conditions .................... 43 17.4 Nuvair Customer Care Contact ..........................44 18.0 Spare Parts List ................................44 19.0 Service Log ................................45 20.0 Appendix ................................... 46 20.1...
- Page 7 MCH36 Silent Touch Table of Figures Figure 1. High risk areas of compressor unit........................14 Figure 2. The Nuvair MCH36 Silent Touch Compressor......................15 Figure 3. Dashboard overview screen........................... 16 Figure 4. Pressure Setpoint input screen..........................16 Figure 5.
-
Page 8: Introduction
MCH36 Silent Touch Introduction This manual will assist you in the proper set-up, operation, and maintenance of the Nuvair MCH36 compressor packages. Be sure to read the entire manual. Throughout this manual we will use certain words to call your attention to conditions, practices or techniques that may directly affect your safety. -
Page 9: Foreword
+1.805.486.0900 Email: info@Nuvair.com Responsibility Nuvair considers itself exonerated from any responsibility or obligation regarding injury or damage caused by: • Failure to observe the instructions contained in this manual that concern the running, use and maintenance of the compressor. •... -
Page 10: Purpose Of The Machine
Maintenance and repairs must only be carried out using original spare parts and qualified technicians. Nuvair cannot be held liable for any damages caused by failure to observe this rule. The compressor is guaranteed as per the contractual agreements made at the time of sale. Failure to observe the regulations and instructions for use contained in this manual shall render the warranty null and void. -
Page 11: Where The Compressor May Be Used
• It is forbidden to use the compressor under conditions or for purposes other than those indicated in this manual and Nuvair cannot be held liable for breakdowns, problems or accidents caused by failure to observe this rule. •... -
Page 12: Running And Testing The Compressor
Safety Warnings Nuvair has taken extreme care in providing you with the information you will need to operate this system. However, it is up to you to carefully read this manual and make the appropriate decisions about system safety. -
Page 13: Safety And Operation Precautions
MCH36 Silent Touch Any pressurized hose can cause extreme harm if it comes loose or separates from its restraint (or termination) while under pressure and strikes any part of your body. Use appropriate care in making and handling all gas connections. -
Page 14: High-Risk Areas Of Compressor
23. Check hoses for weak or worn conditions before each use and make certain that all connections are secure. The user of any compressor or nitrox system manufactured by Nuvair is hereby warned that failure to follow the preceding Safety and Operation Precautions can result in injuries or equipment damage. However, Nuvair does not state as fact or does not mean to imply that the preceding list of Safety and Operation Precautions is all-inclusive, and further that the observance of this list will prevent all injuries or equipment damage. -
Page 15: Compressor Layout
MCH36 Silent Touch Compressor Layout Cabinet Temperature Touchscreen Emergency Stop HMI Display Interstage Pressure Gauges (4) HP Air Outlets (4) Fill Pressure Gauge (1) Oil Pressure Gauge (1) Figure 2. The Nuvair MCH36 Silent Touch Compressor. Nuvair Page 15 www.Nuvair.com... -
Page 16: Start Guide & Dashboard Use
MCH36 Silent Touch Start Guide & Dashboard Use The Nuvair MCH36 Silent Touch is equipped with an HMI (Human Machine Interface) touchscreen system controller called the Dashboard. The Dashboard allows users to monitor compressor activity, identify alarm events. Please refer to the Quick Start Guide (4.1) for an overview of Dashboard operations. -
Page 17: Alarm History Screen
MCH36 Silent Touch • Stop (red “STOP” button) • Fill Mode (SINGLE FILL MODE or AUTO RESTART MODE, described in Section 4.1). • Run Hours (displayed as total hours) • Final Pressure (or “output pressure” in both digit and gauge display) •... -
Page 18: Gauges Screen
Alarm Events and Descriptions The MCH36 Silent Touch dashboard has 55 different alarm states. Each alarm condition has a unique name and associated definition. Alarm names and definitions are factory set. When an alarm event threshold is reached, the button color turns yellow and the system will either (a) sound an alarm, and/or (b) shut down the compressor. - Page 19 MCH36 Silent Touch 1ST STAGE PSI HIHI The first stage pressure is critically high. The system shuts down immediately and sounds an alarm. 1ST STAGE PSI LO The first stage pressure is low and requires evaluation. Alarm sounds. 1ST STAGE PSI LOLO The first stage pressure is critically low.
- Page 20 MCH36 Silent Touch FAIL TO START ALM Compressor should start but did not. Alarm sounds. FILTER BAD ALM After 250 hours of runtime, breathing filters change is required. Alarm sounds. FILTER CARTRIGE ALM Breathing air filter needs replacing in 3-10 hours of additional runtime. Alarm sounds.
-
Page 21: Nuvair Page
MCH36 Silent Touch PHASE FAIL ALM The compressor rotation is incorrect. The system shuts down immediately and sounds an alarm. REPLACE 123 PISTON RINGS First, second, and third stage piston ring replacement required. Alarm sounds. REPLACE 123 RINGS RESET First, second and third stage piston ring replacement alarm has been reset. -
Page 22: Protective Clothing
MCH36 Silent Touch Protective Clothing All operators must use accident prevention items such as gloves, hard hat, eye goggles, accident prevention shoes and ear defenders against noise (Figure 11). Emergency Equipment Make sure first aid supplies and a fire extinguisher rated for use on extinguishers with a electrical equipment is nearby. -
Page 23: System Components
MCH36 Silent Touch System Components • Coltri MCH36 High Pressure Air Compressors o 4 Cylinder, 4 Stage, Air Cooled • Three-Phase 20 hp Electric Motor o 208-230V / E3 / 60Hz o 380-415V / E3 / 50 Hz, or o 440-460V / E3 / 60 Hz •... -
Page 24: Compressor Specifications
Unpack the system and remove from the pallet. Visually inspect the system to make sure there has been no damage during shipping. If damaged, please call Nuvair to file a damage report. Please take photos and supply detailed information about the damage. -
Page 25: Electrical Connection
• The compressor is delivered with raw leads ready to be installed into a junction box. • In the event a plug is needed, Nuvair recommends that the licensed electrician doing the install determines the plug necessary. • An efficient compressor grounding system is an essential compressor safety requisite. -
Page 26: Storing Technical Documentation
Tampering with the safety valve to increase the pressure setting is strictly forbidden. Tampering with the safety valve can seriously damage the compressor, cause serious injury to personnel, and renders the warranty null and void. Should the safety valve fail to work properly, contact Nuvair Technical Support. -
Page 27: Gauge Matrix
The gauge matrix (Figure 17) is described below, from top row—left to right—and the bottom (final pressure) gauge. The compressor front panel has a total of six (6) mechanical gauges. The Nuvair MCH36 Silent Touch model monitors all gauge pressure readings electronically in the Dashboard where alarms and shutdowns are programmed in by the factory. -
Page 28: Presec System
MCH36 Silent Touch 10.4 PRESEC System The PRESEC system's is a visual filter element moisture indicator system. Its wired probe is connected to the compressor's final filter tower and provides visual indicators of the moisture level in the filter element based on electrical conductivity of the moisture. - Page 29 MCH36 Silent Touch During tank refill, those not involved in the refill procedure must maintain a safety distance of at least 9 feet (3 meters). Also, it is forbidden to disconnect the hoses from the fittings or the high-pressure out connection while the machine is under pressure.
-
Page 30: Maintenance
It is thus advisable to read the information below and consult the manual every time an inconvenience arises. For further information, please contact Nuvair: Phone: +1.805.815.4044 Email: info@Nuvair.com Do not carry out these tasks if the compressor has just shut down and is hot;... -
Page 31: Unscheduled Work
Water & HP Oil Separator Checking and cleaning Change * Nuvair recommends oil changes every 250 hours of runtime, or once per year, whichever is less. ** Change oil every 100 hours when compressor is used with nitrox. Nuvair Page 31 www.Nuvair.com... -
Page 32: Troubleshooting
100 hours of use or annually, whichever comes first. HP Compressor Lubricant: Only use lubricants rated for use with nitrox, such as Nuvair 455™ or Nuvair 751™. Never mix compressor lubricants. Nuvair compressors are shipped with Nuvair 455 synthetic food grade lubricant (for breathing air use) or Nuvair 751 (for industrial use). -
Page 33: Checking The Oil Level
MCH36 Silent Touch Do not carry out these tasks if the compressor has only just shut down; wait for the compressor to cool. Pressure must be drained before opening LP fill plug. Any oil spilt during the oil/filter change could cause personnel to slip; wear protective garments and anti-slip footwear and remove traces of oil immediately. -
Page 34: Changing The Lubricating Oil And Filter
According to Coltri specifications, a new compressor using synthetic lubricants can operate up to 1000 hours between oil changes. At Nuvair, we prefer to have oil changed every 250 hours (or once per year, whichever interval is less) unless you are taking advantage of an oil analysis program that confirms the oil is still good. -
Page 35: Tightening Torque Values
MCH36 Silent Touch • Replace the plug (i). 13.9 Tightening Torque Values The table below shows tightening torques for bolts or hexagonal-head or cylindrical-head recessed hexagonal bolts and screws, except for specific cases indicated in the manual. Pipe connections (swivel nuts, compression fittings) should be finger tight plus an additional 1/2 turn. -
Page 36: Transmission Belts
• Insert the second belt and carry out the same procedure described for the first belt. Figure 27. Changing the transmission belt. If belts (g) tension is not correct contact Nuvair for technical assistance. Nuvair Page 36 www.Nuvair.com... -
Page 37: Changing Air Filtration Cartridges
(as illustrated in Error! Reference source not found.) turns white or a color other than blue. The MCH36 Silent Touch compressor comes standard with one (1) drying filter (SKU NUV65677) and one (1) breathing air filter (SKU NUV65247). Do NOT use any substitute. -
Page 38: Figure 29. Air Filter Changing Diagram
MCH36 Silent Touch Figure 29. Air filter changing diagram. Do not carry out these tasks if the compressor has just shut down and is hot; wait for the compressor to cool. All maintenance work must be carried out with the compressor OFF and the power supply lead unplugged from the wall socket. -
Page 39: Temperature Effect On Filter Life
MCH36 Silent Touch 13.15 Temperature Effect on Filter Life This Filter Replacement Frequency Calculation Table is based on total hours of compressor runtime. The table values are based on pressure maintenance valve calibrated to 2900 psi (200 bar). Higher pressures will affect overall performance. -
Page 40: Changing Flex Hoses
Tampering with the safety valve to increase the pressure setting is strictly forbidden. Tampering with the safety valve can seriously damage the compressor, cause serious injury to personnel and renders the warranty null and void. Should safety valves fail to work properly, contact Nuvair for technical assistance. Nuvair Page 40... -
Page 41: Power Requirements
MCH36 Silent Touch Figure 32. Safety valve locations. 14.0 Power Requirements Never use extension cords to provide power to your compressor system. The system must be properly wired according to national and local electrical codes by a qualified electrician. Improper wiring may lead to fires, which can cause serious personal injury or death. -
Page 42: Storage
MCH36 Silent Touch 15.0 Storage Should the compressor not be used, it must be stored in a dry sheltered area at an ambient temperature of between +32°F and +104°F (0°C and +40°C). Store the compressor away from sources of heat, flames or explosive. -
Page 43: Dismantling The Compressor
17.0 Maintenance Register 17.1 Customer Service Customers continue to receive assistance after the purchase of a compressor. To this end Nuvair has created a customer service network covering the entire country. 17.2 Scheduled Maintenance The scheduled maintenance program is designed to keep your compressor in perfect working order. Some simple tasks, described in this manual, can be carried out directly by the customer;... -
Page 44: Nuvair Customer Care Contact
MCH36 Silent Touch 17.4 Nuvair Customer Care Contact Telephone: +1.805.815.4044 Fax: +1.805.486.0900 info@Nuvair.com E-mail: www.Nuvair.com/ Web: 18.0 Spare Parts List Compressor System Components Type Part Number Compressor Lubricant, Food Grade (nitrox compatible) Nuvair 455 (1 gal) 9406 Compressor Lubricant, Industrial Grade... -
Page 45: Service Log
MCH36 Silent Touch 19.0 Service Log Date Technician Name Service Performed Nuvair Page 45 www.Nuvair.com... -
Page 46: Appendix
MCH36 Silent Touch 20.0 Appendix 20.1 Supply and Breathing Air Specifications All supply and breathing air must meet the following requirements of CGA G-7.1-1997. Supply air delivered to the Membrane System must be purified to meet Grade D or E quality, and periodic air quality testing to assure compliance is recommended. -
Page 47: Nuvair Compressor System Warranty
Nuvair has employed in the installation or use of any OEM component. This warranty is not transferable. Nuvair will, at its discretion and according to the terms as set forth within, replace or repair any materials which fail under normal use and service and do not exhibit any signs of improper maintenance, misuse, accident, alteration, weather damage, tampering, or use for any other than the intended purpose. - Page 48 Nuvair to contact the user regarding this product. The user must notify Nuvair of any change of address by the user or sale of the product. All changes or revisions to this manual must be recorded in this document to ensure that the manual is up to date.
-
Page 49: Plc Wiring Schematics
MCH36 Silent Touch 22.0 PLC Wiring Schematics (PLC wiring schematics on the following pages) Nuvair Page 49 www.Nuvair.com... - Page 56 MCH36 Silent Touch Nuvair Phone +1.805.815.4044 +1.805.486.0900 Address 1600 Beacon Place Oxnard, CA 93033 USA Email info@nuvair.com www.Nuvair.com Website Rev. 05.2021 SKU 8044-PLC...
