Potter PAD300-PD Quick Start Manual

1609 Park 370 Pl, Hazelwood, MO 63042
www.pottersignal.com
PAD300-PD PAD300-PHD
Contents
A. Introduction E. Addressing
B. Specifications F. Testing
C. Installation G. Cleaning
D. Locking Feature H. Warranty
A. Introduction
The PAD300-PD is an intelligent addressable photoelectric smoke
detector. The PAD300-PHD shares the same features as the PAD300-
PD and includes a thermal sensor. The photo and heat sensors on the
PAD300-PHD work independently and generate a separate signal to
the panel.
Each detector includes one (1) LED to indicate the device status.
The LED flashes momentarily in normal conditions and flashes
at a fast rate when activated. The LED can be turned off using the
programming software.
The PAD300-PD and PAD300-PHD have a maximum spacing
limitation of 30ft. Place the detector as close to the center of the
ceiling as possible. It may be wall mounted within 12 inches from
the ceiling. To minimize false alarms, avoid placing in areas where
excessive dust, humidity, air movement, or extreme temperature
is present. Refer to NFPA 72 for more details regarding spacing,
placement and special applications.
The PAD300-PD and PAD300-PHD communicate on a proprietary
protocol to the addressable fire alarm control panel. Each detector
must be connected to either the IPA series, AFC series, or ARC fire
alarm control panel for proper operation. For detector sensitivity
settings and supervision, please refer to the panel installation
instructions.
Refer to the company website for the latest revision of this manual.
B. Specifications
Operating Voltage
Standby Current (*)
Alarm Indicator Current
Sensitivity Range
Installation Temp Range
Operating Humidity Range
0% - 93% (Non-condensing)
Dimension
Weight
Height
*Standby current is the current the device consumes when the device
is in a non-activated condition and where no communication current
is transmitted to the fire alarm control panel.
PAD300-PHD
Operating Voltage
Standby Current (*)
Alarm Indicator Current
Sensitivity Range
Fixed Alarm Temperature
RoR Detection
Installation Temp Range
Operating Humidity Range
0% - 93% (Non-condensing)
Dimension
Weight
Height
C. Installation
Installation must meet the requirements of the Authority Having
PAD300-PD
Jurisdiction (AHJ). It is recommended to follow guidelines as
described in the National Fire Protection Association NFPA 72.
24 VDC
1. Before connecting a device to the SLC loop, take the following
precautions to prevent potential damage to the SLC or device.
300 μA
•
1.4 mA
•
1.1 to 3.5%/ft
•
32°F to 120°F
2. Set the desired address using the DIP switch located on back of
the sensor. See section E for addressing instructions.
3. Plug detector into base and turn clockwise to secure in place.
Φ 3.93 in
3.20 oz
CONSTRUCTION. REMOVE DUST COVER TO ALLOW THE
1.42 in
DETECTOR TO DETECT SMOKE AND HEAT.
DETECTORS ARE NOT TO BE USED WITH DETECTOR GUARDS
UNLESS THE COMBINATION HAS BEEN EVALUATED AND
FOUND SUITABLE FOR THAT PURPOSE.

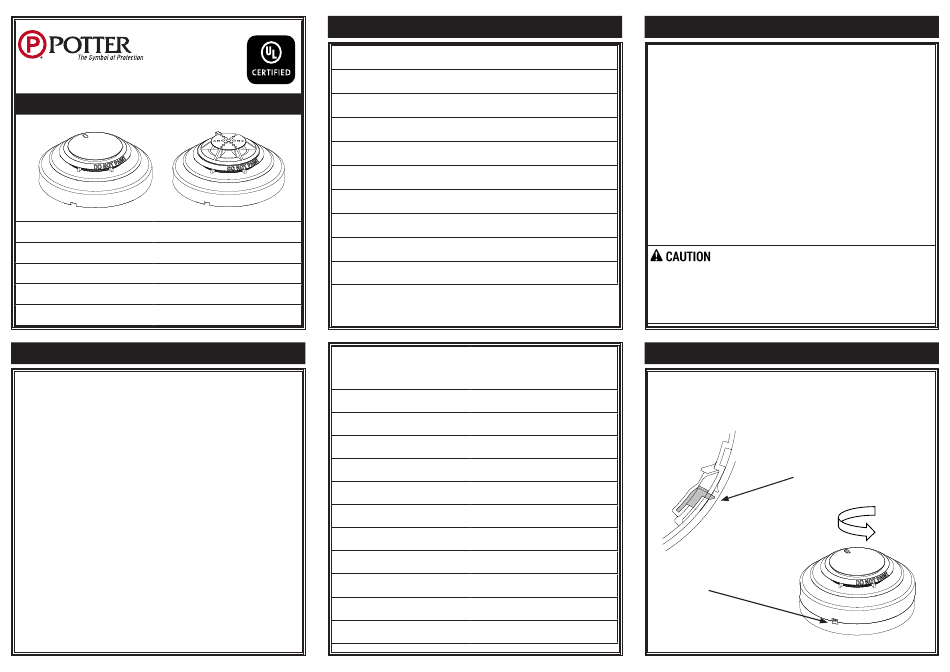

D. Locking Feature
The device includes a tamperproof feature that locks the detector and
does not allow removal without the use of a tool.
24 VDC
300 μA
1.4 mA
1.1 to 3.5%/ft
135°F
15°F/min
32°F to 115°F
Insert a small screwdriver
into slot to remove
Φ 3.93 in
detector.
3.25 oz
1.70 in
Use only the PAD300 series bases PAD300-4DB, PAD300-
6DB, PAD300-SB and PAD300-LFSB (supplied separately).
Confirm the field wiring on device is correctly installed on
the base. Refer to the base manual.
Enable the locking feature if needed. Refer to section D for
details of the locking feature.
KEEP DUST COVER ON DETECTOR DURING
Break off tab (gray area in
image). The locking feature is
enabled
