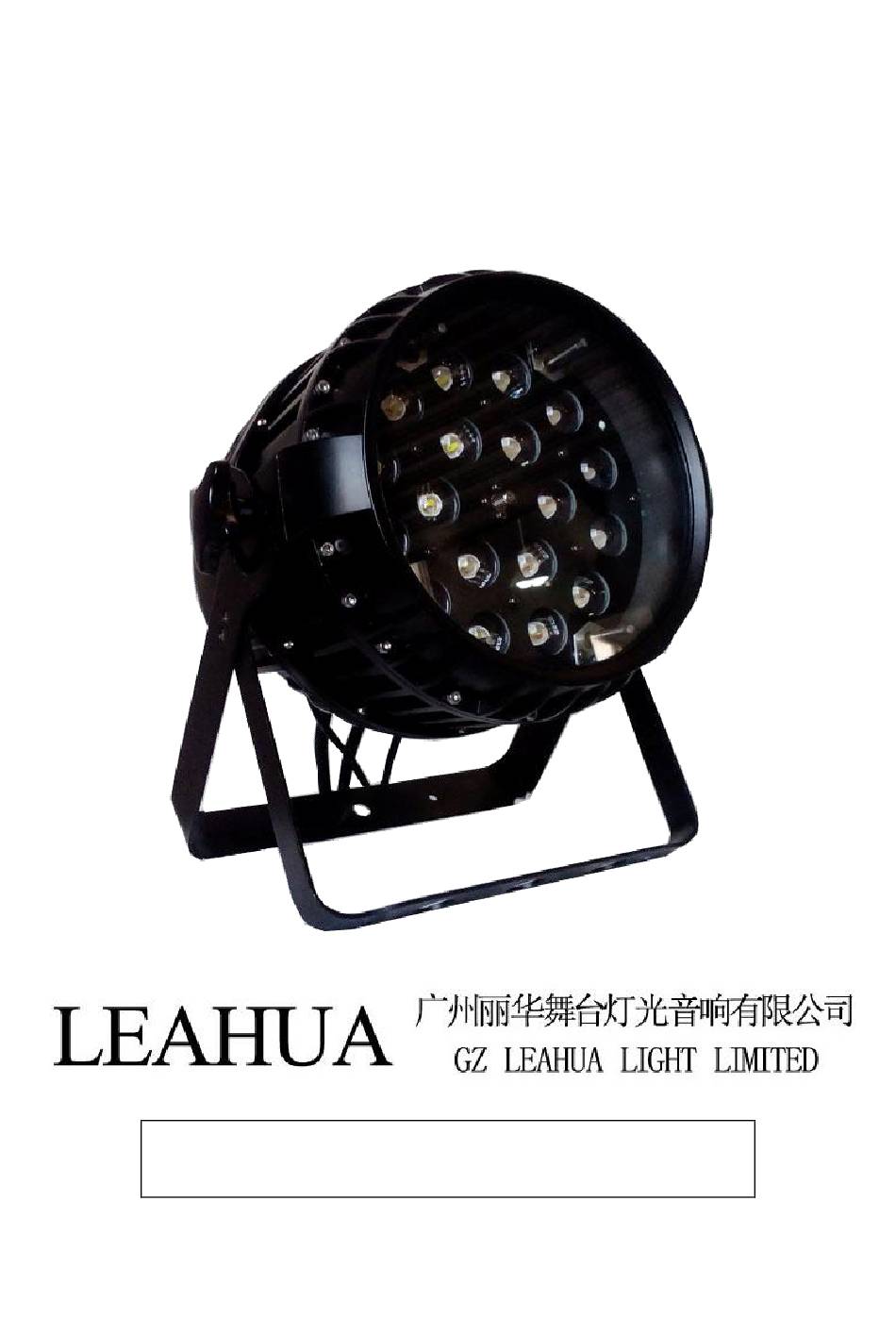

leahua LH-D017 User Manual

18pcs 12w led par waterproof with zoom
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
LH-D017 18pcs 12w led par waterproof
This manual contains important information.
Please read before operating fixture.
Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun
District Guangzhou China.
Tel：+86 020-66292177
with zoom
User Manual
Fax：+86 020-66292177

Advertisement

loading

Related Manuals for leahua LH-D017

Summary of Contents for leahua LH-D017

  • Page 1 LH-D017 18pcs 12w led par waterproof with zoom User Manual This manual contains important information. Please read before operating fixture. Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun District Guangzhou China. Tel：+86 020-66292177 Fax：+86 020-66292177...

  • Page 2: Security Tips

    1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:  non-professionals, not to disassemble the light arbitrarily and lighting accessories inside.  rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected).
  • Page 3 2 TECHNOLOGY REFERENCE Voltage: 100V-240V/50-60Hz Power: 216W Light Source: 18*12W rgbw 4 in 1 LED Control mode: DMX512, Master-Slave,Sound-Active. Channels:9/5CH DMX Net Weight: 9.8kg Carton case:330*330*440mm(put single) Gross weight:11kg 3 Board Instruction Show Function Instruction D001 9CH DMX Address（001—512） UP、DOWN increase or reduce the value A001 5CH DMX Address（001—512）...

  • Page 4: Dmx Channel Sheet

    UP、DOWN Change the speed BE01 7Colors sound-Active (01-04) UP、DOWN Change the effects. FH01 Strobe flash（01—99） UP、DOWN Change the speed R225 Red（000—255） UP、DOWN Change brightness G225 Green（000—255） UP、DOWN Change brightness B225 Blue（000—255） UP、DOWN Change brightness W255 White（000—255） UP、DOWN Change brightness N255 Motor Locate（000—128）...
  • Page 5 Beam Adjust 0~255 Motor Location Adjust, Change the Beam 5CH: Channel Function Instruction R Dimmer R Dimmer-Linear Dimmer. Dark to Bright R Dimmer G Dimmer-Linear Dimmer. Dark to Bright R Dimmer B Dimmer-Linear Dimmer. Dark to Bright R Dimmer W Dimmer-Linear Dimmer. Dark to Bright Beam Adjust 0~255 Motor Location Adjust, Change the Beam 5 FIXED EQUIPMENT...

  • Page 6: Maintenance

    7 Maintenance Problems Check list Trouble Shooting The fixture do 1. If your power as same as the input 1. Make sure the voltage. not work of the machine. 2. Replace the same fuse. 2. If the fuse was broken. LED dimmed If your power us same as the input Make sure the voltage...

  • Page 7: After Service

    8 AFTER SERVICE 1. Our company offer technical consultation to customers for ever. 2. If the machine is wrong and need repairmen, please truthfully fill in the related content and feedback us the problems timely, as well as we have to improve the product. 3.
  • Page 8 Note: Based on our company continue to improve the product, the statement containing data may have changed, and will not notice the change any more. Company retains its right to change specifications related when product is improved. Thanks for your understanding. www.leahualight.com...
