Marvel 6SDZE-BB-G Datasheet

www.dexpress.com
This Data Sheet Includes Information On
Marvel
• Product Model Number (s):
Chateau Collection Dual Zone Wine Cellar:
6SDZE-BB-G and 6SDZE-BS-G
• Dimensions (Actual Size)
Overall depth including handle:
Overall depth NOT including handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 5/8" to the overall depth of the unit to
accommodate the low profile plug). 3) Recessed 1" into
the back wall of the refrigerator opening.
• Door must be ordered hinged right (-R) or hinged left
(-L). Door is NOT reversible in field.
• Optional door lock is available.
• Wine racks may be fully extended at 90° door
opening.
• Shipping weight: 170 pounds.
• U.L. Listed.
• Full wrap door with designer full-length bar handle.
• Does not accept custom panels.
See page 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2008.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
25 3/4"
23 5/8"
21 1/2"
34 7/8"
33 3/4"
Width: 23 7/8"
3"
25 1/2"
24"
24"
34 1/2"
•
318
34 7/8" max
33 3/4" min
23 5/8"
34 7/8" max
(not to scale)
33 3/4" min
• Call Dimension Express if you have any questions at (800) 940-2059 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of each quarter at 12:01am •
Fax on Demand (925) 284-3558
23 7/8"

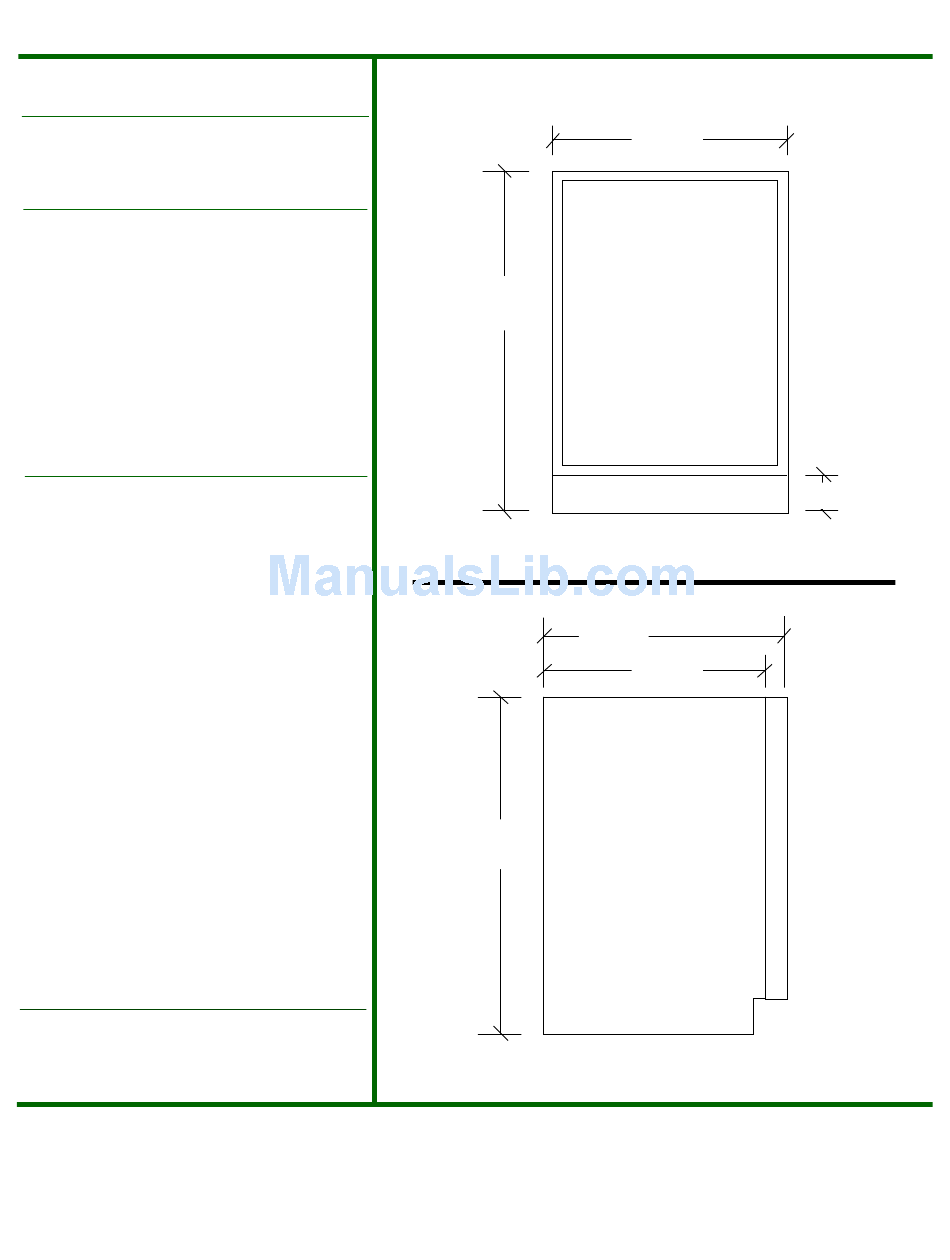

Front View
