- Page 1 MARVEL Installation Operation Maintenance Instructions Refrigerated Wine Cellars Luxury Series 30WCM 61WCM...
-
Page 2: Table Of Contents
30WCM glass door..........6 Dimensions for 30WCM glass overlay door.....7 Recommended Rough in Opening Dimensions for 30WCM glass overlay door........7 Dimensions for 30WCM solid overlay door..... 8 Recommended Rough in Opening Dimensions for 30WCM solid overlay door........8 Dimensions for 61WCM glass door.........9 Recommended Rough in Opening Dimensions for 61WCM glass door..........9... -
Page 3: Unpacking Your Wine Cellar
UNPACKING YOUR WINE CELLAR Note to Customer Important Safety Instructions This merchandise was carefully packed and thoroughly Warnings and safety instructions appearing in this inspected before leaving our plant. Responsibility for its safe guide are not meant to cover all possible condi- delivery was assumed by the retailer upon acceptance of the tions and situations that may occur. -
Page 4: Installing Your Wine Cellar
For this reason it is important this area to not be obstructed and be kept clean. Marvel does not rec- ommend the use of custom made grilles as air flow may be Do not use an extension cord restricted because of inadequate openings. -

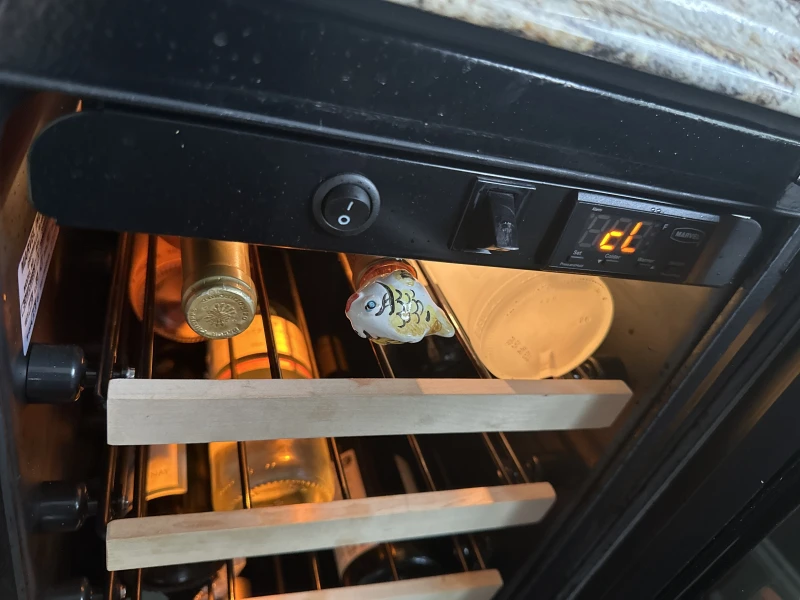

Page 5: Using Your Microsentry™ Control
ON/OFF button for three seconds. sensor alarm will sound. “E1” will flash on the display, and an alarm will sound. Please call Marvel Customer Service or Set temperature your dealer if this error code is displayed. - Page 6 USING YOUR MicroSentry™ REFRIGERATOR CONTROL Alarm Mute Press any key to mute the audible portion of an alarm,. NOTE-This action will only mute the alarm. If the condition that caused the alarm continues, the alarm code will contin- ue to flash and will sound for 20 seconds every 60 minutes. Turning Refrigerator Off To turn refrigerator off, press and hold “ON/OFF”...
-
Page 7: Dimensions For 30Wcm Glass Door
(87 to 87.6 cm) 21-3/16” 3” to 3-1/4” (53.82cm) (7.62 to 8.26cm) Rough In Opening Dimensions, for 30WCM Glass Door Electrical Requirements: 115 volts, 3.3 amps running max. 15 amp dedicated circuit required. 3 prong grounded receptacle required. Power outlet can be located in the 34-1/2”... -
Page 8: Dimensions For 30Wcm Glass Overlay Door
(87 to 87.6cm) 3” to 3-1/4” 21-3/16” (7.62 to 8.26cm) (53.82cm) Rough In Opening Dimensions for 30WCM Glass Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max. 15 amp dedicated circuit required. 3 prong grounded receptacle required. Power outlet can be located in the 34-1/2”... -
Page 9: Dimensions For 30Wcm Solid Overlay Door
(87 to 87.6cm) 21-3/16” 3” to 3-1/4” (53.82cm) (7.62 to 8.26cm) Rough In Opening Dimensions for 30WCM Solid Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max. 15 amp dedicated circuit required. 3 prong grounded receptacle required. Power outlet can be located in the 34-1/2”... -
Page 10: Dimensions For 61Wcm Glass Door
DIMENSIONS FOR 61WCM GLASS DOOR 47” (119.38cm) 25-21/32” (65.15cm) 26” 23-7/8” (66.04cm) (60.66cm) 24-1/16” (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 3” to 3-1/4” 22” (7.62 to 8.26cm) (55.88cm) Rough In Opening Dimensions for 61WCM Glass Door Electrical Requirements: 115 volts, 3.3 amps running max. -
Page 11: Dimensions For 61Wcm Glass Overlay Door
DIMENSIONS FOR 61WCM GLASS OVERLAY DOOR 46-25/32 (118.82cm) 23-1/32” (58.5cm) 23-7/8” 24-1/16” (60.66cm) (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 22” 3” to 3-1/4” (55.88cm) (7.62 to 8.26cm) 23-5/16” (59.21cm) Rough In Opening Dimensions for 61WCM Glass Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max. -
Page 12: Dimensions For 61Wcm Solid Overlay Door
DIMENSIONS FOR 61WCM SOLID OVERLAY DOOR 46-27/32” (119.02cm) 23” (58.42cm) 23-7/8” 24-1/16” (60.66cm) (61.1cm) 34-1/4” to 34-1/2” (87 to 87.6cm) 22” (55.88cm) 3” to 3-1/4” (7.62 to 8.26cm) 23-5/16” (59.21cm) Rough In Opening Dimensions for 61WCM Solid Overlay Door Electrical Requirements: 115 volts, 3.3 amps running max. -
Page 13: Full Overlay Panel Installation Instructions
Remove the door by angling the top of the door outward and lifting the door off the bottom hinge. Model (See detail in Figure 4). 14-5/8” 30-5/16” 30WCM (37.13cm) (76.99cm) Step 3: Remove gasket Lay the door on its front being careful not to scratch it. 23-5/8”... - Page 14 (See Figure 7). Model Step 8: Assemble the lock parts 14-5/16” 30-5/16” 30WCM Two (2) lock extensions are supplied with the lock. Use (36.35cm) (76.99cm) the longer extension for a 3/4” thick overlay panel and 23-7/16”...
- Page 15 FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS Figure 8 Step 9: Secure overlay panel to the door. With the #8 wood screws provided fasten the overlay panel to the door. (See Figure 9). Top hinge Top hinge pin Step 10: Install lock cam (Models with locks only). Attach the lock cam to the back of the lock assembly with Top door hinge the phillips head machine screw provided.
-
Page 16: Features
30WCM WINE CELLAR FEATURES Insert Wine Bottles The five (5) pull-out shelves each hold four (4) bottles. See Figure 11 for typical wine bottle spacing. Tall bottles should not be loaded on the bottom rack because they may prevent the door from closing. Also, there is a fixed,... - Page 17 61WCM WINE CELLAR FEATURES Insert Wine Bottles The four (4) pull-out shelves each hold eight (8) bottles. See Figure 14 for typical wine bottle spacing. Tall bottles should not be loaded on the bottom rack because they may prevent the door from closing. The display shelf at the top Front Bottles (Necks Facing Rear) of the cabinet holds seven bottles.
-
Page 18: Care And Cleaning
LIGHT BULB REPLACEMENT. Failure to do so may result in an electrical shock that could severely injure you. The 30WCM and 61WCM use one, 15 watt incandescent light bulb to illuminate the interior of the wine cellar. The light bulb is a very reliable electrical component, but should... -
Page 19: Troubleshooting Guide
TROUBLESHOOTING YOUR WINE CELLAR Before You Call for Service If the unit appears to be malfunctioning, read through this manual first. If the problem persists, check the troubleshoot- ing guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. -
Page 20: Obtaining Service
HOW TO OBTAIN SERVICE If Service is Required: • If the product is within the first year warranty period please call Marvel Customer Service at 800.223.3900 for directions on how to obtain warranty coverage in your area. • If the product is outside the first year warranty period, Marvel Customer Service can provide recommendations of service centers in your area. -
Page 21: Household Product Warranty
Not Supplied or Designated by Marvel Limited One Year Parts and Labor Warranty The above warranties also do not apply if: Marvel warrants that it will supply all necessary parts and labor to repair or replace in the end user’s home or office, •... -
Page 22: Appendix A Additional Microsentry™ Features
APPENDIX A, ADDITIONAL MicroSentry™ FEATURES Information Menu: Keypad Lockout Feature (Loc): This feature The following features are available on the Information is useful for prohibiting changes in the Menu. temperature set point or accidentally turning • Current Temperature the unit off. Press and hold the “SET” key to display the cur- •... - Page 23 NOTES...
- Page 24 Northland-Marvel P .O. Box 400 1260 E. Van Deinse St. Greenville MI 48838 800.223.3900 41011750-EN Rev G All specifications and product designs subject to change without notice. Such revisions do not entitle 11/10/09 the buyer to corresponding changes, improvements, additions, replacements or compensation for...
