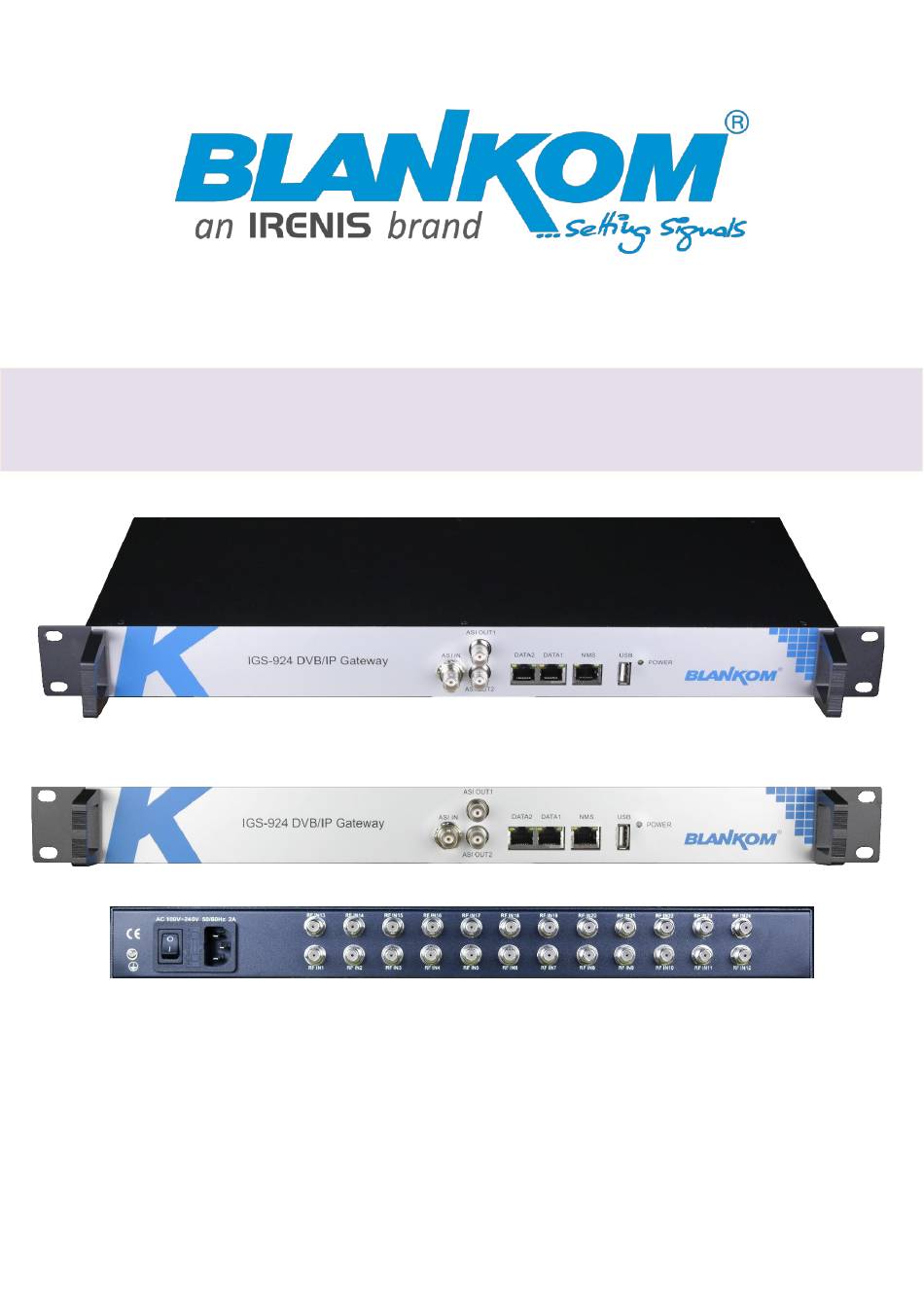

IGS-924 Tuner to IP Gateway
Datasheet and operation Manual
V 1.0
1 / 59

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLANKOM IGS-924 and is the answer not in the manual?

Questions and answers

Related Manuals for Irenis BLANKOM IGS-924

Summary of Contents for Irenis BLANKOM IGS-924

  • Page 1 IGS-924 Tuner to IP Gateway Datasheet and operation Manual V 1.0 1 / 59...

  • Page 2: Table Of Contents

    IGS-924 24 DVB Tuner to IP-Out Table of Content TABLE OF CONTENT ......................2 INTRODUCTION: ....................... 3 FEATURES ......................... 3 SPECIFICATIONS (DVB-T/T2/C ETC. UPON REQUEST) ............4 CONNECTING: ........................5 SAFETY AND OTHER RECOMMENDATIONS: ................ 6 IMPORTANT NOTES! ......................6 INSTALLATION NOTES ......................

  • Page 3: Introduction

    Gbe output. The ASI out are only used in MPTS mode. The BLANKOM IGS-924 is also characterized with a high integration level, high performance and very cost effective. This streamer is very adaptable to new generations of IPTV headend systems i.e., in hospitality environments serving FreeToAir (FTA) content and BISS encrypted Services.

  • Page 4: Specifications (Dvb-T/T2/C Etc. Upon Request)

    IGS-924 24 DVB Tuner to IP-Out Specifications ( DVB-T/T2/C etc. upon request) Input 24 tuner input + 1x ASI in, TS Player ->SPTS/MPTS output Frequency In 60...890MHz DVB-C Standard J.83A(DVB-C), J.83B, J.83C Option: Constellation 16/32/64/128/256 QAM Multi- mode Frequency In 60...890MHz DVB-T/T2 tuners...

  • Page 5: Connecting

    IGS-924 24 DVB Tuner to IP-Out BISS Descrambling Mode 1, Mode E (Up to 850Mbps) (descrambling individual program’s) 2x 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 & GE2 port (IP address and port number of GE1 and GE2 are independent), Unicast and Multicast Output 2x12 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast...

  • Page 6: Safety And Other Recommendations

    (such as translation, transformation or adaptation) without the written permission from Blankom / IRENIS GmbH. IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision or change.
  • Page 7 IGS-924 24 DVB Tuner to IP-Out dem Installateur und/oder dem Betreiber. Insbesondere sind die in den jeweiligen Ländern geltenden Vorschriften und Richtlinien für die Inbetriebnahme speziell für den Stromanschluß und alle mit den Produkten in Zusammenhang stehenden und geltenden Normen und Gesetze einzuhalten. Remark: All operating instructions published by us are intended for the antenna and IT specialist who has basic knowledge of reception, network and system technology.

  • Page 8: Installation Notes

    IGS-924 24 DVB Tuner to IP-Out Installation Notes All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in 19” racks. In addition to the front panel screws, an internal module support is required at the rack.

  • Page 9: Quick-Start Installation

    IGS-924 24 DVB Tuner to IP-Out Quick-Start Installation: The user can control and set the configuration of the device with any computer by connecting to the web server-Interface (WebIF) by the 100BaseT NMS Port. The user should ensure that the computer’s IP address is different from other device’s IP address;...
  • Page 10 IGS-924 24 DVB Tuner to IP-Out Please note, the DATA-GbE Port default settings are different than shown here. Usually, the device will be shipped in MPTS mode and the config-Menus are different in SPTS and MPTS Please select the operating mode for SPTS (default) or MPTS in the Firmware section: Bypass means MPTS 1:1 transponder to IP stream output...
  • Page 11 IGS-924 24 DVB Tuner to IP-Out change. It doesn’t accept the previous saved settings from the SPTS or MPTS mode because they are different. Sounds logical isn’t it? Just to show the difference for MPTS – outputs – only 24 IP streams can be assigned. You should decide whether a stream goes through GbE DATA1 or DATA2 so please balance the MPTS streams if more than 800 Mb/s are to be streamed.
  • Page 12 IGS-924 24 DVB Tuner to IP-Out The file can be uploaded by LOAD CONFIGURATION. The Safe-Restore menu is self-explaining: It internally SAVEs or RESTORE the settings. Load an external previously saved config is almost a good idea: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx...

  • Page 13: Mpts-Mode

    IGS-924 24 DVB Tuner to IP-Out Success… Backup config… MPTS-Mode: Adjust a tuner input – same like in SPTS : Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 13...
  • Page 14 IGS-924 24 DVB Tuner to IP-Out Be patient and sometimes the tuner values appear after you make your Content parsing Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 14...
  • Page 15 IGS-924 24 DVB Tuner to IP-Out By selecting and PARSE it: Back to the tuner menu shows its reception: Follow that for every tuner input and maybe ASI IN: The 2 ASI OUT-ports are double so working in parallel and work only with MPTS. Select which tuner goes out to ASI: The package or Byte mode can be chosen…...
  • Page 16 IGS-924 24 DVB Tuner to IP-Out We select the streaming out: Chose UDP or RTP/RTSP to enable the multicast in parallel with the RTSP unicast (see below in this manual). Check whether you want to parse the CBR-stream which includes the PID8191 Zero packets for the Constant Bitrate or w/o Zeros as VBR-Stream: VBR: No PID8191dec = no Zero packets...
  • Page 17 IGS-924 24 DVB Tuner to IP-Out CBR: with PID 8191dec Because we are just transporting 1:1 the TS Input to a Stream output sehr gutno content can be edited except the BISS key (see below in the manual) Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice...
  • Page 18 IGS-924 24 DVB Tuner to IP-Out Another VBR example: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 18...

  • Page 19: Network Setup

    IGS-924 24 DVB Tuner to IP-Out Network Setup: We assume that the user is familiar with IP settings and already knows his own system to connect the unit to. If you use the Output Streaming: We recommend using 2 separate Switches for MNS and Streams! Attention: The Switch must support IGMP Filtering to not overload the NMS 100 baseT port At least a 100BaseT for the Management NMS RJ45 port and a second one with Gigabit Ethernet 10/100/1000BaseT with at least Layer 2+ with IGMP V2 features.

  • Page 20: Changing A User-Account

    IGS-924 24 DVB Tuner to IP-Out Changing a user-account: Change it to your needs, but do not forget the password otherwise you would need to reset the unit with the Front-panel RESET switch (press it min. 10…15 sec) to factory default. Set Date and time as NTP: Tuner-Setup: Note: DVB-C / T Tuning is slightly different and you need to enter the center- frequency of...
  • Page 21 IGS-924 24 DVB Tuner to IP-Out Example: https://www.lyngsat.com/Astra-1KR-1L-1M-1N.html LOW-Band =9750 MHz LNB-IF frequency - while HIGH-band = 10600.000MHz using 22KHz signal Go to So you see preset values for a C-Band: You should click on EDIT opens following config popup: Author: Ralf December 6, 2022 Riedel...
  • Page 22 IGS-924 24 DVB Tuner to IP-Out Here you need to enter the data for your Satellite Transponder you want to receive: Example ASTRA Satellite (is DiSEqC port A (1) at our Multiswitch): satindex.de - ASTRA You see 4 of 8 are encrypted and cannot be decrypted by this FTA receiver.: Entering its values: Transponder Frequency: 10964 , Low band LNB-IF=9750, 22000 KS/s, 18 V = Horizontal, 22KHz High band switching = OFF because we are in low Band (border is 11700 MHz) Please be patient, the tuners need to swing into it and it takes a moment until the web-IF...
  • Page 23 IGS-924 24 DVB Tuner to IP-Out shows the reception (or not): You are getting some values but do not be irritated because the real reception quality from the Multiswitch directly measured is shown here: And the IGS-tuner shows lower values: because it is not a real measurement instrument –...
  • Page 24 IGS-924 24 DVB Tuner to IP-Out … DVB-C or -T Tuning: Of course, you need the proper DVB-tuner installed instead of SAT: Select your RF-Mode: Then we enter the known parameter: Modulation here DVB-C-J83A/C, Centre Freq.: 650MHz (unusual = no Cenelec-Channel-Plan), 6850 SR, 256QAM constellation, assure the proper dBm (dBµV) Input values in the Coax-cable…...
  • Page 25 IGS-924 24 DVB Tuner to IP-Out Switch off PID-remap and CA filter if your Input RF does not contain encrypted channel PIDs and does not overlap in PID-numbers with other to be received RF Channels in DVB-C/T/T2 or ISDB-Tb or … Select and stream it right: Click on that and you can modify what you like: click on the passed service opens a popup:...
  • Page 26 IGS-924 24 DVB Tuner to IP-Out We recommend not to use same MultiCast-IP Addresses but also different ones and so the ports as well: Bad example for GBE1+2: not recommended Note: The both GbE outputs are some kind of mirrors and are not independent from each other. Note Samsung Hospitality TV’s like to start with 225.x.x.x instead of 224.x.x.x! So 225.0.0.1:10001 …...

  • Page 27: Asi-Input(S): (Igs-924 Has One Only)

    IGS-924 24 DVB Tuner to IP-Out ASI-INPUT(s): (IGS-924 has one only): As soon as you connect the ASI IN-Ports: Now we have configured SAT Inputs and like to stream selected Services to IP out: SPTS output Settings: CA Filter and PID-Remap are ON by default. CA-Filter: If you do not need to filter decrypted unnecessary EMM/ECM PIDs from the Input Streams, please uncheck them.
  • Page 28 IGS-924 24 DVB Tuner to IP-Out BISS embedded decryption needs known keys and the select mode: Popup: The key can later than be selected in the stream – popup: Back to the Input TS from every tuner: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx...
  • Page 29 IGS-924 24 DVB Tuner to IP-Out You need to parse every single Input content by selecting the Input (Tuner/ASI) and PARSE it so the machine detects every single TV/Radio Service from the Inputs select it (red) and PARSE PROGRAM: You will see the number of detected programs: Open the ‘+’: Author: Ralf December 6, 2022 Riedel...
  • Page 30 IGS-924 24 DVB Tuner to IP-Out Than select the services you want to stream and PUSH them to the right: see the content and more info on the right side by open it. with the ‘+’ you see the details: Details of the services are shown and can be partly modified as well as the streaming addresses and protocols.

  • Page 31: Stream Output Settings In Spts

    IGS-924 24 DVB Tuner to IP-Out Now it’s time to configure your Stream output settings in SPTS: by selecting the output service click a popup will follow: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 31...
  • Page 32 IGS-924 24 DVB Tuner to IP-Out you can edit most of them… If you change to RTP / RTSP streaming, a ‘?’ appears. This one gives a hint how to address the Reception of the RTSP-ULR in your Unicast receiver. If you do not see this, enable popups in your browser (here firefox ) settings: Then it shows the hint:...

  • Page 33: Check Rtsp

    IGS-924 24 DVB Tuner to IP-Out Check RTSP: The RTSP-streams can be unicast received from DATA1 out or DATA2 out: rtsp://GE_ip:50000/sx DATA1: x is 0...511(SPTS), 0...11(MPTS); DATA2: x is 512...1023(SPTS), 12...23(MPTS). while in MPTS mode The single streams are /0 … /511 only, but consider which output you have directed them to.
  • Page 34 IGS-924 24 DVB Tuner to IP-Out Now it is Time to SAFE yourself before your kid is cutting the power source accidently: And maybe locally: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 34...

  • Page 35: Playback Info-Channel From Usb-Pen

    IGS-924 24 DVB Tuner to IP-Out Playback Info-Channel from USB-PEN: Need to be formatted as FAT32 (or different … check what’s supported): USB inserted here with one TS file: Self-explaining: Stream: It’s the 26 output: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx...
  • Page 36 IGS-924 24 DVB Tuner to IP-Out Can be VBR or with zeros: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 36...
  • Page 37 IGS-924 24 DVB Tuner to IP-Out VLC check: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 37...

  • Page 38: Software Updates

    Example from its little brother IGS-900 with 16 tuner buts its nearly identically: IRENIS GmbH does not publish Soft- and Firmware-upgrades online. If you face some problems, please sent us a bug-report along with all necessary data of the device(s). Nevertheless, here how it works for this unit: The update files are 3.
  • Page 39 IGS-924 24 DVB Tuner to IP-Out + safe to file: Then update IGS-900_Base_System_Firmware_encr_v01.01.02.07.pkg first: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 39...
  • Page 40 IGS-924 24 DVB Tuner to IP-Out 2. Power off and on. 3. Default IP is 192.168.0.136, enter WEB GUI Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 40...
  • Page 41 IGS-924 24 DVB Tuner to IP-Out -->Firmware - Menu, update IGS-900_16xTuner_IP_cpu_SPTS_v1.21_MPTS_v2.22_20180726.bin and IGS-900_16xTuner_IP_fpga_SPTSv1.50_MPTSv2.30_20171031.fpga. 4. Power off and on again. Finished: Don’t be confused, ‘Hardware-Version’ shows actual FPGA –Software version. 5. Default IP is still 192.168.0.136. Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx...
  • Page 42 IGS-924 24 DVB Tuner to IP-Out If you accidently cannot access your web-Interface by the NMS 100BaseT port, try the DATA ports: It works as well: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 42...
  • Page 43 IGS-924 24 DVB Tuner to IP-Out Check by a DekTec TS-Analyzer: Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 43...

  • Page 44: Annex Mpeg

    IGS-924 24 DVB Tuner to IP-Out ANNEX MPEG MPEG PSI/SI Information’s: We assume, that the user is familiar with all abbreviations mentioned in this manual. Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 44...

  • Page 45: Recommendations

    IGS-924 24 DVB Tuner to IP-Out Recommendations: Multicast capable Switch As a we recommend is the HP (ARUVA) 2530 24G or 48G. (For Floor switches we have an own branded one and support IGMP as well) IGMP should be set to ON in the port configs.
  • Page 46 IGS-924 24 DVB Tuner to IP-Out Registries included below • Local Network Control Block (224.0.0.0 - 224.0.0.255 (224.0.0/24)) • Internetwork Control Block (224.0.1.0 - 224.0.1.255 (224.0.1/24)) • AD-HOC Block I (224.0.2.0 - 224.0.255.255) • RESERVED (224.1.0.0-224.1.255.255 (224.1/16)) • SDP/SAP Block (224.2.0.0-224.2.255.255 (224.2/16)) •...
  • Page 47 IGS-924 24 DVB Tuner to IP-Out Registered port A registered port is a network port (a sub-address defined within the Internet Protocol, in the range 1024–49151) assigned by the Internet Assigned Numbers Authority (IANA) (or Internet Corporation for Assigned Names and Numbers (ICANN) before March 21, 2001, or by USC/ISI before 1998) for use with a certain protocol or application.
  • Page 48 IGS-924 24 DVB Tuner to IP-Out "Source port" is optional in IPv4 (pink background in table). In IPv6 only the source port is optional (see below). Source port number This field identifies the sender's port when meaningful and should be assumed to be the port to reply to if needed.
  • Page 49 IGS-924 24 DVB Tuner to IP-Out any port (even, not odd > 1024) Note: Regarding SAP (Session Announcement Protocol) IPv4 global scope sessions use multicast addresses in the range 224.2.128.0 - 224.2.255.255 with SAP Announcements being sent to 224.2.127.254 Port 9875 (note that 224.2.127.255 is used by the obsolete SAPv0 and MUST NOT be used).

  • Page 50: Installation Guide For F-Connectors

    IGS-924 24 DVB Tuner to IP-Out Installation guide for F-connectors: / Installationshinweis für den F-Anschluß: The LNC –connectors are almost marked as: Die LNB-Anschlüsse sind meist entsprechend gekennzeichnet HH= Horizontal High-Band HL = Horizontal Low-Band = LH VL = Vertical Low-Band = LV VH= Vertical High-Band = HV Electronic equipment is not household waste - in accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27th January 2003 on used electrical and electronic...
  • Page 51 IGS-924 24 DVB Tuner to IP-Out Appendix A Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

  • Page 52: Installation And Safety Instructions / Montage Und Sicherheitshinweise

    IGS-924 24 DVB Tuner to IP-Out Installation and safety instructions / Montage und Sicherheitshinweise • Die beschriebenen Geräte dienen ausschließlich der Installation von Satelliten-Empfangsanlagen. • The equipment described is designed solely for the installation of satellite receiver systems. • Jegliche anderweitige Nutzung oder die Nichtbeachtung dieses Anwendungshinweises hat den Verlust der Gewährleistung bzw.
  • Page 53 IGS-924 24 DVB Tuner to IP-Out • Für die Gerätekühlung muß freie Luftzirkulation möglich sein. Überhitzungsgefahr! • Free circulation of air must be possible to discharge the heat emitted by the unit. Risk of overheating! • Zulässige Umgebungstemperatur -20 bis +50°C •...

  • Page 54: Umrechnungstabelle Dbµv <-> Dbm / Conversions Of Power @ 75Ω

    IGS-924 24 DVB Tuner to IP-Out Conversions of Power @ 75Ω Umrechnungstabelle dBµV <-> dBm / dBmV dBµV 75Ω mW 75Ω -40.75 2.51 8.4E-05 -39.75 2.82 1.1E-04 -38.75 3.16 1.3E-04 -37.75 3.55 1.7E-04 -36.75 3.98 2.1E-04 -35.75 4.47 2.7E-04 -34.75 5.01 3.3E-04 -33.75...
  • Page 55 IGS-924 24 DVB Tuner to IP-Out dBmV dBµV 75Ω mW 75Ω -9.75 89.13 0.106 -8.75 100.00 0.133 -7.75 112.20 0.168 -6.75 125.89 0.211 -5.75 141.25 0.266 -4.75 158.49 0.335 -3.75 177.83 0.422 -2.75 199.53 0.531 -1.75 223.87 0.668 -0.75 251.19 0.841 0.25 281.84...
  • Page 56 IGS-924 24 DVB Tuner to IP-Out Sicherheitshinweise Sicherheitshinweise bitte vor Montage bzw. Inbetriebnahme des Gerätes sorgfältig lesen und befolgen. 1.Installation Gefahr: Das Gerät darf ausschließlich von sachverständigen Personen (siehe EN 60065), installiert und in Betrieb genommen werden. Gefahr: Das Gerät und/oder die Verteilperipherie muss vor Inbetriebnahme gemäß EN 60728-11 vorschriftsmäßig geerdet sein (Potentialausgleich) und bleiben, auch wenn das Gerät ausgebaut wird.

  • Page 57: Contact

    Gefahr eines elektrischen Schlags (Lebensgefahr) und Brandgefahr. Warnung (Bei optischen Sendern sowie deren Verteilperipherie): ziehen Sie den Netzstecker bevor das Gerät ausgebaut wird. Bei Fragen zur Reparatur wenden Sie sich an den IRENIS-Service: E-Mail: info@blankom.de , Kontakt: www.blankom.de 5. Verkauf Vorsicht: Im Falle eines Verkaufs müssen diese Sicherheitshinweise und die Bedienungsanleitung des entsprechenden Geräts dem Käufer ausgehändigt...

  • Page 58: Dvb-C Channel Plan

    IGS-924 24 DVB Tuner to IP-Out DVB-C Channel plan Anyway, we should adjust the QAM Channels according to the ITU Cenelec Channel line ups, so that TV sets can easier tune by using the default channel lists: Example starting with That’s enough for 16 channels.
  • Page 59 IGS-924 24 DVB Tuner to IP-Out Author: Ralf December 6, 2022 Riedel subject to technical changes might happen w/o further notice Filename: Blankom_IGS-924-24_Tuner_to_IP_Gateway_user_manual2022-05RR.docx Page 59...
