Rocstor Y10A267-A1 User Manual

User Manual
5 Port HDMI® Splitter - 4K 60Hz - supports HDR & (EDID)
Includes 5V 1A power adapter - Gray
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
This is a premium Rocstor high-performance HDMI UHD Switcher. This HDMI UHD
Switcher not only has the key-press-switching function, but also has intelligent
function.
This HDMI UHD Switcher routes high definition video (in multiple resolutions up to
4kx2k@60Hz) and digital audio from any one of the several sources to display units. All
inputs accommodate the connections of the high definition video sources simultane-
ously, compatible well for DMR-BZT9600, BDP-LX88, SONY FMP-X10-001, nVidia
GTX970,GTX980 series, output sends the high definition audio/video signals to a high
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the Packaging:
• Main unit x1
• User Manual x1
• Remote control
• 5V/1A Power Adapter
System Requirement
1. Connect the HDMI input source into the HDMI Switcher
*Please refer to connection diagram section
2. Press the button to select the inputs
3. It is recommended to give a 5V DC power supply to the switch unit.
Attention: Insert / Extract cable gently.

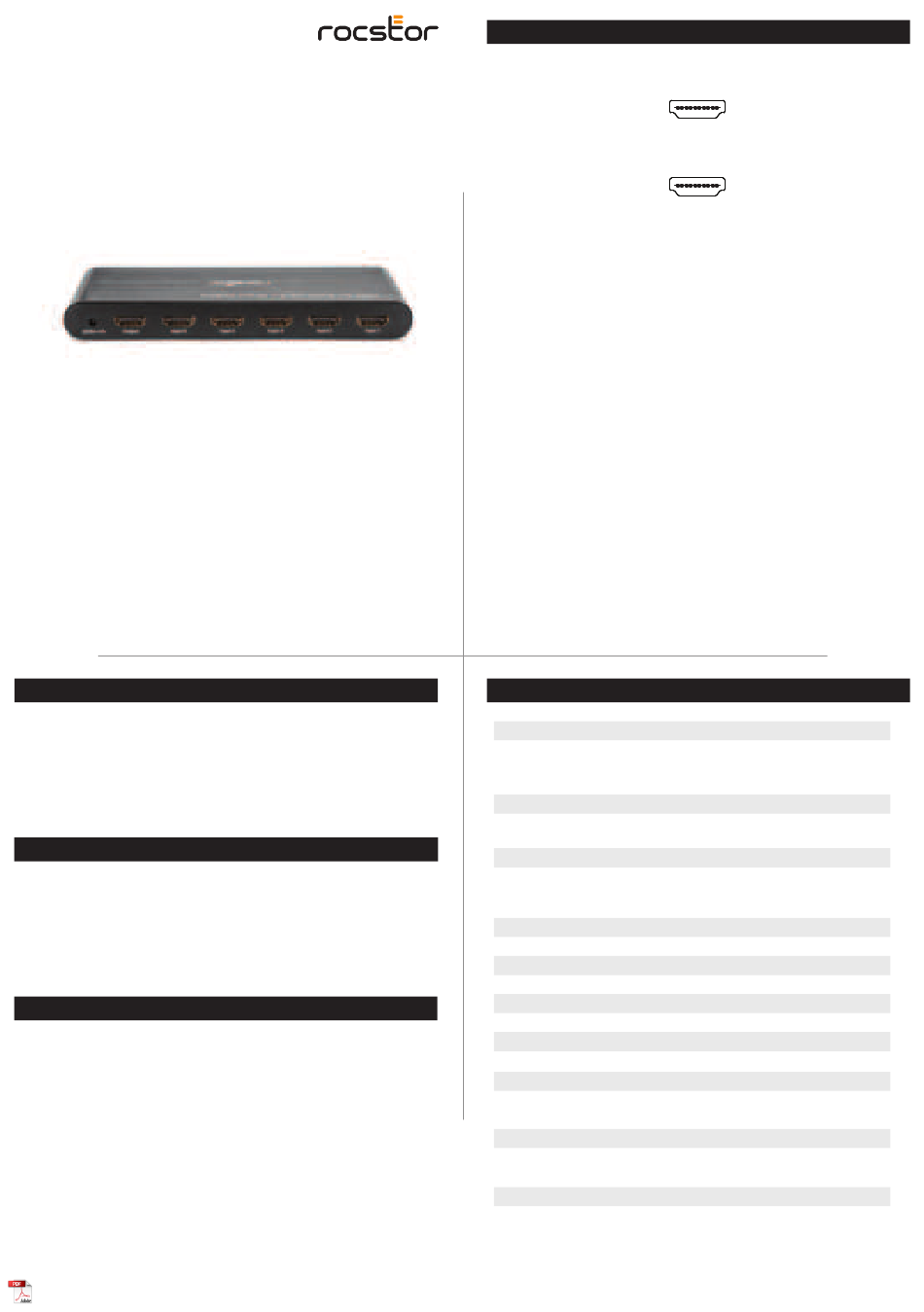

Y10A267-A1
®
Features
Input:
HDMI x4
Output:
HDMI x1
• Supports to switch 5 HDMI sources to 1 HDMI display
• Multifunctional on switching: intelligent or mechanical
• Supports highest video resolution up to 4kx2k@60Hz
• Supports Full 3D
• HDCP Pass through
• EDID bypass
Specification
Input / Output Connector
Input
Output
Maximum Single Link Range
Operating Frequency
Vertical Frequency Range
Video Amplifier Bandwidth
Resolutions(HDTV)
Interlaced(50&60Hz)
Progressive(50&60Hz)
Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certifications
Mechanical
Size(L-W-H)
Weight(Net)
Power Requirement
External Power Supply
Power Consumption
Accessory
User Manual
HDMI x5
HDMI 1x
Full 3D and 4kx2k@60Hz
24/30/50/60Hz
6Gbps/600MHz
480i,576i,1080i
480p,576p,720p,1080p,
4kx2k@30HZ, 4kx2k@60HZ,
2 Year
0°C to + 45°C - (32°F to + 113°F)
10% to 90 % RH (no condensation)
-10°C to + 70°C - (14°F to + 158°F)
10% to 90 % RH (no condensation)
FCC, CE
158x60x18.5mm - (6.2"x2.3"x7.2")
210.7g - (0.46Lbs)
5V/1A
1.8W
English Version
