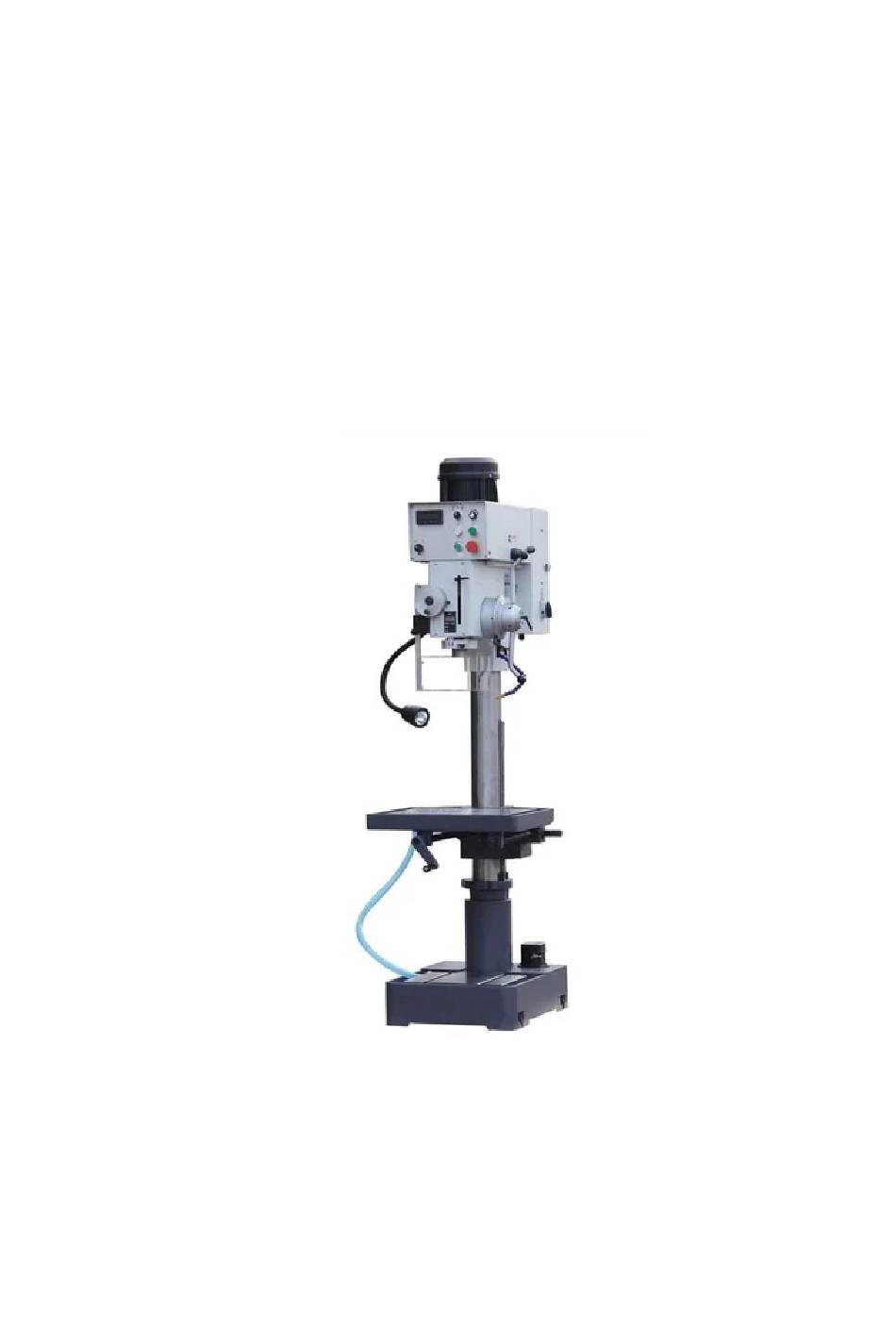

- Page 1 Vertical Drilling Machine MODEL DP-40 OPERATION MANUAL...
-
Page 2: Safety Symbol
Foreword WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. This user manual has been prepared for those who use the machine or who are responsible for maintenance and service of the machine. Keep this manual properly for future reference. Always make this manual easily available for all those concerned. -
Page 3: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 SAFETY RULES FOR ALL MACHINES WEAR PROPER APPAREL. (1.) Always wear eyes protection. Also use face or dust mask if cutting operation is dusty. Wear proper apparel. Do not wear loose clothing, gloves, rings, bracelet etc., there (2.) is hazard of entanglement. - Page 4 1.2 ADDITIONAL SAFETY RULES FOR THE AIGUILLE: (1.) Make sure the rotating direction of the aiguille is right. The direction of the aiguille should be in accordance with the direction mark on the machine. (2.) Make sure aiguille speed is set correctly for the drill. (3.) Check and use proper aiguille including aiguille size and type.
- Page 5 2.3 Requirement of power supply The input power supply of the machine is AC400V, 50 Hz. 3/PE. 1) Fluctuating range: - Voltage The steady-state AC power supply is 0.9～1.1 times of the rated value. - Frequency 0.99～1.01 times of rated frequency (continuous working) 0.98～1.02 times of rated frequency(short period working) - Harmonics The sum of 2nd-5th distorted harmonic must not exceed 10% of RMS of voltage, maximum 2% of RMS of line voltage is allowed to add to the sum of 6th-30th harmonic.
-
Page 6: Packing And Transportation
2.7 .Noise information： We evaluated the noise according to EN ISO 3746 under following condition: idle running with the spindle maximum rotation speed. The sound power level: 90.2dB(A); The sound pressure level:77.6 dB(A). The figures quoted are emission levels and are not necessarily safe working levels. Whilst there is a correlation between the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required. - Page 7 Warning: - Tighten all locks before operating. - ALWAYS keep proper footing & balance while moving this machine, and only use heavy-duty fibre belt to lift up the machine. Fig2 Fig1 4 Cleaning All bright parts of the machine are treated with rusty prevention. By removing this, be careful not to use too strong cleaning compound.
-
Page 8: Part List
6.PART LIST... - Page 9 Drawing number/Code Part # Description Size Q’ty name TX530-1001 Base GB/T5782 Hex Bolt M12X65 GB/T93 Spring Washer TX530-1002 Working Table TX530-1020 Cover GB/T70.1 Hex Screw M6X12 GB/T95 Washer Coolant Pump 45W2m GB/T70.1 Hex Screw M5X10 GB/T96.1 Bigger Washer TX530-1019 Colum sleeve TX530-1026 Copper block GB/T77...
- Page 10 TX530-1006 Gear box TX530-1012 Connecting sleeve GB/T95 Flat washer GB/T6170 GB/T5781 screw M6X30 GB/T879.1 Spring pin 4X26 TX530-1013 Gear 1 GB/T276 bearing 6202-2z TX530-1011 Bearing base GB/T70.1 Hex Screw M6X20 GB/T93 Spring washer GB/T70.1 Hex bolt M8X50 GB/T77 Hex bolt M5X8 TX530-1007 Connecting sleeve...
- Page 12 TX530-2001 Head assembly TX530- Blank cover Photos 3 GB/T6170 Hex nut TX530-2039 Locking block TX530-2040 Locking lever TX530-2010 Feed Handle GB/T7271.5 Long handle sleeve M12X60 TX530-2008 Seat for feed handle GB/T1095 6X20 GB/T77 Set screw M5X10 GB/T894.1 Circlips GB/T70.1 Hex socket cap screw M8X20 TX530-2009 Shaft sleeve...
- Page 13 TB36-3013 Lable Digital tachometer TB36 display T28Ⅳ-2001 Digital seat GB/T70.1 Hex socket cap screw M5X20 Digital scale TX530-2019 Micro switch top bracket GB/T70.1 Hex socket cap screw M5X20 Micro switch lower TX530-2020 bracket Micro switch TX530-2002 Inner sleeve TX530-2003 Fixed seat M4X25 GB/T818 Cross recess head screw...
- Page 14 TX530-2011 Feed gear shaft GB/T1095 6X20 M5X8 GB/T818 Cross recess head screw GB/T879.1 Spring pin TX530-2012 Connecting disc M5X20 GB/T818 Screw TX530-2013 Coil Spring TX530-2014 Coil Spring box M6X25 JB/T7274.4 Knob TX530-2035 Left rear cover GB/T9074.5 Pain washer assembly M5X12 GB/T70.1 Bolt M8X12...
- Page 15 GB/T9074.5 Pain washer assembly M5X12 GB/T70.1 Screw M10X16 TX530-2041-1 Motor support seating TX530-2028 Middle Belt wheel GB/T77 Screw M8X8 GB/T70.1 Screw M8X35 GB/T93 Spring Washer GB/T70.1 Screw M8X35 GB/T118 6X40 GB/T13871.1 Oil seal GB/T893.1 Internal Circlip GB/T276 Bearing 6007-2z TX530-2041-2 Shaft GB/T1095 Flat Key...
- Page 16 TX530-2041-10 Lower Gear Steel Ball SΦ8 TX530-2041-11 Spring GB/T77 Screw M10X10 GB/T894.1 external circlip GB/T894.1 external circlip GB/T276 Bearing 6202-2z...
-
Page 17: Electrical Drawing
7. Electrical drawing Note: This manual is only for your reference. Owing to continuous improvement of the machines, Changes may be made at any time without obligation on notice. Please note the local voltage for operating this kind of electric machine...
