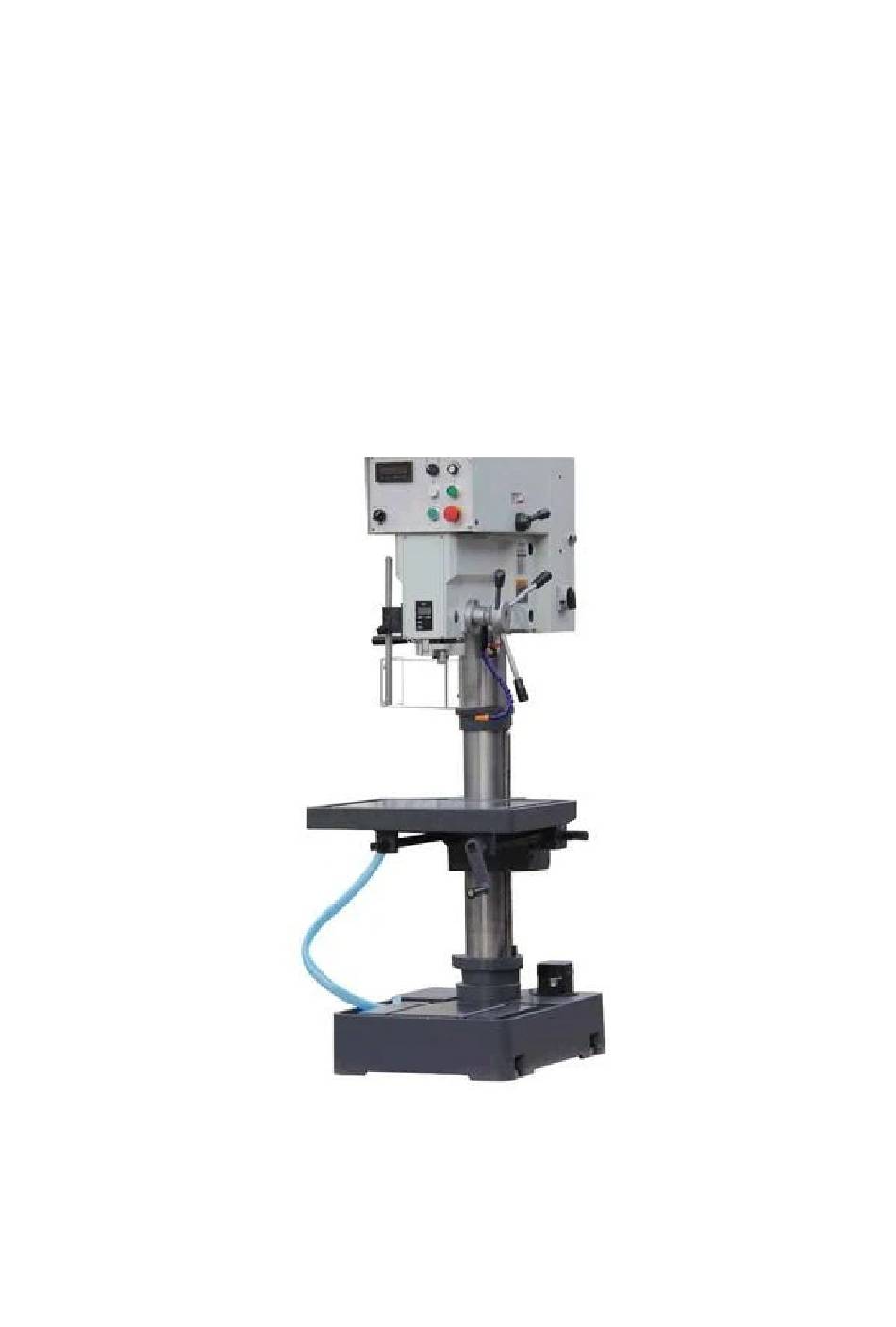

Vertical Drilling Machine
OPERATION MANUAL
MODEL DP-32
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-32 and is the answer not in the manual?

Questions and answers

Summary of Contents for KAKA Industrial DP-32

  • Page 1 Vertical Drilling Machine OPERATION MANUAL MODEL DP-32...
  • Page 2: Safety Symbol

    Foreword WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. This user manual has been prepared for those who use the machine or who are responsible for maintenance and service of the machine. Keep this manual properly for future reference. Always make this manual easily available for all those concerned.
  • Page 3: Safety Instructions

    1 SAFETY INSTRUCTIONS 1.1 SAFETY RULES FOR ALL MACHINES WEAR PROPER APPAREL. (1.) Always wear eyes protection. Also use face or dust mask if cutting operation is dusty. Wear proper apparel. Do not wear loose clothing, gloves, rings, bracelet etc., there (2.) is hazard of entanglement.
  • Page 4 1.2 ADDITIONAL SAFETY RULES FOR THE AIGUILLE: (1.) Make sure the rotating direction of the aiguille is right. The direction of the aiguille should be in accordance with the direction mark on the machine. (2.) Make sure aiguille speed is set correctly for the drill. (3.) Check and use proper aiguille including aiguille size and type.
  • Page 5 2.3 Requirement of power supply The input power supply of the machine is AC400V, 50 Hz. 3/PE. 1) Fluctuating range: - Voltage The steady-state AC power supply is 0.9~1.1 times of the rated value. - Frequency 0.99~1.01 times of rated frequency (continuous working) 0.98~1.02 times of rated frequency(short period working) - Harmonics The sum of 2nd-5th distorted harmonic must not exceed 10% of RMS of voltage, maximum 2% of RMS of line voltage is allowed to add to the sum of 6th-30th harmonic.
  • Page 6: Packing And Transportation

    2.7 .Noise information: We evaluated the noise according to EN ISO 3746 under following condition: idle running with the spindle maximum rotation speed. The sound power level: 90.2dB(A); The sound pressure level:77.6 dB(A). The figures quoted are emission levels and are not necessarily safe working levels. Whilst there is a correlation between the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required.
  • Page 7 - ALWAYS keep proper footing & balance while moving this machine, and only use heavy-duty fibre belt to lift up the machine. Fig2 Fig1 4 Cleaning All bright parts of the machine are treated with rusty prevention. By removing this, be careful not to use too strong cleaning compound.
  • Page 8: Part List

    10 PART LIST...
  • Page 9 Part # Description Size Q’ty Base Hex Bolt M12X65 Spring Washer Working Table Cover Hex Screw M6X12 Washer Coolant Pump 45W2m Hex Screw M5X10 Bigger Washer Colum sleeve Copper block Hex Bolt M12X20 Colum sleeve cover Bigger washer Cross screw M8X16 Washer Hex Bolt...
  • Page 10 Connecting sleeve Flat washer screw M6X30 Spring pin 4X26 Gear 1 bearing 6202-2z Bearing base Hex Screw M6X20 Spring washer Hex bolt M8X50 Hex bolt M5X8 Connecting sleeve Hex Bolt M6X10 Ring bearing 6005-2z Hex Bolt M6X10 Gear 2 Bearing 51102 Worm 5X20...
  • Page 12 Head assembly Blank cover Hex nut Locking block Locking lever Feed Handle Long handle sleeve M12X60 Seat for feed handle 6X20 Set screw M5X10 Circlips Hex socket cap screw M8X20 Shaft sleeve Cooling pipe bracket Hex socket cap screw M8X20 Flat washer Data lable G1/4...
  • Page 13 Lable Digital tachometer display Digital seat Hex socket cap screw M5X20 Digital scale Micro switch top bracket Hex socket cap screw M5X20 Micro switch lower bracket Micro switch Inner sleeve Fixed seat M4X25 Cross recess head screw Star handle M8X32 Copper block Ajustable fixing handle Hex socket cap screw...
  • Page 14 Feed gear shaft 6X20 M5X8 Cross recess head screw Spring pin Connecting disc M5X20 Screw Coil Spring Coil Spring box M6X25 Knob Left rear cover Pain washer assembly M5X12 Bolt M8X12 Washer Speed display card board Speed display bracket Bolt M5X12 Spring washer M4X20...
  • Page 15 Pain washer assembly M5X12 Screw M10X16 Motor support seating Middle Belt wheel Screw M8X8 Screw M8X35 Spring Washer Screw M8X35 6X40 Oil seal Internal Circlip Bearing 6007-2z Shaft Flat Key 8X7X20 Gear external circlip Bearing 6202-2z Flat Key 8X7X56 Back shaft Flat Key 8X7X36 Bearing...
  • Page 16 Lower Gear Steel Ball SΦ8 Spring Screw M10X10 external circlip external circlip Bearing 6202-2z...
  • Page 17: Electrical Drawing

    14 Electrical drawing...
