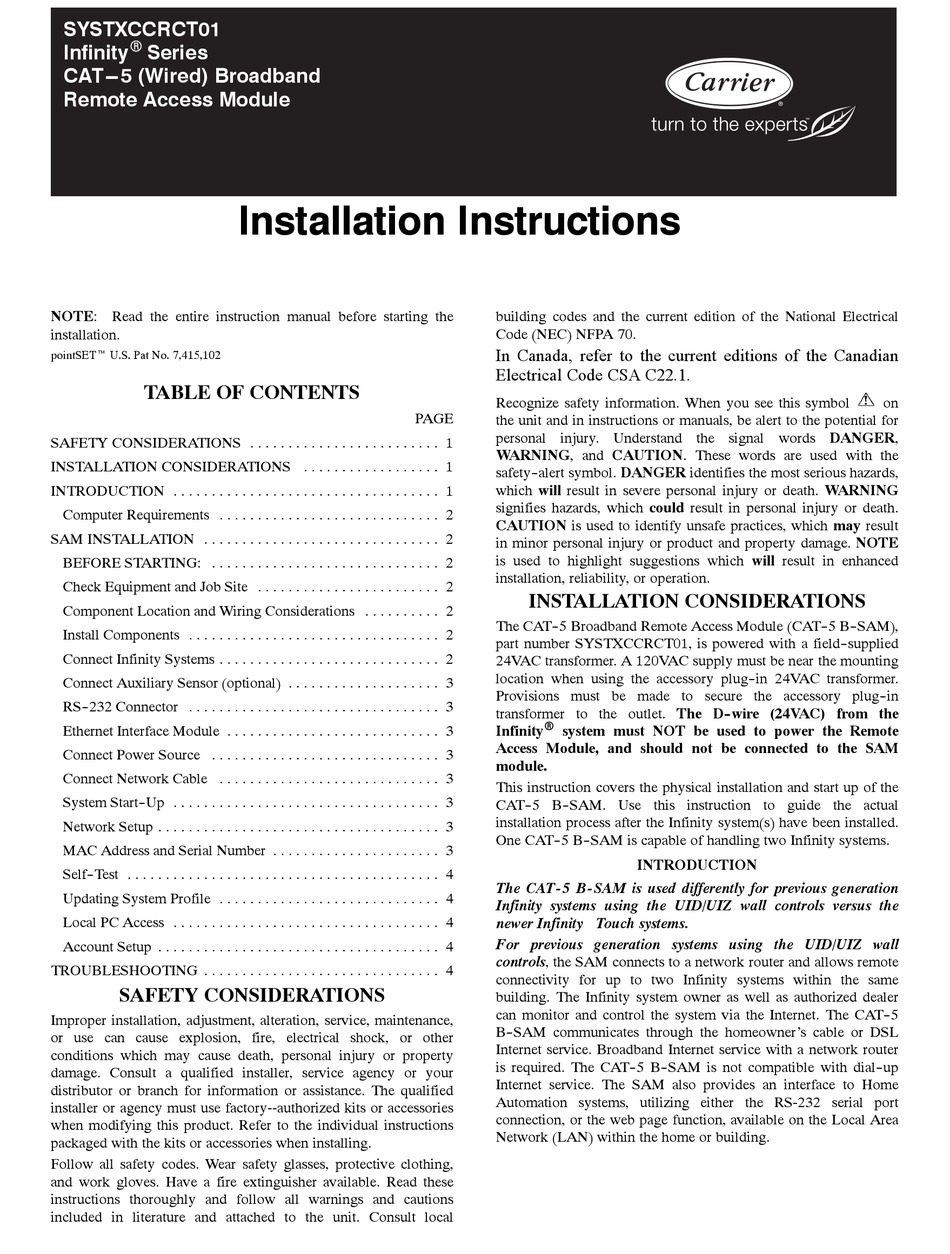

Carrier CAT-5 B-SAM Installation Instructions Manual

SYSTXCCRCT01
Infinity Series
R
CAT ---5 (Wired) Broadband
Remote Access Module
NOTE: Read the entire instruction manual before starting the
installation.
pointSETt U.S. Pat No. 7,415,102
TABLE OF CONTENTS

SAFETY CONSIDERATIONS

INSTALLATION CONSIDERATIONS

INTRODUCTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Computer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sam Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before Starting: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Equipment And Job Site
Component Location And Wiring Considerations
Install Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect Infinity Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect Auxiliary Sensor (Optional)
RS- -232 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet Interface Module . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect Network Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Start- -Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mac Address And Serial Number
Self- -Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Updating System Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Local Pc Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Account Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory--authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings and cautions
included in literature and attached to the unit. Consult local
Installation Instructions
PAGE
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
building codes and the current edition of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian
Electrical Code CSA C22.1.
Recognize safety information. When you see this symbol
the unit and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
1
WARNING, and CAUTION. These words are used with the
1
safety- -alert symbol. DANGER identifies the most serious hazards,
which will result in severe personal injury or death. WARNING
1
signifies hazards, which could result in personal injury or death.
2
CAUTION is used to identify unsafe practices, which may result
2
in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
2
installation, reliability, or operation.
2
INSTALLATION CONSIDERATIONS
2
The CAT- -5 Broadband Remote Access Module (CAT- -5 B- -SAM),
2
part number SYSTXCCRCT01, is powered with a field- -supplied
2
24VAC transformer. A 120VAC supply must be near the mounting
location when using the accessory plug- -in 24VAC transformer.
3
Provisions must be made to secure the accessory plug- -in
3
transformer to the outlet. The D- -wire (24VAC) from the
3 Infinity R system must NOT be used to power the Remote
Access Module, and should not be connected to the SAM
3
module.
3
This instruction covers the physical installation and start up of the
3
CAT- -5 B- -SAM. Use this instruction to guide the actual
installation process after the Infinity system(s) have been installed.
3
One CAT- -5 B- -SAM is capable of handling two Infinity systems.
3
4
The CAT- 5 B- SAM is used differently for previous generation
4
Infinity systems using the UID/UIZ wall controls versus the
4
newer Infinity Touch systems.
For previous generation systems using the UID/UIZ wall
4
controls, the SAM connects to a network router and allows remote
4
connectivity for up to two Infinity systems within the same
building. The Infinity system owner as well as authorized dealer
can monitor and control the system via the Internet. The CAT- -5
B- -SAM communicates through the homeowner's cable or DSL
Internet service. Broadband Internet service with a network router
is required. The CAT- -5 B- -SAM is not compatible with dial- -up
Internet service. The SAM also provides an interface to Home
Automation systems, utilizing either the RS-232 serial port
connection, or the web page function, available on the Local Area
Network (LAN) within the home or building.
INTRODUCTION
on
