Triton Purificare TRI Series Manual

Ultraviolet disinfection systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ultraviolet Disinfection Systems
ENHANCED DISINFECTION
UV%:
100%
DAYS:
364
ENHANCED DISINFECTION
TRI Series
Installation, Operation and
Maintenance Manual
CAUTION: Read and Follow all safety rules and
operating instructions before first use of product.
Dealer Info:
MODELS:
TRI-8
TRI-12
TRI-20
Revised: 6/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Purificare TRI Series and is the answer not in the manual?

Questions and answers

Related Manuals for Triton Purificare TRI Series

Summary of Contents for Triton Purificare TRI Series

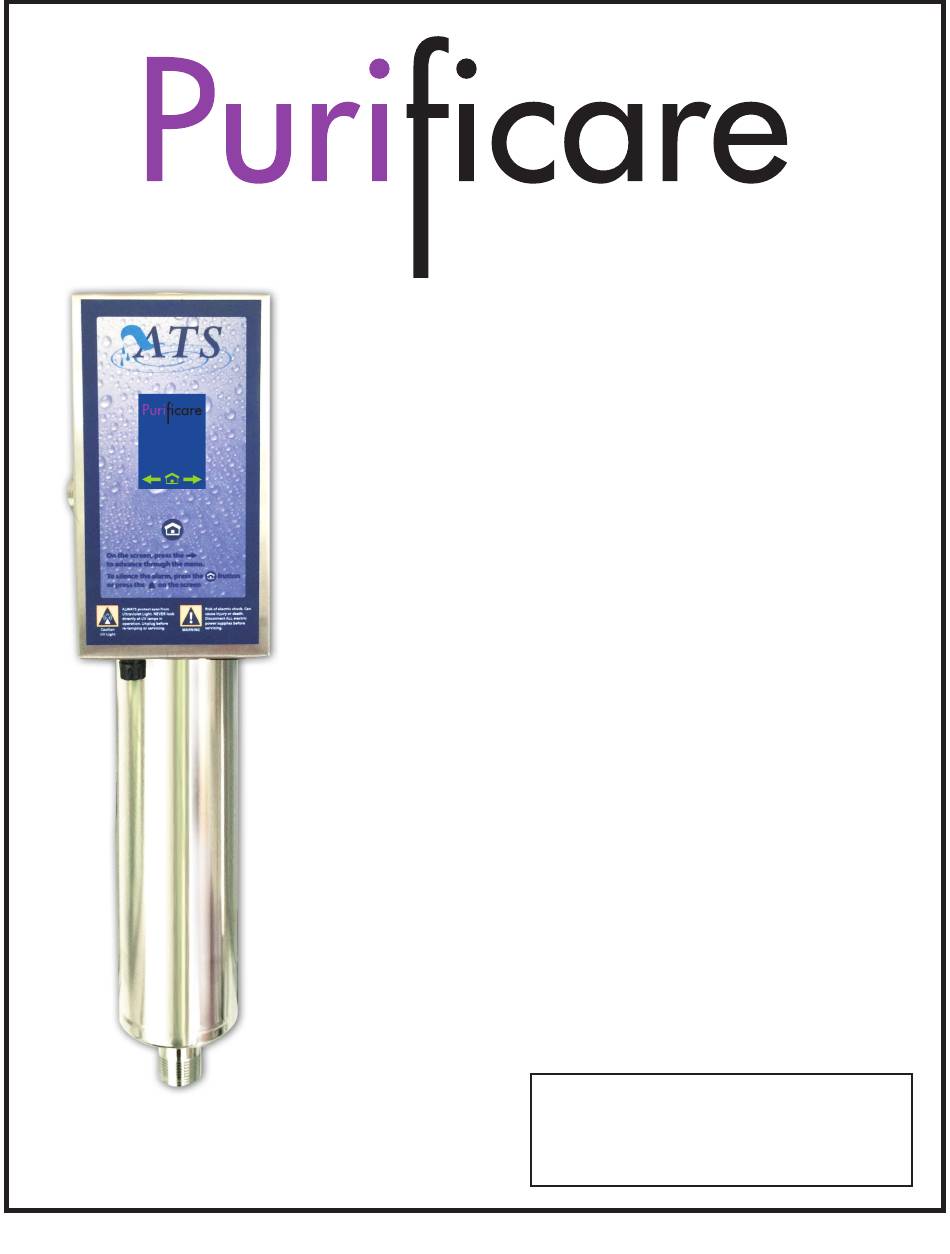

  • Page 1 ENHANCED DISINFECTION TRI Series Ultraviolet Disinfection Systems ENHANCED DISINFECTION UV%: 100% DAYS: MODELS: TRI-8 TRI-12 TRI-20 Installation, Operation and Maintenance Manual CAUTION: Read and Follow all safety rules and operating instructions before first use of product. Dealer Info: Revised: 6/2015...
  • Page 2 Purificare ©2015...

  • Page 3: Table Of Contents

    Table of Contents Installation Instructions: General Safety Instructions ................4 Function / Description ..................5 Installation ....................... 6 Installation Diagram ..................7 Electronic Controls & Startup Procedures ............8 Sanitation Procedures: ....................10 Maintenance: ........................12 Unit Parts Breakdown: ....................13 Circuit Board Layout: ......................

  • Page 4: General Safety Instructions

    General Safety Instructions WARNING - to guard against injury, basic safety 1. SAVE THESE INSTRUCTIONS. precautions should be observed, including the 2. WARNING: The light given off by this unit can cause following: serious burns to unprotected eyes and skin. Never look directly at a lit UV lamp.
  • Page 5 Function The function of this ultraviolet disinfection unit is to provide in excess of 99.9% reduction of all water borne pathogenic (disease causing) bacteria. Model ATS series have a number code designation correspondent to the maximum gpm (gallons per minute) flow rate of the unit. I.E.- TRI-8 has a maximum flow capacity of 8 gpm. Applications: TRI Units are designed to destroy micro-organisms in water supplies.

  • Page 6: Installation

    Installation STEP BY STEP INSTALLATION: GENERAL CONSIDERATIONS FOR ALL DISINFECTION UNITS: 1. Turn off the water before cutting into the water line. 2. Assess the installation (i.e. type of pipe, size of lines, etc.) and obtain necessary plumbing fittings for installation. 1.

  • Page 7: Installation Diagram

    Installation Diagram Purificare ©2015...

  • Page 8: Electronic Controls & Startup Procedures

    Electronic Controls & Startup Procedures Dealer Information - This screen contains dealer OPERATING INSTRUCTIONS contact information. If you touch the right green arrow Your UV System is equipped with the ATS-287-2 UV you will see a scanable QR code which can be scanned Lamp Detector and Timer circuit board which is designed with a smart phone to obtain dealer information.
  • Page 9 Sample Screen Shots fig 1 fig 1A fig 1B fig 1C fig 2 fig 2A fig 3 fig 1D LAMP LIFE LOW! SNOOZE CALL DEALER fig 3A fig 4 fig 5 fig 5A fig 6 Purificare ©2015...

  • Page 10: Sanitation Procedures

    Sanitation Procedure HOW TO DISINFECT A WATER SYSTEM: continue to run pump if water doesn’t flow. Every new well, or existing water supply system that B. The high level of chlorine required to sanitize has been disrupted for service or repair, should be a water system is corrosive to most metals and disinfected before it is returned to use.
  • Page 11 Sanitation Procedure Continued TOO MUCH CHLORINE IS BETTER THAN Table 1 TOO LITTLE: **In situations where it is inconvenient NOTE: to determine depth of water or diameter of a drilled well, a minimum of 1/2 gallon of household bleach may be Pellets Weight = 1.14 gram each, 25 pellets/oz., 400 pellets/lb.

  • Page 12: Maintenance

    Maintenance QUARTZ SLEEVE: container. It is important to handle the quartz sleeve with care to prevent breakage. Make certain that all finger prints Installation of the Quartz Sleeve: are wiped clean before reinstalling (see installation of the quartz sleeve). Replace O-Ring [ATS8-544(1)] every time Always handle quartz sleeves carefully to prevent breaking a quartz sleeve is cleaned or replaced.
  • Page 13 Lamp Installation FIG 3. FIG 2. FIG 1. Purificare ©2015...
  • Page 14 Parts Breakdown TRI-8 ITEM NO. PART NUMBER DESCRIPTION QTY. ATS-476D Domed Quartz ATS4-450 UV Lamp ATS-268 Top Mounting Bracket ATS-5172 Sightport Lens Orange .7" OD Viewport O ATS-5173 Ring ATS-5171 Sightport Nut ATS5-409 Brass End Nut ATS8-544 Orange 1.2" OD ORing ATS5-410 Lock Nut ATS8-546...
  • Page 15 Parts Breakdown - TRI-12 ITEM NO. PART NUMBER DESCRIPTION QTY. ATS1-759D Domed Quartz ATS4-739 UV Lamp ATS-5172 Sightport Lens Orange .7" OD Viewport O ATS-5173 Ring ATS-5171 Sightport Nut ATS5-409 Brass End Nut ATS8-544 Orange 1.2" OD ORing ATS5-410 Lock Nut Lock Nut ATS8-546 Black 1.5"...
  • Page 16 Parts Breakdown - TRI-20 ITEM PART NUMBER DESCRIPTION QTY. ATS-832D Domed Quartz ATS4-810 UV Lamp ATS-5172 Sightport Lens Orange .7" OD Viewport O ATS-5173 Ring ATS-5171 Sightport Nut ATS5-409 Brass End Nut ATS8-544 Orange 1.2" OD ORing ATS5-410 Lock Lock Nut ATS8-546 Black 1.5"...

  • Page 17: Circuit Board Layout

    Circuit Board Layout Purificare ©2015...

  • Page 18: Wiring Diagram

    Wiring Diagram Purificare ©2015...

  • Page 19: Troubleshooting

    Troubleshooting TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION U.V. lamp will not light Check input voltage if below Install a voltage regulator or above 120 volts Line cord disconnected Check, replace or outlet defective Defective U.V. lamp Replace Defective lamp ballast Check output voltage Replace ballast Loose open-circuit wire Trace out and repair...

  • Page 20: Sterile Water Sample Precedures

    Sterile Water Sample Procedures SUGGESTED PROCEDURE FOR OBTAINING STERILE WATER SAMPLES: Prior to taking the water sample, be sure to have on hand an adequate supply of sterile bottles (as shown in fig 1). These sterile bottles should be obtained from a reputable laboratory and should have been autoclaved and contained within a plastic outer wrapping.

  • Page 21: Specifications

    Specifications 3/4” FNPT / 1” MNPT 0.03 0.25 21” x 3.5” x 3.5” 304 SS 9 lbs. TRI - 8 0.03 0.25 3/4” FNPT / 1” MNPT 32” x 3.5” x 3.5” 304 SS 18 lbs. TRI- 12 3/4” FNPT / 1” MNPT 0.03 0.25 35”...

  • Page 22: Notes

    Notes Purificare ©2015...
  • Page 23 Notes Purificare ©2015...

  • Page 24: Warranty

    Triton will inspect, test, and determine the cause of defective components or parts. Triton at its sole discretion will make necessary repairs to or replace components. Triton will determine the extent of the warranty coverage and the proper warranty credit to be applied. The return freight will be credited to the customer for warranty repairs or replacements.
