Summary of Contents for Prorack K528

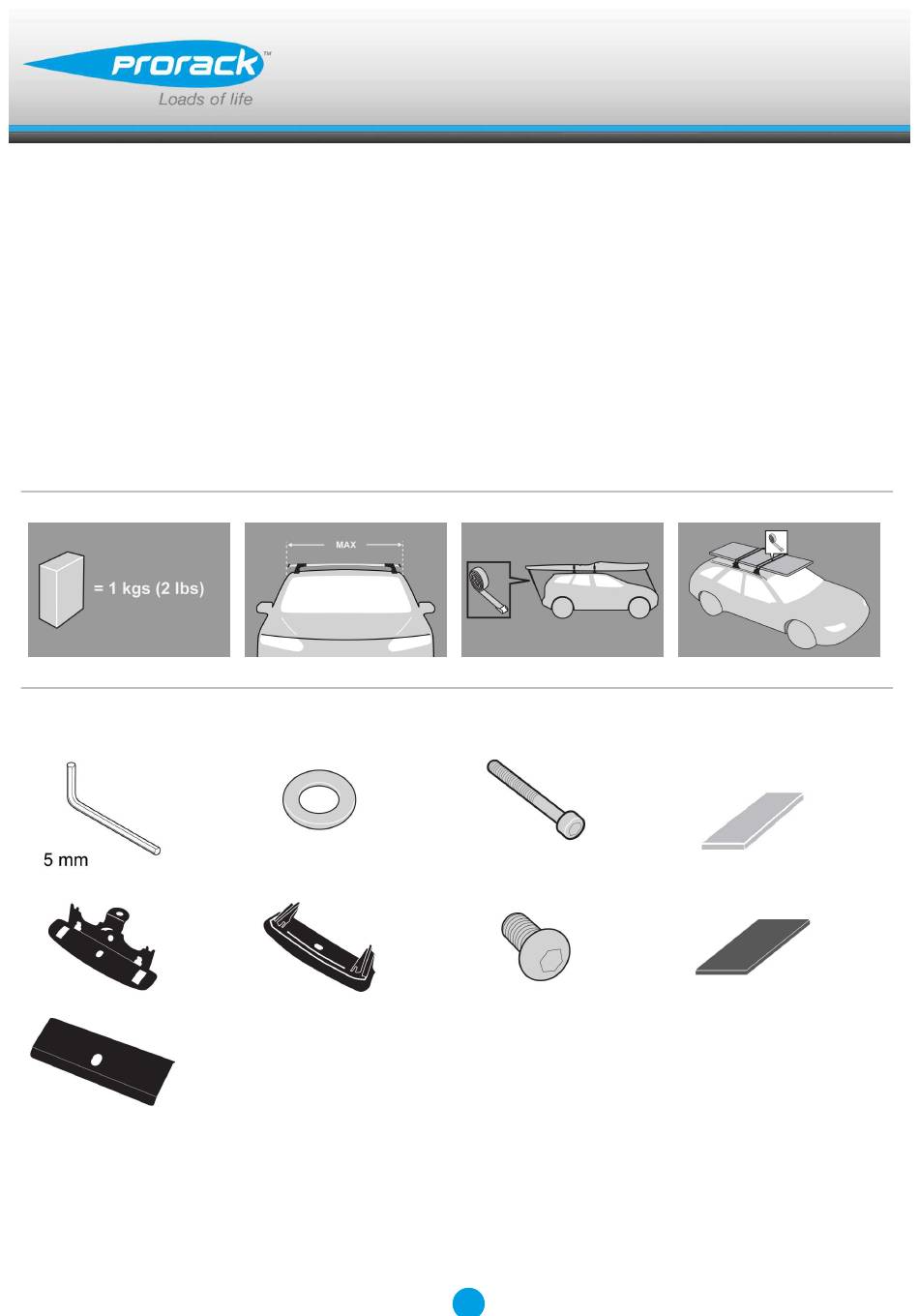

- Page 1 K528 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2C...
- Page 2 Fitting Kit K528 MAX kgs (lbs) Nissan Stagea M35, 5dr Wagon 01-07 75 kgs (165 lbs) 75 kgs (165 lbs) Stagea M35, 5dr Wagon 01-07 75 kgs (165 lbs) 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K528 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K528 Use hex screwdriver to reverse adjusting screw 10 turns. Ensure each end of the crossbar is adjusted equally. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Adjust crossbar in or out to suit vehicle.
- Page 5 Fitting Kit K528 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
- Page 6 Fitting Kit K528 Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Assemble metal loadplate and rubber pad from the fitting kit. Repeat for all four items. Assemble metal loadplate into leg. Ensure loadplate interlocks with the leg.
- Page 7 Fitting Kit K528 Using short capscrew and washer, secure assembly onto leg (use Hex Screwdriver supplied with crossbar to assist) Repeat for all legs. Fitment Open or remove fixed-point covers. Store items away in a safe place. Use fixed-point rear mounting hole.
- Page 8 Fitting Kit K528 Fit cover plates over opening. Slot in cover should line up over rear fixed point thread. Leave loose until both sides have had the screw fitted. Fit the M6 socket head screw and M6 washer. Tighten foot and cover plate down using...
- Page 9 Fitting Kit K528 Ensure that the cover plate and foot sit firmly on the roof. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 10: Maintenance
Fitting Kit K528 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K528 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K528 Stagea, 5dr Wagon 01-07 (NZ) -135mm 625mm 815mm 793mm -5 -5/16ths" 24 5/8ths" 32 1/16ths" 31 1/4ths" Stagea, 5dr Wagon 01-07 (AU) -135mm 625mm 815mm 793mm -5 -5/16ths" 24 5/8ths" 32 1/16ths" 31 1/4ths"...
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
