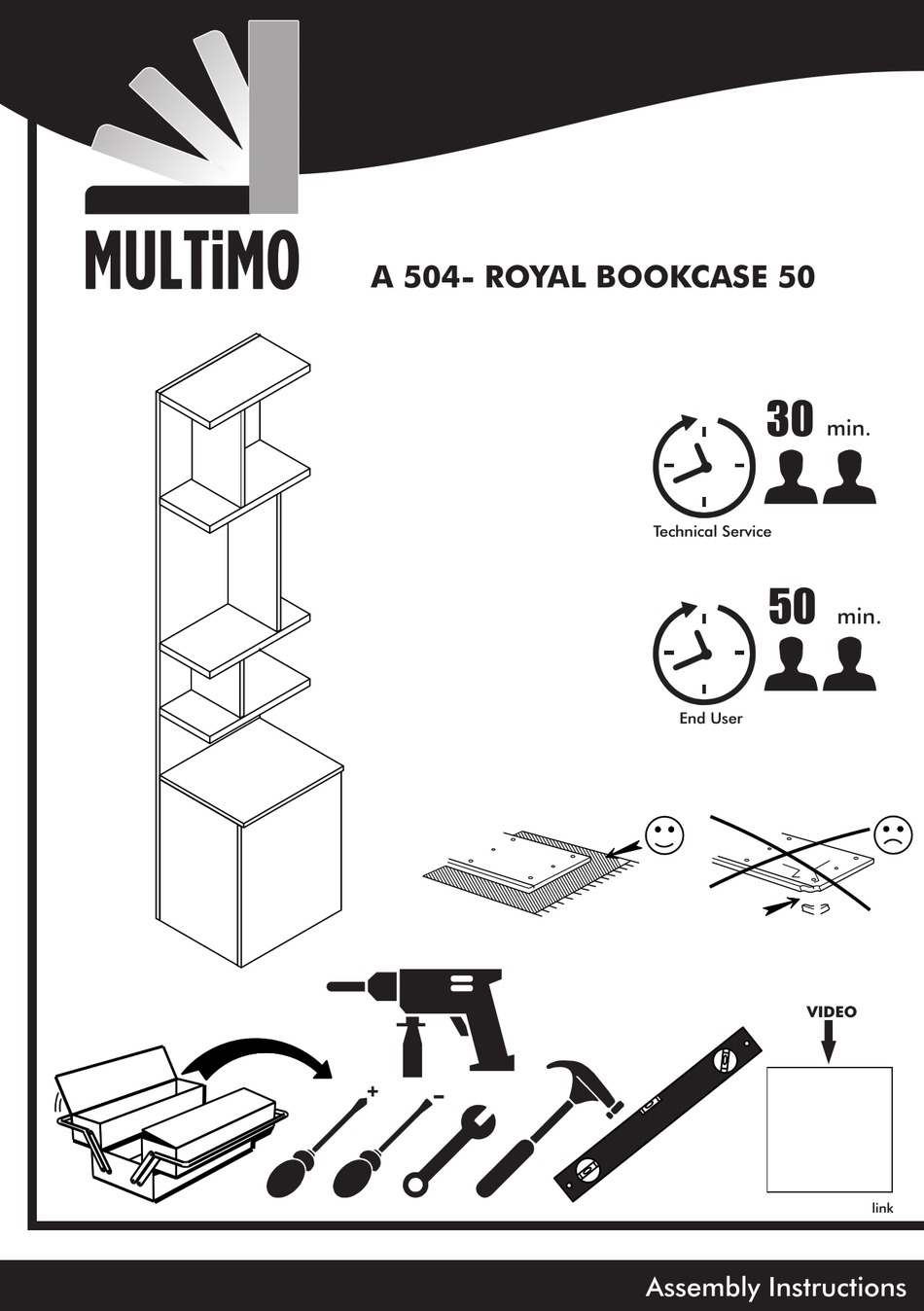

- Page 1 A 504- ROYAL BOOKCASE 50 min. Technical Service min. End User VIDEO link Assembly Instructions...
- Page 2 (inch) (mm) Track Title Piece Piece T hickness L ength Width T hick H eight M ost 2280 1,18 89,76 19,69 18mm 0,71 19,69 9,84 30mm 1,18 16,54 9,65 18mm 1,18 23,62 9,65 18mm 1,18 9,84 9,65 18mm 1,18 24,02 15,35 18mm 1,18...
- Page 3 Page 2...
- Page 4 STEP 1 MNX - 02 KVL 01 KVL - 01 X 4 MNX - 02 X 4 KVL - 01 X 4 C / D KVL - 01 X 4 KVL - 01 X 8 KVL - 01 X 2 MNX - 02 X 4 VIDEO F LEFT / F RIGHT...
- Page 5 STEP 2 MNG - 01 210° STEP 3 210° MNG - 01 VIDEO link Page 4...
- Page 6 STEP 4 TS- 01 x 2 VD - 03 X 4 VD - 03 X 4 STEP 5 AMR - 01 (120N) VD - 03 X 2 VD - 03 X 3 VIDEO link Page 5...
- Page 7 STEP 6 CT - 02 X 2 AL - 01 STEP 7 VDA - 01 X 3 VIDEO AL - 01 link Page 6...
- Page 8 STEP 8 VDA - 01 X 3 AL - 01 STEP 9 VDA - 01 X 3 VIDEO AL - 01 link Page 7...
- Page 9 STEP 10 VDA - 01 X 3 AL - 01 VIDEO link Page 8...
- Page 10 STEP 11 VIDEO VTB - 01X 8 BRK - 01 X 2 link Page 9...
- Page 11 With seasonal humidity change please inspect the interior and exterior of the furniture for deformation and/or discoloration. Before any un-mounting or disassembly please contact Multimo Beds for technical support and instructions. Failure to properly detach may result in personal injury and damage to property.
- Page 12 www.mult mobeds.com...
