Multimo ROYAL AUTOMATIC A 511 Assembly Instructions Manual
Hide thumbs
Also See for ROYAL AUTOMATIC A 511:
- Assembly instructions manual (20 pages) ,
- Assembly instructions manual (20 pages)
Related Manuals for Multimo ROYAL AUTOMATIC A 511
Summary of Contents for Multimo ROYAL AUTOMATIC A 511

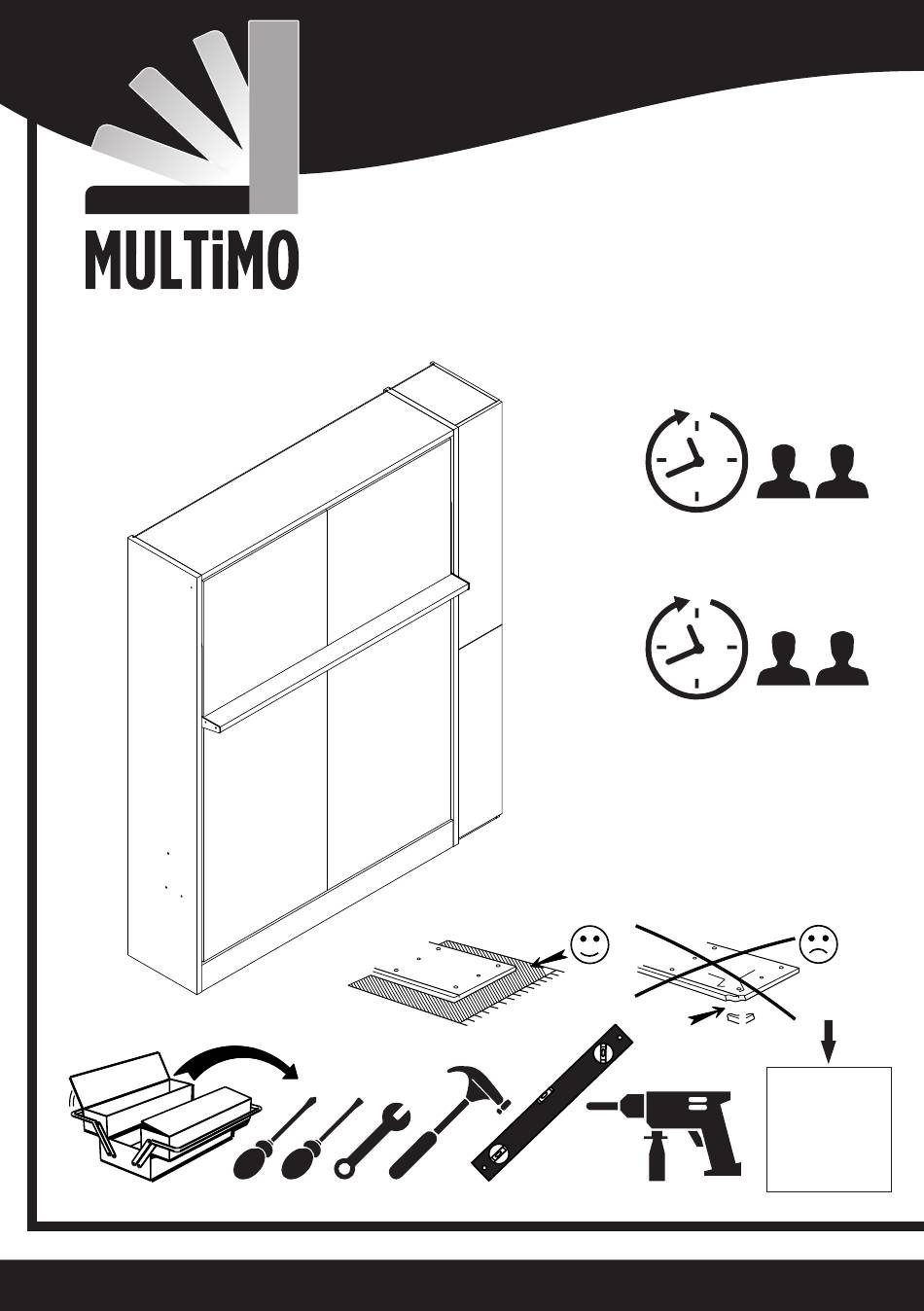

- Page 1 A 511- ROYAL AUTOMATIC min. Technical Service min. End User VIDEO link Assembly Instructions...
- Page 2 (inch) (mm) Track Title Piece Piece T hickness Length Width T hick H eight M ost 2280 1,18 89,76 17,32 1 18 1590 0,71 62,60 16,54 1 30 1590 1,18 62,60 16,50 1 18 1590 0,71 62,60 11,81 2267 0,31 89,25 21,02 1 18...
- Page 3 TAP - 02 CTM - 02 ( 8x35 ) mm DSE - 01 (40x90x32) mm TAP - 01 36 / piece 2 / piece 3 / piece 4 / piece TS - 01 BS - 01 VD - 03 ( 3,5x18 ) mm SC - 92 4 / piece 2 / piece...
- Page 4 OPTIONAL HEADBOARD OPTIONAL HEADBOARD Page 3...
- Page 5 STEP 1 MNX - 02 KVL 01 (FRONT) (BACK) VIDEO MNX-02 x 4 KVL-01 x 2 link Page 4...
- Page 6 STEP 2 210° MNG - 01 MNG - 01 x 8 STEP 3 MNG - 01 210° MNG - 01 x 8 VIDEO link Page 5...
- Page 7 STEP 4 H 01 STEP 5 MNG - 01 MNG - 01 x 8 VIDEO link Page 6...
- Page 8 STEP 6 AVT - 01X 6 OPTIONAL HEADBOARD STEP 7 VIDEO link Page 7...
- Page 9 STEP 8 MNX - 02 KVL 01 STEP 9 TS - 01 VIDEO link Page 8...
- Page 10 STEP 10 210° OT - 054 CT - 01 MNG - 01 x 6 STEP 11 MNG - 01 210° VIDEO MNG - 01 x 6 link Page 9...
- Page 11 STEP 12 VD - 02 x 4 STEP 13 PM - 01 x 12 VIDEO TAP - 01 link Page 10...
- Page 12 STEP 14 BS - 01 VD - 03 x 8 VD - 03 x2 VD - 03 x2 VIDEO link Page 11...
- Page 13 STEP 15 DD - 01 Ø 10 mm / 0,254 nch PL - 02 TFC - 01 VTB - 01 DSE - 01 VIDEO link Page 12...
- Page 14 STEP 16 CAUTION DO NOT UNLOCK BEFORE INSTALL MKZ - 05 (L) CT - 02 x 1 AL - 01 IM - 01 x 1 AL - 02 STEP 17 IM - 01 x 1 VIDEO AL - 02 link Page 13...
- Page 15 MKZ - 05 (R) STEP 18 01+02 SG - 01x2 (6 MM) VIDEO link Page 14...
- Page 16 STEP 19 MKZ - 05 (M) MKZ - 05 (R) STEP 20 IM - 01 x 2 MKZ - 05 (M) AL - 02 VIDEO link Page 15...
- Page 17 CAUTION STEP 21 DO NOT UNLOCK BEFORE INSTALL MKZ - 05 ( R ) SN - 01(M6) PL - 01 CTM - 06 x 2 AL - 01 STEP 22 SN - 01 PL - 01 CTM - 06 VIDEO AL - 01 link Page 16...
- Page 18 STEP 23 PLD- 04 MKZ - 05 (M) AL - 01 STEP 24 PL - 06 CTM - 01 VIDEO AL - 01 link Page 17...
- Page 19 STEP 25 45-50 LET THE STOPPER LOCK MOVE DOWN !!! STEP 26 CTM - 02 VIDEO AL - 01 link Page 18...
- Page 20 STEP 27 YSB - 01 VD - 02 STEP 28 OT-056D VIDEO SC - 92 SG - 01 (8 mm) link Page 19...
- Page 21 STEP 29 VTB - 02 X 4 KMT - 01 STEP 30 VDA - 01 TAP - 02 VIDEO VDA - 01 AL - 01 link Page 20...
- Page 22 STEP 31 MKK - 01 MKK - 01 OT - 073 SN - 03 (M10) MKK - 01 SN - 02 (M8) VIDEO CTM - 03 (M8x50) AL - 01 link Page 21...
- Page 23 ATTENTION / HOW TO / READ ME / OWNER'S GUIDE 1. When mount ng on a regular drywall, furn ture must be fastened to wood or metal studs. Sol d walls made of br ck, concrete or s m lar strong mater al are also accaptable.
- Page 24 www.mult mobeds.com...
