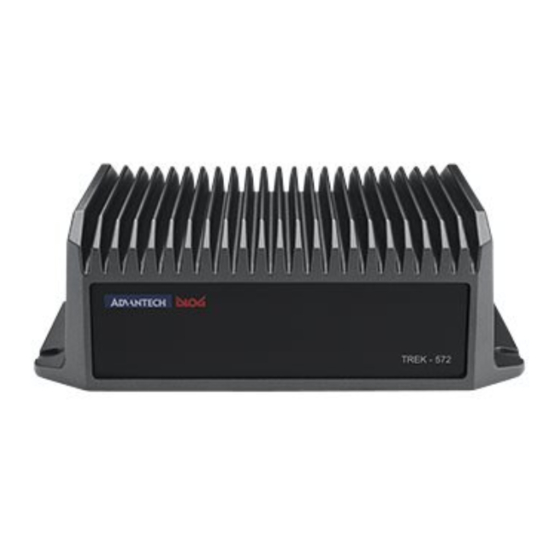

Advantech-DLoG TREK-572 User Manual
  1. Manuals
  2. Brands
  3. Advantech-DLoG Manuals
  4. Desktop
  5. TREK-572
  6. User manual

Advantech-DLoG TREK-572 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

User Manual




TREK-572





Computer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TREK-572 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech-DLoG TREK-572

Summary of Contents for Advantech-DLoG TREK-572

  • Page 1   User Manual         TREK-572           Computer...
  • Page 2 Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.           Part No. Edition 1 Printed in Taiwan Q1 2015 TREK-572/303 User Manual  ...
  • Page 3 MSS operations.                                       TREK-572 User Manual  ...
  • Page 4 Description of your peripheral attachments – Description of your software (operating system, version, application software, etc.) – A complete description of the problem – The exact wording of any error messages             TREK-572/303 User Manual  ...
  • Page 5 Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. TREK-572 Series In-Vehicle Computing Box „ USB/Audio cable clip „...
  • Page 6   Description   TREK-572-VNOM-00E TREK-572 w/LTE/GPS/WLAN/BT/Linux TREK-572-VNOM-01E TREK-572 w/LTE/GPS/WLAN/BT/Linux and 7” Display   Safety Instructions   Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth.
  • Page 8 CAUTION: Any unverified component could cause unexpected damage. To ensure the correct installation, please always use the components (ex. screws) provided with the accessory box. TREK-572 /303 User Manual...
  • Page 9 Maintenance: to properly maintain and clean the surfaces, use only approved products or clean with a dry applicator.     European Contact Information:   Advantech Europe GmbH Kolberger Straße 7 D-40599 Düsseldorf, Germany Tel: 49-211-97477350 Fax: 49-211-97477300 TREK-572/303 User Manual    ...

  • Page 10: Table Of Contents

        Chapter System Setup ........7   A Quick Tour of the TREK-572 Computing Box ........8   Figure 2.1 Front view of TREK-572 ..........8   Figure 2.2 Rear view of TREK-572 ..........8   Figure 2.3 Side view of TREK-572 ..........8  ...
  • Page 12 Vehicle Power Management ..............33 6.3.1 Power Management Mechanism ..........33     6.3.2 Power Management Utility Program ........... 35 6.3.3 Power Management Parameter Settings ........35 Figure 6.10Power management test utility ......... 35 6.3.4 TREK-572 Power Consumption..........35 TREK-572 /303 User Manual...
  • Page 13 Dead Reckoning..................38 G-sensor (3-axis Accelerometer) ............38     Appendix A TREK-303..........39   TREK-303 Specifications ................ 40 Table A.1: TREK-303 Specification ........... 40 Table A.2: Smart Display Connector.......... 41 Figure A.1 Hotkey utility ............. 43 TREK-572 /303 User Manual  ...

  • Page 14: Chapter 1 General Information

                      Chapter   General Information   This chapter gives background information on the TREK-572 In- Vehicle Computing Box. Sections include: „ Introduction „ General Specifications „ Dimensions TREK-572 /303 User Manual  ...

  • Page 16: Introduction

    TREK-572 provide dual CAN Bus ports which can support several kind of vehicle protocols for vehicle diagnostics and driver behavior management. Built-in wireless communications enable TREK-572 to send important driver/vehicle/location/ cargo information back to the control center.
  • Page 17                           TREK-572/303 User Manual...

  • Page 18: General Specifications

      1.2 General Specifications   Key features Intel Atom Baytrail-I SOC inside „ One-Cable-Connection to pair with TREK in-vehicle smart display (TREK- 303/306) Vehicle diagnostic interface with configurable protocols support: CAN (j1939, OBD-II / ISO-15765) and J1708 (J1578) Built-in GNSS,WLAN,BT and WWAN Modules „...
  • Page 20 „      Operating temperature: -30 ~ 70° C „      Relative humidity: 10 ~ 95% @ 50° C (non-condensing) „      Shock: 30 G peak acceleration (11 msec duration) Certifications: FCC, SAE J1455 class C, ISO 7637-2, „ SAE J1113 „      Vibration: MIL-STD-810G TREK-572/303 User Manual...

  • Page 21: Dimensions

                                                                    Figure 1.1 TREK-572 dimensions TREK-572/303 User Manual  ...

  • Page 22: Chapter 2 System Setup

                Chapter   System Setup   This chapter details system setup on TREK-572 Sections include: „ A Quick Tour of the Computer „Power define „ Running the BIOS Setup Pro- gram TREK-572/303 User Manual  ...

  • Page 24: A Quick Tour Of The Trek-572 Computing Box

    2.1 A Quick Tour of the TREK-572 Computing Box Before starting to set up the In-Vehicle Computing Box, take a moment to become familiar with the locations and functions of the controls, drives, connectors and ports, which are illustrated in the figures below. When the Computer box is placed inside truck glove cabinet or under the passenger’s seat next to the driver, its front appears...

  • Page 25: Connecting The Power Cord

    “ignition” mark.   Note! Ignition on/off setting: The TREK-572 supports an ignition on/off function so that you can power on/off the TREK-572 via the ignition signal/volt- age and connect the TREK-572 vehicle ignition switch.    ...

  • Page 26: Running The Bios Setup Program

    CMOS RAM and compares them to the equipment check conducted during the power on self-test (POST). If an error occurs, an error message is displayed on screen, and the user is prompted to run the setup program. TREK-572 /303 User Manual...

  • Page 27: Chapter 3 Hardware & Peripheral Installation

      Chapter   Hardware & Peripheral Installation   This chapter details the installa- tion of hardware for TREK-572 Sections include: „ Overview of Hardware Installa- tion and Upgrading „ Installing the Storage Device and Memory „ Installing Optional Accessories „ Fuse  ...

  • Page 28: Overview Of Hardware Installation & Upgrading

      3.3.1 Installing TREK-572 Peripheral Modules There are 4 screws on the bottom of TREK-572, if you want to install the peripherals in TREK-572, please use M2 type screw to open the system.  ...

  • Page 29: Installing The Minipci Type Wwan, Sim Card And Coin Battery

    If customers don’t need LTE or WIFI module please go through customization process.     3.4 Paired with TREK-303 Specifications   See Appendix A TREK-572 provides both VGA function and LCD to connect with TREK-303, it can output different content, clone to VGA output  ...

  • Page 30: Chapter 4 Jumper Settings And Connectors

    Be sure to read all the safety pre- cautions before beginning the installation procedure. Sections include: „ Setting Jumpers and Switches „ Jumpers Setting                   TREK-572 /303 User Manual  ...

  • Page 31: Setting Jumpers And Switches

    1, 2, and 3. In this case, connect either pins 1 and 2, or pins 2 and 3. WWAN Voltage Setting Description For MC7354/MC8090/MC8092 Setting Function MC8090/MC8092(3.5V) (1-2) (3.3V) (2-3) MC7354(3.8V)                10/100/1000 LAN Signal Signal LAN_MDI0+ LAN_MDI0- LAN_MDI1+ LAN_MDI1- LAN_MDI2+ LAN_MDI2- 5  TREK-572/303 User Manual...
  • Page 32 7  USB2.0 Signal Signal +V5 (0.5A) USB DATA - USB DATA+ CN11 Pink JACK_5H CN11 MIC in Signal Signal MIC Right MIC Left CN12 Lime JACK_5H CN12 Line out Signal Signal Line out Right Line out Left TREK-572/303 User Manual...
  • Page 33           Chapter   Pin Assignments   This chapter explains pin assign- ments on the TREK-572 Sections include: „ Front/side Connector „ Power Connector „ Smart Display Connector „ RS232 Connectors „ DI/DO Connectors      ...
  • Page 34 5.1 Front Side Connectors                                  5.2 Rear Side Connectors                                                       TREK-572/303 User Manual  ...
  • Page 35   5.3 Smart Display Connector       Table 5.2: Smart Display Connector   Signal Signal Backlight Enable output # Panel Power Enable output # LVDS Ground Reset Button Input # LVDS Clock + LVDS Clock - LVDS Ground LVDS Ground LVDS Data2 + LVDS Data2 - RS232 TXD1 #...
  • Page 36         5.4 VIO Connector A(DSUB15) Define B(Housing) CAN_L CAN_H J1708_DN J1708_DP DGND ODB_CAN_L ODB_CAN_H DGND DR_SPEED#_R DR_SPEED_R DR_DIRECTION#_R DR_DIRECTION_R     TREK-572/303 User Manual  ...
  • Page 38 TREK-572/303 User Manual...
  • Page 39                       Chapter   Software Demo Utility Setup   This appendix explains the soft- ware demo utility for TREK-572 Sections include: „ Introduction „ How to Set up Demo Utility  ...
  • Page 40 6.1 Introduction To make the hardware easier to access for programmers, Advantech has developed and demo program in order to let customer test the functions on TREK-572. This document describes detailed information for each Advantech demo program so that application developers can become more familiar with using them.
  • Page 41 Note: Each channel only can select one bus type at same time. CAN Page CAN page as below figure Bus Speed Read Data control (Press "Start" to monitor bus to read) Read Data method Read Data list Write Data control CAN bus message mask control TREK-572/303 User Manual  ...
  • Page 42 J1708 Page J1708 page as below figure Read Data control (Press "Start" to monitor bus to read) Read Data list Write Data control J1708 bus message filter control Message filter list J1939 Page J1939 page as below figure Read Data control (Press "Start" to monitor bus to read) Read Data list Write Data control J1939 bus message filter control...
  • Page 43 J1587 bus message filter control Message filter list ODB2 Page ODB2 page as below figure Read Data control (Press "Start" to monitor bus to read) Read Data list Write Data control ODB2 bus message filter control TREK-572/303 User Manual  ...
  • Page 44 6.1.2 Testing VCIL 1. Opening "TREK_V3_Sample_Code_VCIL.exe" 2. Select VCIL port and speed for your platform. For example, select the port number 8 on TREK-674 3. Selecting "VCIL Control" page as below figure 4. You should see the firmware version on this page when success opening VCIL. TREK 572/303 User Manual...
  • Page 45 Note: Each channel only can select one bus type at same time. Reset Module 1. Selecting "VCIL Control" page 2. Press "Reset Module" button as below figure CAUTION: When reset module, all configure for each bus reset to default value. 6.1.3 Testing CAN TREK-572/303 User Manual  ...
  • Page 46 1. Selecting "VCIL Control" page 2. Press combo box on the channel and select "CAN" as below figure Reading Data 1. Selecting "CAN" page as below figure Set CAN bus speed. For example 250K 2. Checked "Show Data" 3. Press "Start" button to receive CAN bus data 4.
  • Page 47 3. Press "Write" button to send CAN bus data as above figure 4. You should see the data on the receiver Testing Message Mask 1. Selecting "VCIL Control" page 2. Press combo box on the channel and select "CAN + Mask" as below figure Set Mask TREK-572/303 User Manual  ...
  • Page 48 1. Selecting "CAN" page as below figure Set CAN bus speed. For example 250K 2. Configure the Message mask 3. Press "Set Mask" button to apply the mask to bus 4. You should see the mask was applied on the bus. 5.
  • Page 49 2. Checked "Show Data" 3. Pull TrackBar "ON" to receive J1939 data 4. You should see the data came from the J1939 and show on the list Writing Data 1. Selecting "J1939" page as below figure TREK-572/303 User Manual  ...
  • Page 50 2. Filling the J1939 data prepare to send 3. Press "Write" button to send J1939 data as above figure 4. You should see the data on the receiver Testing Message Filter 1. Selecting "VCIL Control" page 2. Press combo box on the channel and select "J1939 + Mask" as below figure Set Message Filter 1.
  • Page 51 For example, as above figure setting. The system can receive the PGN equal to 0xFEF6, otherwise no. 6.1.5 Testing ODB2 1. Selecting "VCIL Control" page 2. Press combo box on the channel and select "ODB2" as below figure Reading Data 1. Selecting "ODB2" page as below figure TREK-572/303 User Manual  ...
  • Page 52 2. Checked "Show Data" 3. Pull TrackBar "ON" to receive ODB2 data 4. You should see the data came from the ODB2 and show on the list Writing Data 1. Selecting "ODB2" page as below figure 2. Filling the ODB2 data prepare to send 3.
  • Page 53 4. You should see the filter was applied on the bus 5. The system ignores all PID is not on the list For example, as above figure setting. The system can receive the PID equal to 0x00, otherwise no. TREK-572/303 User Manual  ...
  • Page 54 6.1.6 Testing J1708 1. Selecting "VCIL Control" page 2. Press combo box on the channel and select "J1708" as below figure Reading Data 1. Selecting "J1708" page as below figure 2. Checked "Show Data" 3. Press "Start" button to receive J1708 data 4.
  • Page 55 2. Enter specified MID to filter 3. Press "Add MID" button to add the rule to filter 4. You should see the filter was applied on the bus 5. The system ignores all MID is not on the list TREK-572/303 User Manual  ...
  • Page 56 6.1.7 Testing J1587 1. Selecting "VCIL Control" page 2. Press combo box on the channel and select "J1587" as below figure Reading Data 1. Selecting "J1587" page as below figure 2. Checked "Show Data" 3. Press "Start" button to receive J1587 data 4.
  • Page 57 2. Enter specified MID to filter 3. Press "Add MID" button to add the rule to filter 4. You should see the filter was applied on the bus 5. The system ignores all MID is not on the list TREK-572/303 User Manual  ...
  • Page 58   6.3 Vehicle Power Management   6.3.1 Power Management Mechanism The feature of Vehicle Power Management (VPM) is provided for users to fulfill the special requirements on in-vehicle applications.   Ignition on/off „ – Turn on the system by ignition For the cases of in-vehicle applications, an ignition signal is often used to turn on or shutdown the system.
  • Page 60 LOW_DELAY stage and start to count down. During the stage of LOW_DELAY countdown, if battery voltage is back above LOW_THRESHOLD, the VPM con- troller will stop counting down and exit. If LOW_DELAY counts to zero, the VPM controller will send an event (power button press) to notify the system, go into LOW_ HARD_DELAY stage and start to count down.
  • Page 62   6.3.2 Power Management demo program TREK V3 VPM Sample Code is demonstration of vehicle power management (VPM). System Menu • TREK V3 VPM Sample Code as below figure Common page Low Battery Protection & Ignition Control page Backup Battery Information page Alarm Wakeup Control page Common page •...
  • Page 63   Library Version Firmware Version Car Battery Mode (Decide LBP what voltage mode to use) Current Battery Voltage Ignition Status Mode Control Wakeup Source Control Low Battery Protection & Ignition Control page • VPM Low Battery Protection & Ignition Control page as below figure Low Battery Protection Control Ignition Control Backup Battery Information page...
  • Page 64   • VPM Common page as below figure Alarm wakeup Status Control RTC Timer Control Alarm Wakeup Time Control Testing VPM Opening "TREK_V3_Sample_Code_VPM.exe" You should see the firmware version and voltage below figure 6.4 WatchDog Sample Code TREK V3 Watch Dog Sample Code is demonstration of controlling Watch Dog. TREK-570/303 User Manual  ...
  • Page 65   System Menu • TREK Watch Sample Code below figure Library Version Range of Watch Dog timer Set/Get Watch Dog time Enable Watch Dog timer Reload the watchdog timer to prevent the system from rebooting Testing Watch Dog Opening "TREK_V3_Sample_Code_Watch_Dog.exe" Press "Get Range"...
  • Page 66   System Menu • TREK Peripheral Control Sample Code below figure Library Version Select Peripheral Select Set or Get function Testing Peripheral Control Getting Peripheral Power Status Opening "TREK_V3_Sample_Code_PeripheralCtrl.exe" Selecting module, For example "WIFI". Selecting "Get" radio button Press "Apply" button should peripheral power...
  • Page 67   If you want close the specified peripheral power, following the instruction: Opening "TREK_V3_Sample_Code_PeripheralCtrl.exe" Selecting module, For example "WIFI" Selecting "Set" radio button Press "Enable/Disable" combo box and selecting "Disable" Press "Apply" button You should see the peripheral power is closed TREK-570/303 User Manual  ...
  • Page 68                                                         Appendix   TREK-303   This appendix explains the TREK- 303 detailed information. TREK-570/303 User Manual  ...
  • Page 70 The Brightness control is adjusted by the auto light sensor in the   front panel as default; it is also defined by button on the front panel     by manual.   The color LCD display   TREK-572/303 User Manual...
  • Page 71 (+/- 5%, max 1A) +12 V input (+/- 5%, max 1A) Power Ground Power Ground Power Ground Power Ground RS232 RXD2 # RS232 TXD2 # Power Button Input # (connect with RS232 RTS2 system box) Audio Ground Mono. Line-in TREK-572/303 User Manual  ...
  • Page 72           Black black Black Black Black Black Black   Blue white Ground yellow Green Blue Purple Grey white Black Orange Brown Yellow green blue purple grey TREK-303 Hotkey Utility Execute IMC demo utility TREK-572/303 User Manual...
  • Page 73 Key Status: When you press Hot key, the status will change from 0 to 1. Key function Definition: Set the parameters to connect to the application pro- gram function of the hot key.                       TREK-572/303 User Manual    ...
  • Page 74                             www.advantech.com Please verify specifications before quoting. This guide is intended for reference purposes only. All product specifications are subject to change without notice. No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher.
