Global Fire Equipment GFE-PA-VOX-C Quick Start Manual

Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL | Tel: +351 289 896 560
Email: info@globalfire-equipment.com | Technical Support: techs@globalfire-equipment.com | www.globalfire-equipment.com
SUPPLY VOLTAGE
SOUNDER CIRCUIT - CURRENT
EXTERNAL SUPPLY - CURRENT
POWER OUTPUT MAX.
MAX. CABLE SIZE
MAX. HUMIDITY
OPERATING TEMPERATURE
ENCLOSURE - MATERIAL / PROTECTION
DIMENSIONS / WEIGHT
ORDER CODE
GFE-PA-VOX-C
GFE-PA-VOX-C

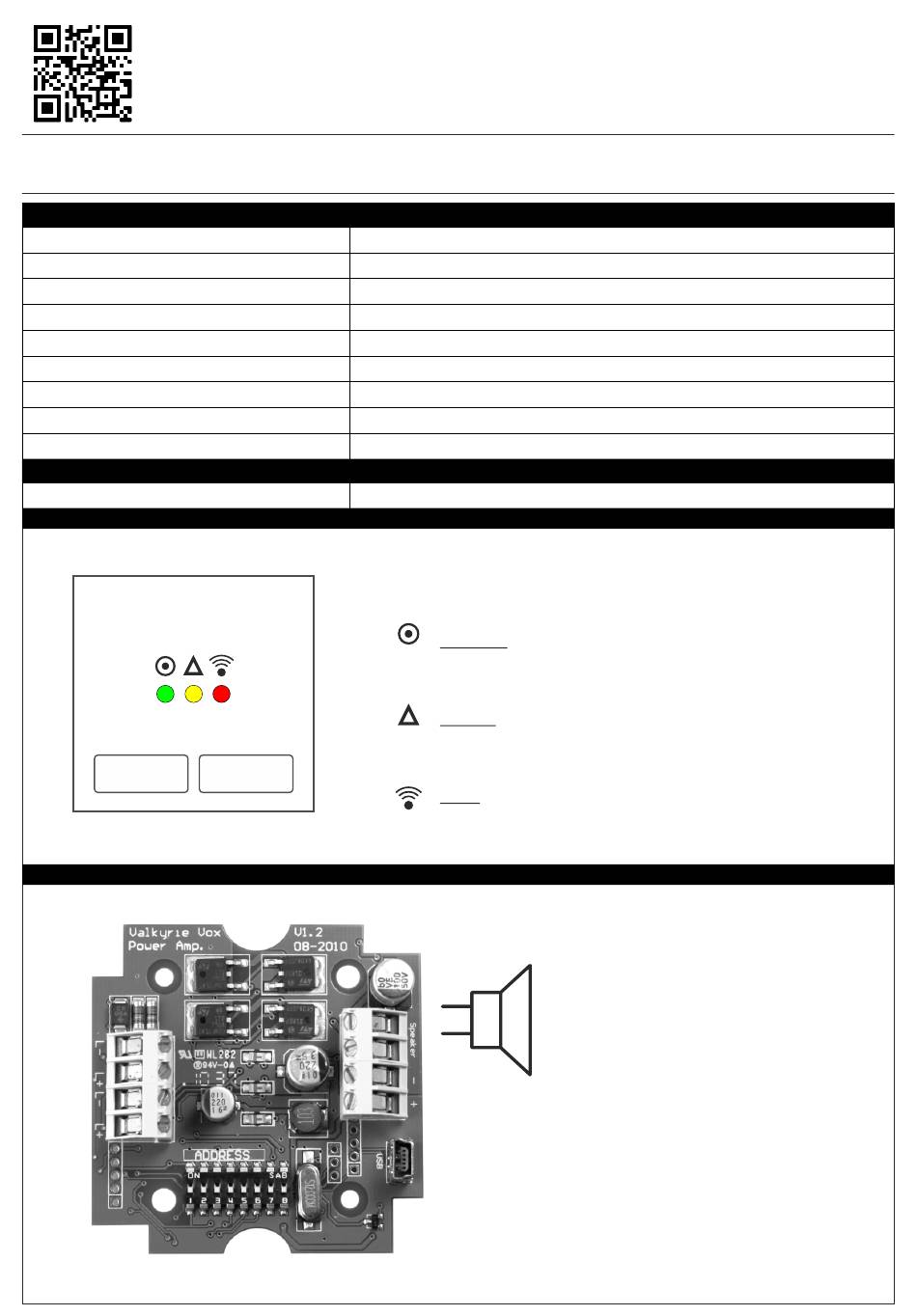

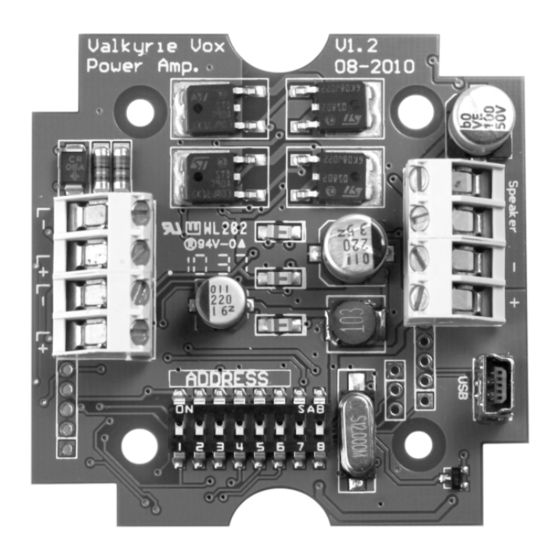

CONVENTIONAL VOICE CONTROLLER/AMPLIFIER
GLOBAL FIRE EQUIPMENT S.A.
TECHNICAL SPECIFICATIONS
Loop: 17-30 V DC - External Supply: 20-30 V DC
2.0 mA (Sounder Active)
5.0 mA (Quiescent) - 1.0 A (Sounder Active)
24 Watts rms
2.5 mm
85% RH Non-Condensing
-10ºC to 50ºC
White or Red ABS / IP44
100 (D) x 48 (H) mm / 125 g - 160 g including packaging
DESCRIPTION
CONVENTIONAL VOICE CONTROLLER/AMPLIFIER
STATUS & REPORT DETAILS
In order to indicate the status of the module's working
condition, 3 LEDs are provided:
SPEAKER CONNECTION
2
STATUS:
This LED will flash Green, while the
conventional sounder circuit is active.
FAULT
: The Yellow LED will be ON when there is a
fault in the module.
FIRE:
This Red LED will be illuminated intermittently
whenever the speaker is active.
Maximum Load Allowed
1 x 8 Ohm
24 Watt rms
or
2 x 16 Ohm
12 Watt rms
