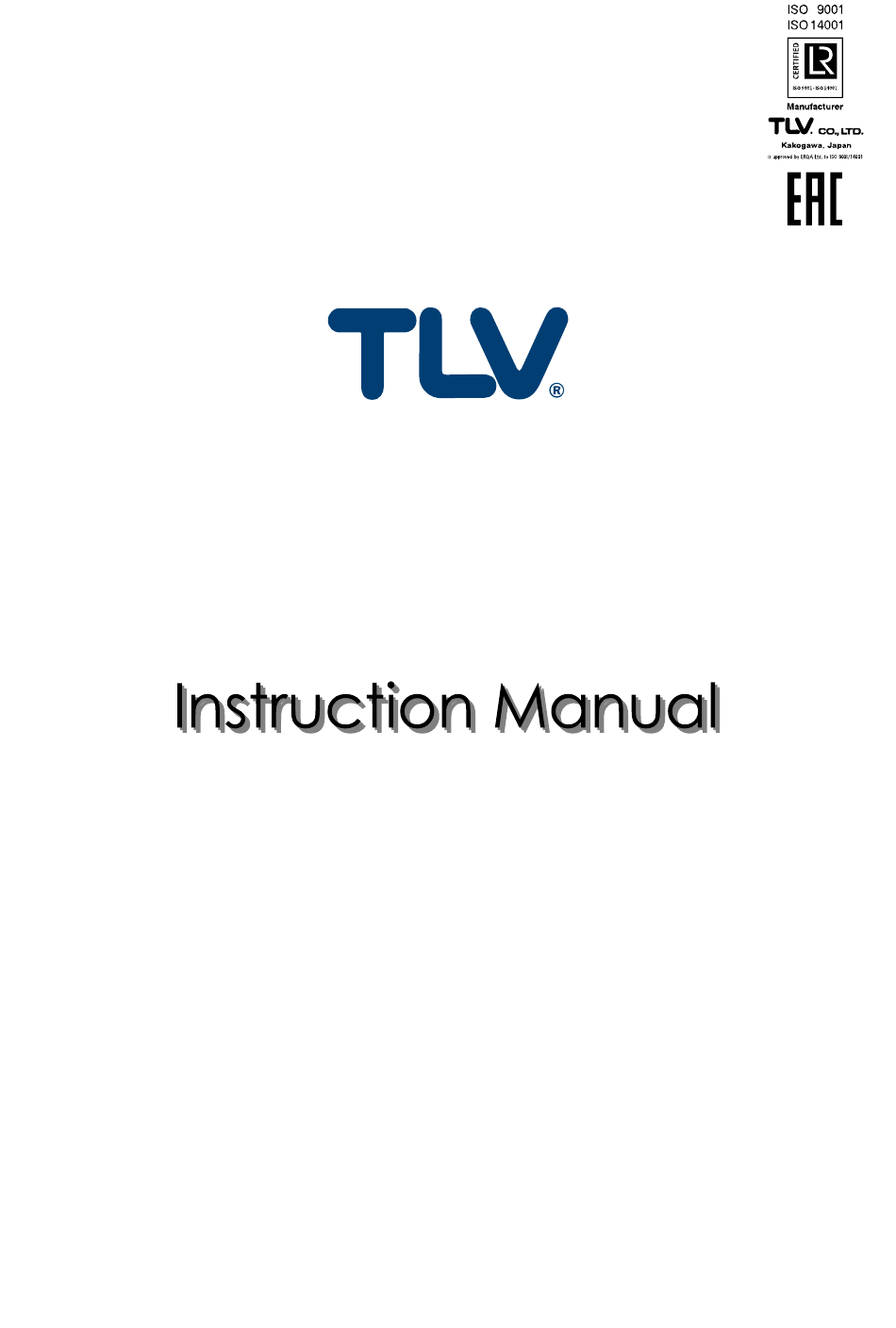

- Page 1 172-65133M-04 (LA Series) 1 October 2021 Thermostatic Air Vent for Steam LA13 • LA13L LA21 Copyright © 2021 by TLV CO., LTD. All rights reserved...
-
Page 2: Table Of Contents
TLV EXPRESS LIMITED WARRANTY ........12 Service ..................14 Introduction Thank you for purchasing the TLV thermostatic air vent for steam. This product has been thoroughly inspected before being shipped from the factory. When the air vent is delivered, before doing anything else, check the specifications and external appearance to make sure nothing is out of the ordinary. -
Page 3: Safety Considerations
The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. -
Page 4: Operation
Operation Principles of air discharge: 1. Start-up Air Discharge Initially, the X-element is open and air in piping is quickly vented, significantly shortening equipment start-up time. 2. Closed Position When steam flows in, the increased temperature causes the X-element to close immediately. If the temperature around the X-element is near steam saturation temperature, the vent will remain closed. -
Page 5: Specifications
**Valve No. is displayed for products with options. This item is omitted from the nameplate when there are no options. Maximum Operating Temperature Operating Pressure (kg/cm 13 15 20 21 235 C Saturated Steam Curve Operating Temperature Range : LA13/LA13L : LA21 1.3 1.5 2.0 2.1 Operating Pressure (MPaG) 172-65133M-04 (LA Series) 1 Oct 2021... -
Page 6: Configuration
Configuration LA13 LA21 LA13L NAME NAME NAME Body Body Body Cover Cover Cover X-element X-element Valve Seat Valve Seat Valve Seat X-element Screen Screen X-element Guide Nameplate Nameplate Spring Clip Screen Spring Clip Spring Clip Cover Gasket Cover Gasket Nameplate... -
Page 7: Installation
6. Open the inlet valve and check to make sure that the air vent functions properly. If there is a problem, determine the cause using the “Troubleshooting” section in this manual. Sample Installation LA13/LA21 LA13/LA21 Equipment Equipment Drainage Pit... -
Page 8: Maintenance
Periodically (at least biannually) the operation should also be checked by using a stethoscope, thermometer or TLV Pocket TrapMan. If the air vent should fail, it may cause damage to piping and equipment, resulting in faulty or low quality products or losses due to steam leakage. -
Page 9: Disassembly/Reassembly
Body/Cover (LA21) 10, 15 (1 Nm 10 kgcm) NOTE:-LA13: DO NOT coat threaded portions with anti-seize -LA21: Coat all threaded portions with anti-seize -If drawings or other special documentation were supplied for the product, any torque given there takes precedence over values shown here. - Page 10 Removing/Reattaching Cover (LA13L) Part During Disassembly During Reassembly Cover Remove with a socket wrench Consult the table of tightening torques and tighten to the proper torque Cover Remove the gasket and clean Replace the gasket only if warped or Gasket sealing surfaces damaged Removing/Reassembling Parts Inside Body...
- Page 11 Exploded View LA13 LA21 LA13L Body Body Cover Nameplate Nameplate Screen Screen Cover Gasket Spring Clip Spring Clip Spring Clip X-element X-element X-element Cover Cover Valve Seat Gasket X-element Guide Cover Screen Body 172-65133M-04 (LA Series) 1 Oct 2021...
-
Page 12: Troubleshooting
Troubleshooting When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product CAUTION has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage. -
Page 13: Tlv Express Limited Warranty
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation (“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or one of its group companies excluding TLV Corporation (a corporation of the United States of America), (hereinafter the “Products”) are designed and manufactured by TLV, conform... - Page 14 WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR...
-
Page 15: Service
Service For Service or Technical Assistance: Contact your TLV representative or your regional TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Fax: [49]-(0)7263-9150-50 Tel: [44]-(0)1242-227223 Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52 8TW, U.K.
