TLV VS3-E Instruction Manual

Automatic air vent
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 July 2015
ISO 9001/ ISO 14001
Manufacturer
Kakogawa, Japan
is approved by LRQA LTD. to ISO 9001/14001
Automatic Air Vent
(Clean Air Vent)
VS3-E / VS3-P / VS3-EP
Manufacturer
881 Nagasuna, Noguchi, Kakogawa, Hyogo, 675-8511 Japan
Tel: [81]-(0)79-422-1122 Fax: [81]-(0)79-422-0112
Copyright © 2015 by TLV Co., Ltd. All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS3-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TLV VS3-E

Summary of Contents for TLV VS3-E

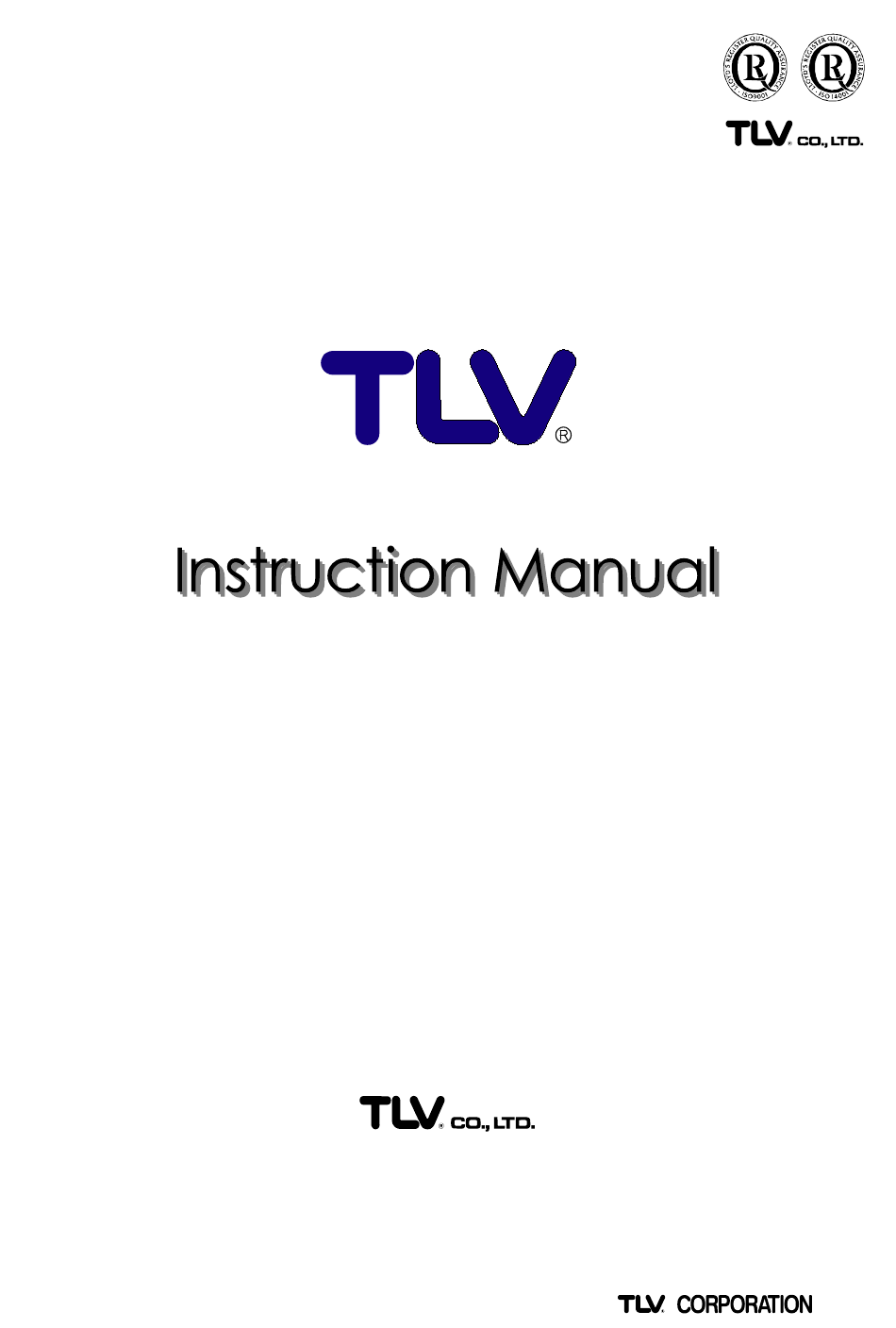

  • Page 1 LRQA LTD. to ISO 9001/14001 Automatic Air Vent (Clean Air Vent) VS3-E / VS3-P / VS3-EP Manufacturer 881 Nagasuna, Noguchi, Kakogawa, Hyogo, 675-8511 Japan Tel: [81]-(0)79-422-1122 Fax: [81]-(0)79-422-0112 Copyright © 2015 by TLV Co., Ltd. All rights reserved...

  • Page 2: Table Of Contents

    This instruction manual is intended for use with the model(s) listed on the front cover. It is necessary not only for installation but for subsequent maintenance, disassembly/reassembly and troubleshooting. Please keep it in a safe place for future reference. 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 3: Safety Considerations

    • The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions.
  • Page 4 Use only under conditions in which no water hammer will occur. The impact of water hammer may damage the product, leading to fluid discharge, which may cause burns or other injury. 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 5: Features

    Water constantly respond to the flow of air. 4. When draining the piping, the air vent automatically opens to introduce air and remove water more easily (preventing a vacuum from forming in the piping). 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 6: Specifications

    ** CNo. (Charge / Mill No.) is displayed for products with options. This item is omitted when there are no options. *** Connection inner diameter is displayed for products with options. This item is omitted when there are no options. Configuration Name Body Cover Float Body Clamp Cover Gasket Valve Seat Wing Nut 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 7: Installation

    If there is a problem, determine the cause using the “Troubleshooting” section in this manual. Tolerance Angle for Installation - 5° 5° 5° 5° 5° Make sure the air vent is installed with the raised lettering on the body horizontal. 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 8: Maintenance

    Procedure Cover Gasket: Check for warping and damage Valve Seat: Check for scratches or wear Float: Check for scratches or dents 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 9: Disassembly / Reassembly

    (Fig. B) Valve Seat Table of Tightening Torques Torque Part Name (lbf·ft) N⋅m Wing Nut (1 N⋅m ≈ 10 kg⋅cm) 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...
  • Page 10 Exploded View Body Body Clamp Float Cover Gasket Body Clamp Cover 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 11: Troubleshooting

    The specific gravity of the liquid is outside Select a product with suitable water is blowing the specifications for this product specifications for the operating (this product is for water systems) conditions 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...

  • Page 12: Express Limited Warranty

    EXPRESS LIMITED WARRANTY Subject to the limitations set forth below, TLV Corporation, a North Carolina corporation (“TLV”) warrants that products which are sold by it or TLV International, Inc., a Japanese corporation (“TII”), which products (the “Products”) are designed and manufactured by TLV Co., Ltd., a Japanese corporation (“TLVJ”), conform to the specifications published...
  • Page 13 TRANSPORTATION COSTS ASSOCIATED WITH THE RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY THE RESPONSIBILITY OF BUYER OR THE FIRST END USER. TLV RESERVES THE RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION.

  • Page 14: Option (2-Piece Clamp For Bolts And Nuts)

    Option (2-piece Clamp for Bolts and Nuts) Configuration Name Body Cover Float Body Clamp Cover Gasket Valve Seat Clamp Nut Clamp Bolt 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...
  • Page 15 Body the seating surface of the valve seat (Fig. B) Valve Seat Table of Tightening Torques Torque Distance Across Flats Part Name N·m (lbf·ft) (in) Clamp Bolts / Nuts (1 N⋅m ≈ 10 kg⋅cm) 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...
  • Page 16 Exploded View Body Float Cover Gasket Clamp Bolt Body Clamp Cover Clamp Nut Clamp Nut 172-65528A-01 (VS3-E/VS3-P/VS3-EP) 8 Jul 2015...
