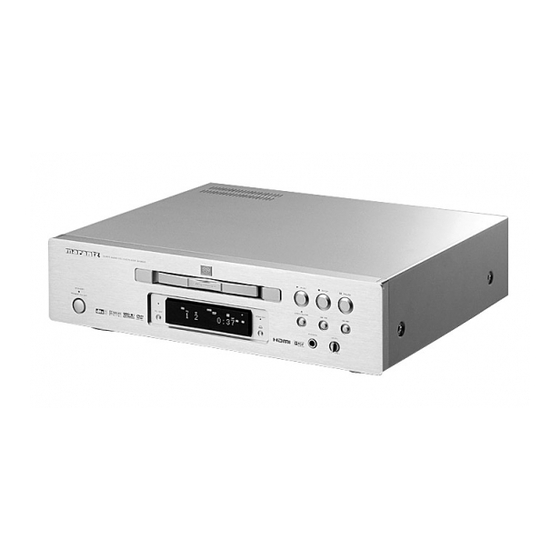

Marantz DV9500 General Information Manual
  1. Manuals
  2. Brands
  3. Marantz Manuals
  4. DVD Player
  5. DV9500
  6. General information manual

Marantz DV9500 General Information Manual

Marantz dv9500: reference guide
Hide thumbs Also See for DV9500:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
Partner: Marantz
Model: DV9500
Device Type: DVD Player
GENERAL INFORMATION
SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:
CABLE DIAGRAM:
DV9500_MJI_1-00
Transport Decks
1.0
Controls the Marantz DV9500 DVD player and provides true feedback
This module provides all controls for the Marantz DV9500 DVD player. It also
provides true feedback.
There are three layers of feedback. It is possible turn on and off any combination of
these layers. This module provides commands to do this.
NOTE: THE DV9500 SHIPS FROM THE FACTORY WITH ECONOMY MODE ENABLED. IF
YOU DO NOT DISABLE ECONOMY MODE, YOU WILL NOT BE ABLE TO TURN THE
DV9500 ON USING RS232.
CNX-COM, C2-COM, ST-COM
RS232
Baud: 9600
Parity: None
Data Bits: 8
Stop Bits: 1
RS-232C Ver: 1.01
BE Ver: B0.33B
Panel ucom Ver: P0.80
DSP Ver: A0401
YOU MUST DISABLE THE ECONOMY MODE. THERE IS A COMMAND ON THIS
MODULE TO DO THAT. YOU MUST FIRST TURN THE DV9500 ON MANUALLY. THEN
YOU NEED TO PULSE THE ECONOMY MODE DISABLE INPUT.
CNSP-123

Advertisement

loading

Related Manuals for Marantz DV9500

Summary of Contents for Marantz DV9500

  • Page 1 Transport Decks Controls the Marantz DV9500 DVD player and provides true feedback This module provides all controls for the Marantz DV9500 DVD player. It also provides true feedback. There are three layers of feedback. It is possible turn on and off any combination of these layers.
  • Page 2 Partner: Marantz Model: DV9500 Device Type: DVD Player...
  • Page 3 Subtitle Audio Front_Display_* Num* Pulse to turn the DV9500 on and off. The DV9500 will NOT turn on if the Economy Mode is ENABLED. Pulse to open and close the tray. Pulse to control the transport functions. Pulse to cycle through the repeat functions.
  • Page 4 Pulse to set the DVD player to IR code 1 or IR code 2. Pulse to enable or disable the ECONOMY mode. ECONOMY MODE MUST BE ENABLED TO ALLOW THE CRESTRON PROCESSOR TO TURN THE DV9500 Pulse to set the auto status mode.
  • Page 5 Analog value indicating the current title number. LAYER 2 FEEDBACK. Analog value indicating the current group. High to indicate the current state of the brightness of the DV9500’s front panel. LAYER 2 FEEDBACK. High to indicate the current sacd mode. LAYER 2 FEEDBACK.

  • Page 6: Sample Program

    High to indicate the current IR code state. LAYER 2 FEEDBACK. High to indicate the current ECONOMY mode state. ECONOMY MODE MUST BE DISABLED TO ALLOW THE CRESTRON PROCESSOR TO TURN THE DV9500 ON. LAYER 2 FEEDBACK. High to indicate the level of automatic feedback.
