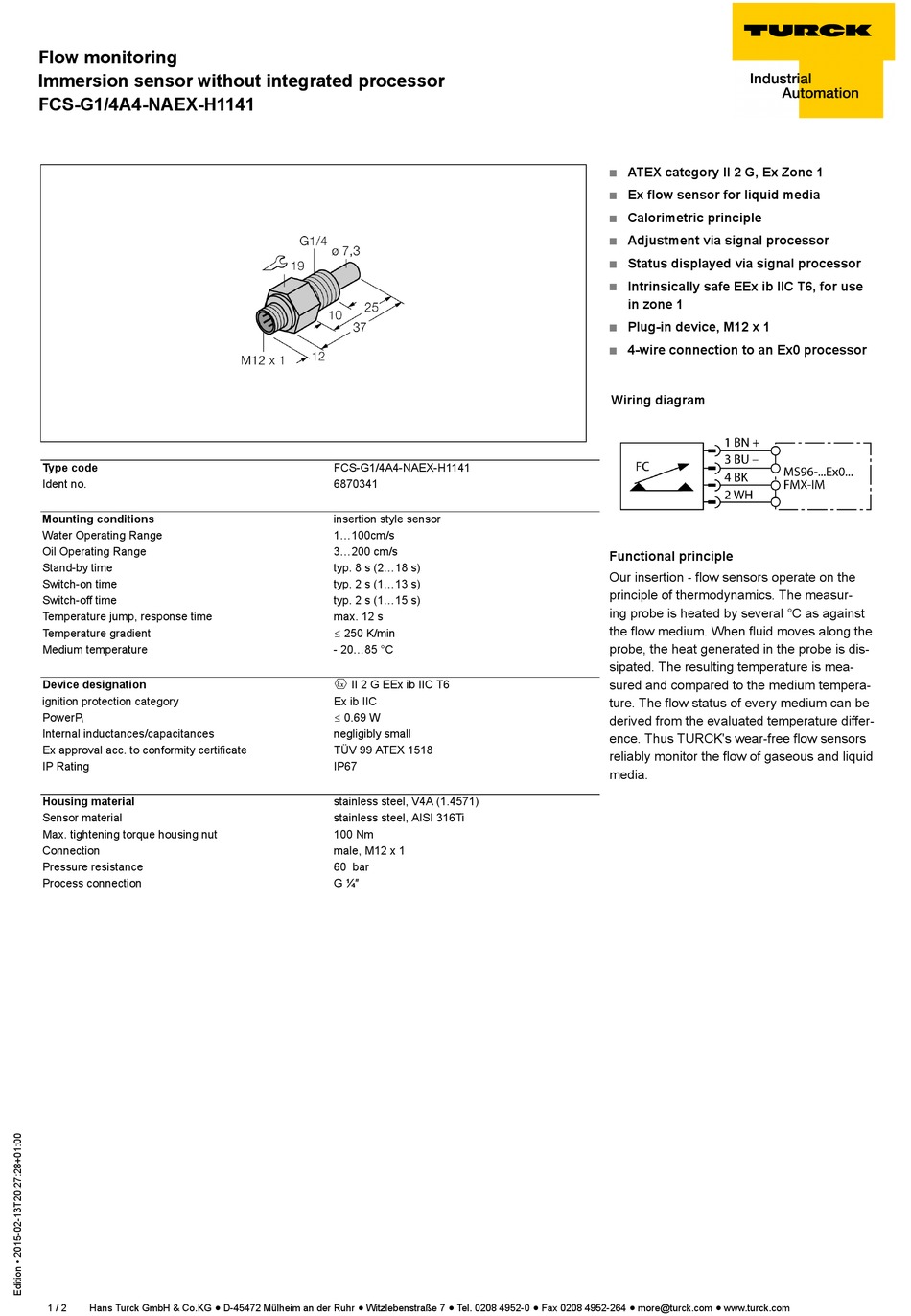

turck 6870341 Quick Start Manual

Flow monitoring
Immersion sensor without integrated processor
FCS-G1/4A4-NAEX-H1141
Type code
Ident no.
Mounting conditions
Water Operating Range
Oil Operating Range
Stand-by time
Switch-on time
Switch-off time
Temperature jump, response time
Temperature gradient
Medium temperature
Device designation
ignition protection category
PowerP
i
Internal inductances/capacitances
Ex approval acc. to conformity certificate
IP Rating
Housing material
Sensor material
Max. tightening torque housing nut
Connection
Pressure resistance
Process connection
1 / 2 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
FCS-G1/4A4-NAEX-H1141
6870341
insertion style sensor
1...100cm/s
3...200 cm/s
typ. 8 s (2...18 s)
typ. 2 s (1...13 s)
typ. 2 s (1...15 s)
max. 12 s
ð 250 K/min
- 20...85 °C
É II 2 G EEx ib IIC T6
Ex ib IIC
ð 0.69 W
negligibly small
TÜV 99 ATEX 1518
IP67
stainless steel, V4A (1.4571)
stainless steel, AISI 316Ti
100 Nm
male, M12 x 1
60 bar
G ¼"
ATEX category II 2 G, Ex Zone 1
Ex flow sensor for liquid media
Calorimetric principle
Adjustment via signal processor
Status displayed via signal processor
Intrinsically safe EEx ib IIC T6, for use
in zone 1
Plug-in device, M12 x 1
4-wire connection to an Ex0 processor
Wiring diagram
Functional principle
Our insertion - flow sensors operate on the
principle of thermodynamics. The measur-
ing probe is heated by several °C as against
the flow medium. When fluid moves along the
probe, the heat generated in the probe is dis-
sipated. The resulting temperature is mea-
sured and compared to the medium tempera-
ture. The flow status of every medium can be
derived from the evaluated temperature differ-
ence. Thus TURCK's wear-free flow sensors
reliably monitor the flow of gaseous and liquid
media.
