Makita HR2811F Parts Breakdown
Makita hr2811f hammer drill: specifications
Hide thumbs
Also See for HR2811F:
- Instruction manual (72 pages) ,
- Brochure & specs (2 pages) ,
- Instruction manual (10 pages)
Related Manuals for Makita HR2811F
Summary of Contents for Makita HR2811F

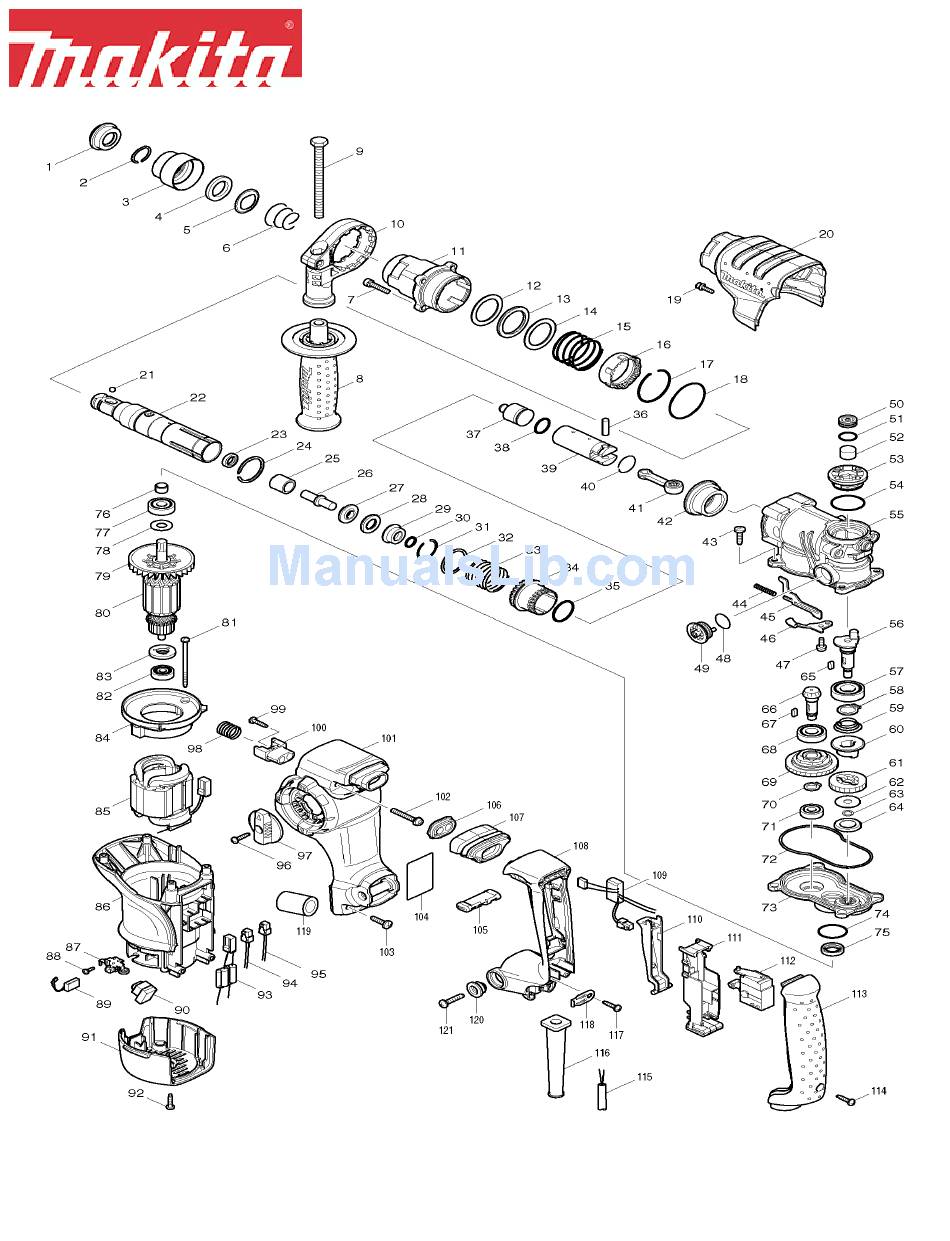

- Page 1 Parts Breakdown HR2811F Page 1 of 4 2/8/2008...
- Page 2 39 331776-1 PISTON CYLINDER, HR2811F 40 233954-8 RING SPRING 12, HR2811F 41 158282-9 CONNECTING ROD CPL., HR2811F 42 227532-4 SPIRAL BEVEL GEAR 31, HR2811F 43 266420-0 TAPPING SCREW 5X20, HR2811F 44 234019-9 COMPRESSION SPRING4, HR2811F 45 345814-3 LINK PLATE, HR2811F...
- Page 3 63 961034-7 RETAINING RING, HR2811F 64 345818-5 CUP WASHER 8, HR2811F 65 254239-9 KEY 4, HR3000C 66 227524-3 SPIRAL BEVEL GEAR 9, HR2811F 67 254239-9 KEY 4, HR3000C 68 210105-0 BALL BEARING 6001LLU, PW5001C 69 125386-2 TORQUE LIMITER ASS'Y, HR2811F...
- Page 4 Parts Breakdown 1,001 324219-0 DEPTH GAUGE,HP2050F 1,002 824789-4 PLASTIC CARRYING CASE, HR2811F 1,003 805776-2 PLASTIC CASE LABEL, HR2811F Page 4 of 4 HR2811F 2/8/2008...
