DHE SYSTEMS STAL1000 User Manual

Am/fm studio to transmitter audio link transmitter
Hide thumbs

Advertisement

Quick Links

Download this manual
Doc.: STAL100TX-UM-ENG
Rev.: 1.20
STAL1000
AM/FM STUDIO TO TRANSMITTER AUDIO LINK TRANSMITTER
USER´s MANUAL
ENGLISH VERSION R1.20
D
H
E
www.dhesystems.com
SYSTEMS

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAL1000 and is the answer not in the manual?

Questions and answers

Related Manuals for DHE SYSTEMS STAL1000

Summary of Contents for DHE SYSTEMS STAL1000

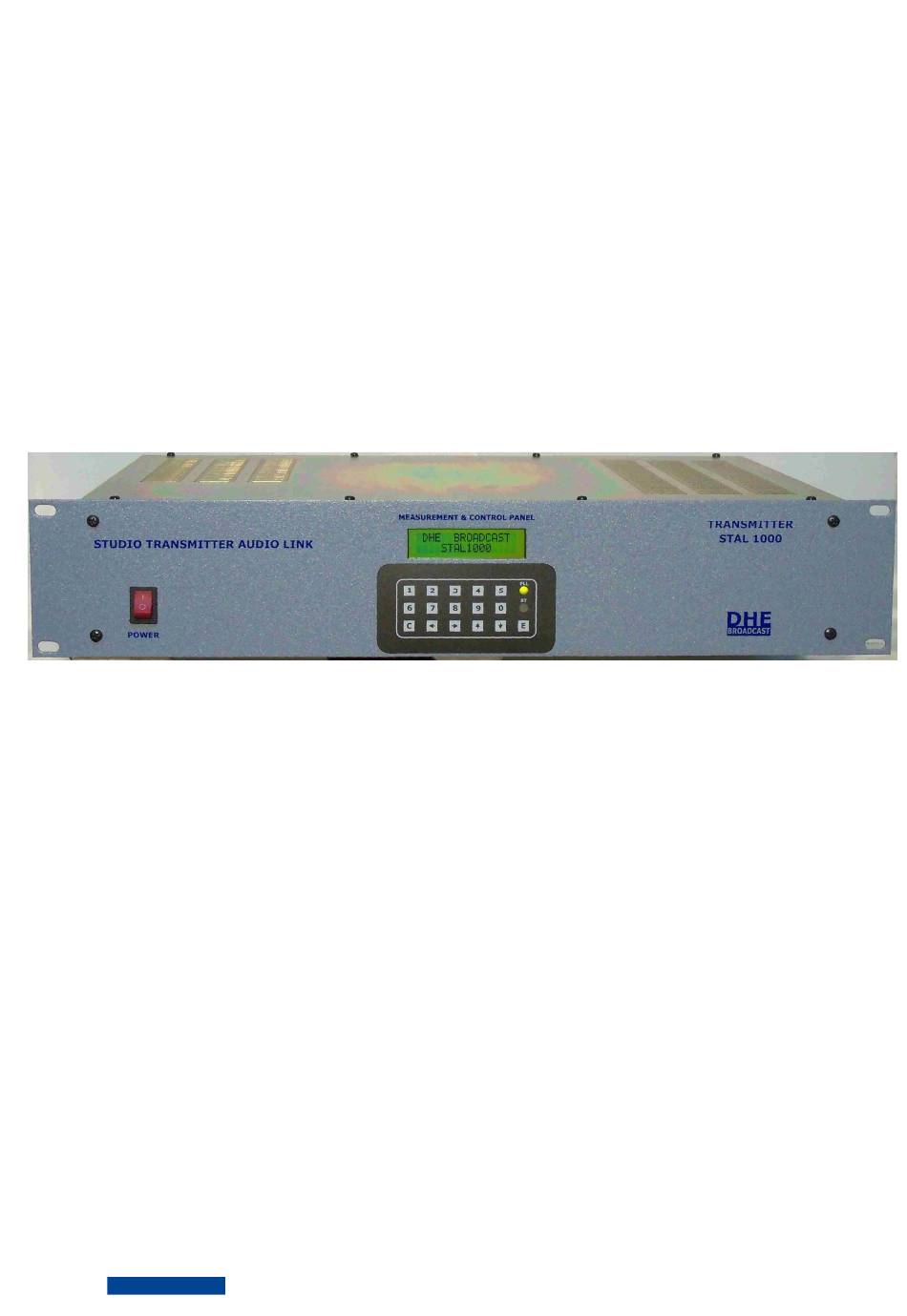

  • Page 1 Doc.: STAL100TX-UM-ENG Rev.: 1.20 STAL1000 AM/FM STUDIO TO TRANSMITTER AUDIO LINK TRANSMITTER USER´s MANUAL ENGLISH VERSION R1.20 www.dhesystems.com SYSTEMS...
  • Page 2 USER´s MANUAL INDEX RECEIVER STAL1000 Doc.: STAL1000TX- UMI-ENG Rev.: 1.20 SECTION CONTENS REVISIONS ABOUT THIS MANUAL WARRANTY UNPACKING INSTALATION MAINTENANCE AND SERVICING GENERAL DESCRIPTION TECHNICAL SPECIFICATIONS PROGRAMMING COMMANDS...
  • Page 3 USER´s MANUAL REVISIONS RECEIVER STAL1000 Doc.: STAL1000TX-UMR-ENG Rev.: 1.20 REVISION MODEL SOFTWARE DOC. REV. REPLACE TO REPLACED BY DATE STAL1000-TX 1.00 1.00 ---------- 1.20 10/02/13 STAL1000-TX 1.20 1.20 1.00 ---------- 15/06/14 SECTION 1...

  • Page 4: About This Manual

    ABOUT THIS MANUAL Doc: STAL1000TX-ATM Rev.: 1.20 This manual has been written with the purpose of providing a general explanation, serve as reference and support and it shall be used only by qualified technical personnel. It should be noted that this equipment uses widely surface mount technology (SMT) components , so at certain times and to a severe fault there is no chance to repair the module/s and will be necessary to replace it/s.

  • Page 5: Warranty

    Doc.: STAL1000TX-WAR Rev.: 1.20 DHE SYSTEMS warrants this equipment for a period of one (1) year from the date of delivery against defects in manufacturing workmanship and / or defective material at no extra charge. To comply with this warranty the equipment should be sent to the factory in...
  • Page 6 UNPACKAGING Doc.: STAL1000TX-UN-EN Rev.: 1.20 This equipment was tested, inspected and packed carefully at the factory. Check upon receipt that the packaging is in perfect condition, and for any bumps or breaks on the packaging itself or safety belts. If this happens document it immediately upon receipt of the equipment.
  • Page 7 Doc: STAL1000TX- WN-ENG Rev: 1.20 WARNING THIS EQUIPMENT HAS A FACTORY SUPPLIED POWER AC CORD WITH GROUNDED PIN. BEFORE TO CONNECT THE UNIT TO THE AC POWER LINE, CHECK FOR A GOOD AC INSTALLATION GROUND. IF THE AC INSTALLATION HAS A POOR GROUND THE OPERATION OF THE UNIT WILL BE NOT SURE FOR THE PERSONNEL.
  • Page 8 Doc.: STAL1000TX-INS Rev.: 1.20 INSTALALATION Before proceeding with the connection of the equipment to the electrical network, verify that the voltage of the same is within the operation range of the equipment, and that it is off. If you are not sure that the network power is clean, stable and free of transients, a stabilizer and transient suppressor of at least 100 W of power should be used.
  • Page 9 SERVICING AND MAITENANCE FOR THE STAL1000 TRANMITTER Doc.: STAL1000TX-MAN-ENG Rev.: 1.20 This equipment has been designed and built to operate in a continuous cycle without degradation of its parameters, however it may require maintenance and / or repair in certain occasions, or in case of failures caused by abnormal situations in the electrical network, electric discharges on the power lines , signal, data, control and antenna.
  • Page 10 SECTION 6...
  • Page 11 Doc.: STAL1000TX-GD-ENG Rev.: 1.20 The AM / FM STAL1000 link transmitter is a state-of-the-art equipment, the result of the experience accumulated over the years in the manufacture of broadcasting and communications equipment. Designed and built to comply with international standards incorporates synthesized technology, programming and measurement of parameters in an agile and simple way through the multifunction panel with keyboard and display, and operates within the band for which it is programmed without adjustments.
  • Page 12 TECHNICAL SPECIFICATIONS FOR THE STAL1000- TRANSMITTER - R1.20 Doc.: STAL1000TX-SPE-ENG Rev.: 1.20 Synthesis type Direct FM. Frequency precission ±2.5 ppm after de 30 minutes. Temperatura range 0 a 45 °C. ± Frequency stability 2.5 ppm, 0°C to +45 °C. Frequency programming From keyboard in 25 Khz steps, protected by key.
  • Page 13 COMMANDS AND PROGRAMMING INDEX FOR THE STAL1000 TRANSMITTER Doc.: STAL1000TX-CPI-ENG Rev.: 1.20 SECCION CONTENS 9/ 1 ACCESS FUNCTIONS AND COMMANDS DECRIPTIONS 9/ 2 USER MODE 9/10 MULTIFUNCTION 9/15 INITIAL SETTINGS 9/21 TRANSMITTER INFO 9/23 USER MODE HELP 9/24 COMMANDS QUICK REFERENCE...

  • Page 14: Commands Description

    Power on. Alter a few seconds the display will show this message: DHE BROADCAST STAL1000 The STAL1000 Transmitter is ready to receive commands from the keyboard. Below is the list of the keys assigned functions for the keyboard: FUNCTION Enter, is the first key to be pressed to access the menu and to exit from the previous sub menus.

  • Page 15: User Programming

    2-USER PROGRAMMING Sequence: E + 1 The display shows: USER PROG FUNC(0:HELP): € € € € The available options are: : Exit to P1.1 E+1+1: Transmitter enabled/disabled E+1+2: Frequency setting E+1+3: Access to memories E+1+4: Input attenuator & modulation level E+1+5: Output power setting E+1+0: Help for “User programming mode”...
  • Page 16 2.1-Transmitter enable / disable Sequence: E + 1 +1 It is a cyclic operation key, if the transmitter is disabled, it activates it and vice versa. If the transmitter is disabled, the display shows: TRANS: ENA WAIT The "TX" LED on the MEASURING AND CONTROL PANEL will light up. At the end of the operation the panel returns to P2.
  • Page 17 2.2-Frequency settings Sequence: E + 1 + 2 The display shows: CURRENT KEY : € € € € If you do not want to change the frequency, press "E" to return to P2. Enter the current four digit user key. By default, the key is 1234. The typed key is not shown, the characters are replaced by "*".
  • Page 18 2.3- Access to memories Sequence: E + 1 + 3 The display shows: 1:DOWN MEM 2:UP MEM Press "E" to return to P2 2.3.1-Download frequencies stored in memories Sequence: E + 1 + 3 + 1 The display shows: CURRENT KEY : € € € € If you do not want to access a memory, press "E"...
  • Page 19 2.3.2- Program the frequencies to be stored in memory Sequence: E + 1 + 3 +2 The display shows: CURRENT KEY : € € € € If you do not want to access a memory, press "E" to return to P2.2 Enter the current four digit user key.
  • Page 20 2.4-Input level attenuator & modulation level Sequence: E + 1 + 4 The display shows: MOD: 75 K AT: 6dB € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ The digital control of the input level attenuator level allows to modify it between -10dB and +10 dB.
  • Page 21 2.5-Output power Sequence: E +1 + 5 The display shows: FWD: 10 W REF: 0 W The digital control of the output power allow to modify it between 0 and the maximum value assigned for the transmitter. If "E" is pressed without changing the output level value, it is returned to P2. To modify the output power, press the “↑...
  • Page 22 2.6-User program help. Sequence: E + 1 + 0 The display shows: 1:TRA 2:KEYB FRE 3:MEM FRE 4:MOD For 3 seconds, then: 5:PO For 3 seconds, then returns to P2. Press “E” to return to P2. SECTION 9/9...

  • Page 23: Multifunction Meter

    3-MULTIFUNCTION METER Sequence: E + 2 The display shows: METER FUNC(0:HELP): € The available options are the following: : Returns to P1.1 E+2+1: Forward and reflected output power E+2+2: Shows the modulation level E+2+3: Main power suply voltage. E+2+0: Help of the “Multifunction Meter” Si al seleccionar una función para el medidor esta es incorrecta y/o está...
  • Page 24 3.1-Forward and Reflected output power Sequence: E + 2 + 1 The display shows: FWD: 10 W REF: Forward and reflected values are shown in digital format with 1 w of resolution. Press “E” to return to P3. SECTION 9/11...
  • Page 25 3.2-Modulation level Sequence: E + 2 + 2 The display shows: MOD: 65 Kh € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € € ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ The modulation level is displayed in digital and analog format in the form of bars.
  • Page 26 3.3-Main power supply voltage. Sequence: E + 2 + 3 The display shows: VOLT: 12.5 V For the 15 Watts option. VOLT: 13.6 V For the 50 Watts option. The voltage is displayed in digital format with a resolution of 3 ½ digits. Press “E”...
  • Page 27 3.4-Multifunction meter help Sequence: E + 2 + 0 The display shows: 1:POT 2:MOD 3:PS Press “E” to return to P3. SECTION 9/14...

  • Page 28: Initial Settings

    4-INITIAL SETTINGS Sequence: E + 3 The display shows: INITIAL SETTINGS FUNC(0:HELP): € € € € The available options are the following: : Returns to P1.1 E+3+1: Operation mode E+3+2: Preenpasis E+3+3: User key E+3+4: Display language E+3+0: Initial settings help SECTION 9/15...
  • Page 29 4.1-Operation mode Sequence: E + 3 + 1 The display shows: MODE: XXX MODE: € € € € XXX: Represents the current mode in witch the equipment is operating. If you don´s want to change tehe operating mode, press “E” to return to P4. Enter the now mode pressing: 1: Multiplex 2: Mono...
  • Page 30 4.2-Preenphasis Sequence: E + 3 + 2 This function is available when the equipment is setted in Mono mode,. The display shows: PEEN: XX USEC PEEN: XX: Represents the current preenphasis.. If you don´s want to change the deenohasis, press “E” to return to P4. Enter the new deenphasis valus pressing: 0 usec 2: 25 usec...
  • Page 31 4.3-User key Sequence: E + 3 + 3 The display shows: CURRENT: € € € € If you don´s want to change the key, press “E” to return to P4. Enter the current four digit user key. By default, the key is 1234. The characters typed are not displayed, and replaced by "*".
  • Page 32 4.4-Display language Sequence: E + 3 + 4 The display shows: DISPLAY: XXX DISPLAY: € € € € XXX: Represents the current display language. If you don´s want to change the deenphasis, press “E” to return to P4. Select the desired language pressing: 1: Spanish 2: English If the new deenphasis selected is incorrect, the message “ERROR”...
  • Page 33 4.5- Initial settings help Sequence: E + 3 + 0 The display shows: 1:MODE 2:PREE 3:KEY 4:DIS For 2 seconds. Press “E” to return to P4. SECTION 9/20...

  • Page 34: Equipment Information

    5-EQUIPMENT INFORMATION Sequence: E + 4 The display shows: INFO FUNC(0:HELP): € € € € The available options are the followings: : Returns to P1. E+4+1: Frequency range. E+4+2: Current frequency. E+4+3: Stored frequencies in memory. E+4+4: Maximum output power available. E+4+5: Serial number &...
  • Page 35 5.5- Serial number & software version Sequence: E + 4 + 5 The display shows the serial number of the equipment and the software version for 3 seconds. SER :XXXX SOFT:1.20 XXX: Represents the serial number. Then the message: WWW. SONWEL.COM For 3 seconds, and then returns to P5.
  • Page 36 6-USER MODE HELP Sequence: E + 0 The display shows: 1:USER 2:INS 3:INITIAL 4:INFO For 3 seconds, then returns to P1.1. Press “E” to return to P1.1. SECTION 9/23...
  • Page 37 7- QUICK GUIDE FOR USER MODE COMMANDS FOR THE STAL1000 RECEIVER Soft version: 1.20 PRESS “E” TO ENTER IN “USER MODE” 1: User mode Sequence: E+1+_ 1: Transmitter enabled/disabled 2: Frequency setting. User key protected. Default key 1234 To exit without to change it press “E”...
