Summary of Contents for DHE SYSTEMS STAL100
Page 1

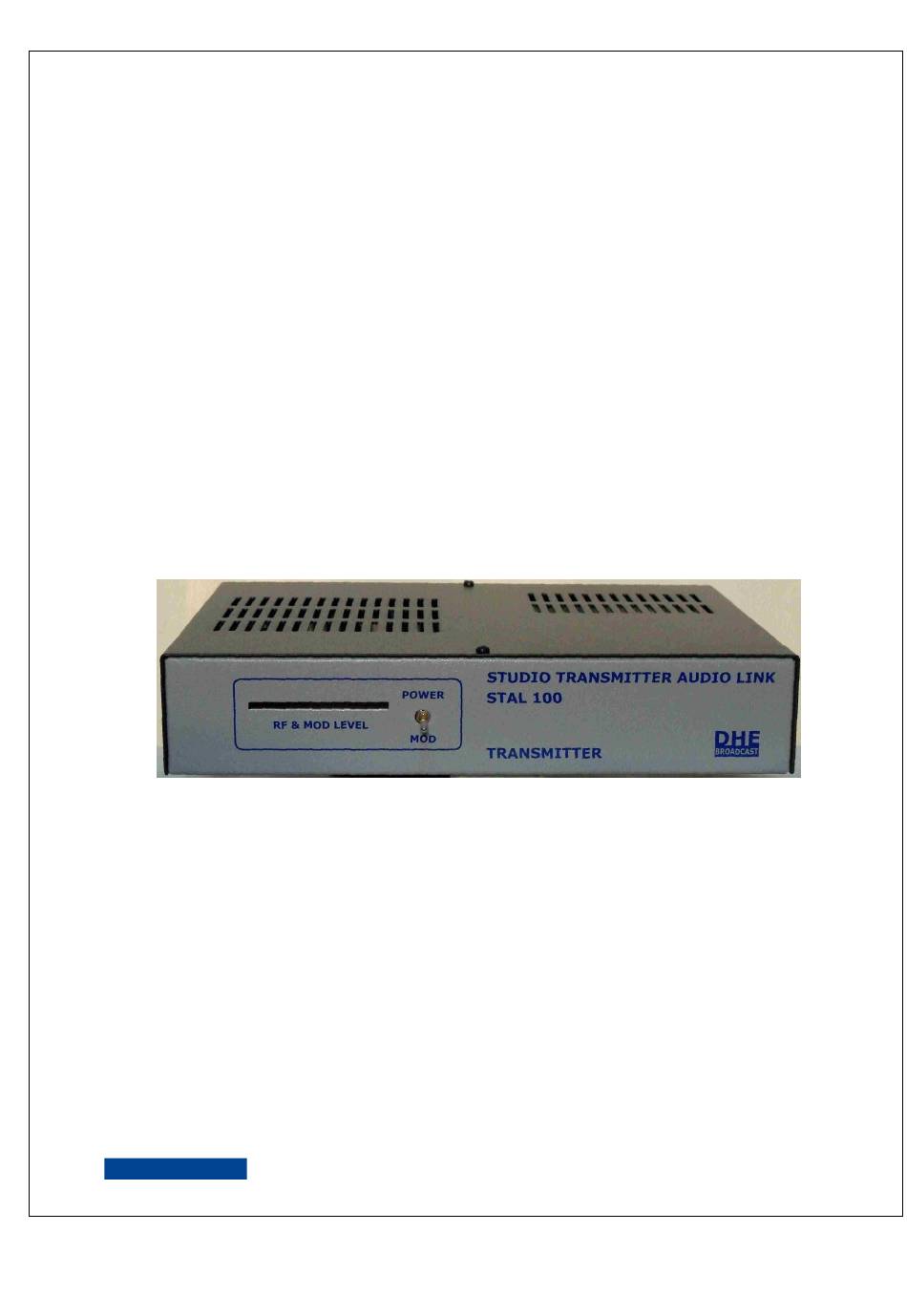

Doc.: STAL100TX-UM-ENG Rev.: 1.00 STAL100 AM/FM STUDIO TO TRANSMITTER AUDIO LINK TRANSMITTER USER´s MANUAL ENGLISH VERSION R1.00 SYSTEMS www.dhesystems.com...
Page 2
USER´s MANUAL INDEX TRANSMITTER STAL100 Doc.:ST AL100TX-UMI-ENG Rev.: 1.00 SECTION REVISIONS ABOUT THIS MANUAL WARRANTY UNPACKAGING INSTALATION MAINTENANCE AND SERVICING GENERAL DECRIPTION TECHNICAL SPECIFICATIONS OPERATION MAIN BOARD COMPONENTS LAYOUT FREQUENCY TABLE SETTINGS...
Page 3
USER´s MANUAL REVISIONS TRANSMITTER STAL100 Doc.: STAL100-TX-UMR-ENG Rev.: 1.00 REVISION MODEL SOFTWARE DOC. REV. REPALCE TO REEMPLAZED DATE STAL100-TX 1.00 1.00 ---------- ---------- 02/01/13 SECTION 1...
ABOUT THIS MANUAL Doc.: STAL100TX-AUM-ENG Rev.: 1.10 This manual has been written with the purpose of providing a general explanation, serve as reference and support and it shall be used only by qualified technical personnel. It should be noted that this equipment uses widely surface mount technology (SMT) components , so at certain times and to a severe fault there is no chance to repair the module/s and will be necessary to replace it/s.
Doc.: STAL100TX-WA-ENG Rev.: 1.00 DHE SYSTEMS warrants this equipment for a period of one (1) year from the date of delivery against defects in manufacturing workmanship and / or defective material at no extra charge. To comply with this warranty the equipment should be sent to the factory in...
Page 6
UNPACKAGING Doc.: STAL100TX-UN-EN Rev.: 1.00 This equipment was tested, inspected and packed carefully at the factory. Check upon receipt that the packaging is in perfect condition, and for any bumps or breaks on the packaging itself or safety belts. If this happens document it immediately upon receipt of the equipment.
Page 7
Doc.: STAL100TX-WN-ENG Rev.: 1.00 WARNING THIS EQUIPMENT HAS A FACTORY SUPPLIED POWER AC CORD WITH GROUNDED PIN. BEFORE TO CONNECT THE UNIT TO THE AC POWER LINE, CHECK FOR A GOOD AC INSTALLATION GROUND. IF THE AC INSTALLATION HAS A POOR GROUND THE OPERATION OF THE UNIT WILL BE NOT SURE FOR THE PERSONEL.
Doc.: STAL100TX-INS-ENG Rev.: 1.00 INSTALLATION Before to connect the equipment to the AC line, power off the unit and check for the correct and clean AC mains voltage level. If you are not sure that the mains AC volptage is clean, stable and free of transients you must install and sabilizer should a stabilizer and surge suppressor with at least 100 W of power acapacity.
Page 9
SERVICING AND MAITENANCE RECEIVER STAL100 Doc.: STAL100RX-MAN-EN Rev.: 1.00 This equipment has been designed and built to operate continuously without degradation of its parameters, but on certain occasions may require maintenance and / or repair, or under failures caused by abnormal situations in the power AC line, electric shock on power lines , signal, data, control and antenna.
Page 10
GENERAL DECRIPTION OF THE TRANSMITTER STAL 100 Doc.: STAL100RX-GD-ENG Rev.: 1.00 STAL100 transmitter is a state of the art equipment, result of the experience accumulated over the years in the manufacture of broadcasting and communications equipment. Designed and built to meet international standards and incorporates synthesized technology.
Page 11
TECHNICAL SPECIFICATIONS TRANSMITTER STAL100 Doc.: STAL100TX-TE-ENG Rev.: 1.00 200 Mhz - 400 Mhz in 25 Mhz sub ranges, 1000 channels with 25 Khz Frequency range spacing. Frecuency programming Dip switch. ± Frecuency stability 5 ppm, 0 °C to +45 °C.
Page 12
OPERATION OF THE TRANSMITTER STAL100 Doc.: STAL100RX-ENG Rev.: 1.00 Connect program inputs, RF outputs and AC power according with INSTALATION (5/1) 2- Power ON, after a few swconds the transmitter will be available to operate in the frequency programed in dipswitchs.
