  • Page 1 02.16.2022 - Rev. A Reflexomat XS (RXS) Originalbetriebsanleitung Original operating manual Mode d’emploi original Manual de instrucciones original Manual de instruções original Istruzioni per l'uso originali Eredeti üzemeltetési utasítás Izvirna navodila za obratovanje Originálny návod na obsluhu originální návod k obsluze Tłumaczenie instrukcji oryginalnej...

  • Page 2: Table Of Contents

    RS-485 interface ..............21 ivz_en Installation and commissioning certificate......... 21 English Reflexomat X S 02.16.2022 - Rev. A Reflexomat XS — 02.16.2022 - Rev. A English — 15 Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz Web: www.cookeindustries.co.nz...

  • Page 3: Notes On The Operating Manual

    Reflex Winkelmann GmbH accepts no liability for any damage resulting from failure to observe the information in this operating manual. In addition to the Personnel requirements requirements set out in this operating manual, national statutory regulations...

  • Page 4: Description Of The Device

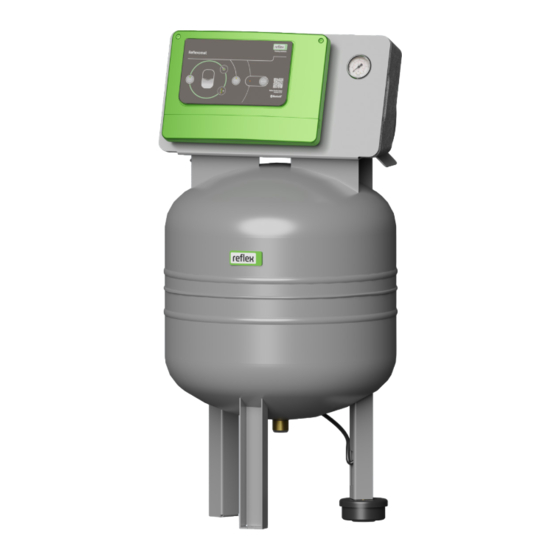

    Nameplate pressure sensor and the water level with the "LIS" weight measuring cell and the values are then displayed via the app,  9.1 "Reflex Control Smart",  23. The nameplate provides information about the manufacturer, the year of manufacture, the manufacturing number and the technical data.

  • Page 5: Scope Of Delivery

    For make-up with water If live parts are touched, there is risk of life-threatening injuries. – Solenoid "Fillvalve" with ball valve and Reflex Fillset for make-up • Ensure that all phases of the mains power supply to the product are with potable water.

  • Page 6: Preparatory Work

    • If necessary, provide support structures for the pipelines or equipment. • If you have any questions, please contact Reflex After Sales & Service. Proceed as follows for the installation: • Position the device.

  • Page 7: Installation Of The Weight Measuring Cell

    Expansion line Reflex Fillset Impulse Primary vessel Measuring range The Reflex Servitec S degassing and make-up unit degasses the water from the 80 l 0 – 4 bar system circuit and the make-up water. The automatic make-up for the system circuit is controlled by the pressure maintenance system.

  • Page 8: Power Supply

    24 V  Note! Filling level measurement Factory The app guides you through commissioning  9.1 "Reflex Control • Analogue input 4-20 mA Smart",  23. Requirements for initial commissioning The Reflexomat will be ready for initial commissioning when the tasks described 24 V in the "Installation"...

  • Page 9: Venting The Vessels

    The vessel is automatically filled to 12% of its volume,  6.4 "Make- – • Make-up up and degassing variants",  20. • Potential free group fault. 22 — English Reflexomat XS — 02.16.2022 - Rev. A Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz Web: www.cookeindustries.co.nz...

  • Page 10: Controller

    Reflex Control Smart Default settings Access to the Reflexomat XS is possible using the Reflex Control Smart app via a The device controller is shipped with the following default settings. Other Bluetooth-connected smartphone or tablet. The app is available from the app settings must be made during assisted commissioning using the Reflex Control store (Android or iOS), or via the QR code given below.
  • Page 11 Contact water meter measures without make-up • Check system for leakage. request • Clean make-up valve. • Replace make-up valve (if necessary). 24 — English Reflexomat XS — 02.16.2022 - Rev. A Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz Web: www.cookeindustries.co.nz...

  • Page 12: Maintenance

    Checking switching points (during vessel draining) Maintenance is completed. Prerequisite for checking the switching points are the following correct settings: • Minimum operating pressure P ,  9.1 "Reflex Control Smart",  23.  Note! • Filling level measurement in the primary vessel.

  • Page 13: Inspection

    12.2 Conformity and standards Device conformity declarations are available on the Reflex homepage. Disassembly and disposal www.reflex-winkelmann.com/konformitaetserklaerungen DANGER Alternatively, scan the QR code: Risk of serious injury or death due to electric shock.
  • Page 14 Montasje- og igangsettingssertifikat - Enheten ble montert og satt i drift i henhold til bruksanvisningen. Innstilling av styringen tilsvarer de lokale forholdene. 284 — Ελληνικά Reflexomat XS — 02.16.2022 - Rev. A Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz Web: www.cookeindustries.co.nz...
  • Page 15 Notizen / Notes / Notes / Notas / Notas / Note / Jegyzetek / Beležke / Poznámky / Poznámky / Notatki / Pastabos / Piezīmes / Märkmed / Notities / Noter / Notater / Anteckningar / Merkinnät / Заметки / Notiţe / Notlar / Σημειώσεις Ελληνικά — 285 Reflexomat XS — 02.16.2022 - Rev. A Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz Web: www.cookeindustries.co.nz...
  • Page 16 Reflex Winkelmann GmbH Gersteinstraße 19 59227 Ahlen, Germany +49 (0)2382 7069-0 +49 (0)2382 7069-9546 www.reflex-winkelmann.com Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz Web: www.cookeindustries.co.nz...
