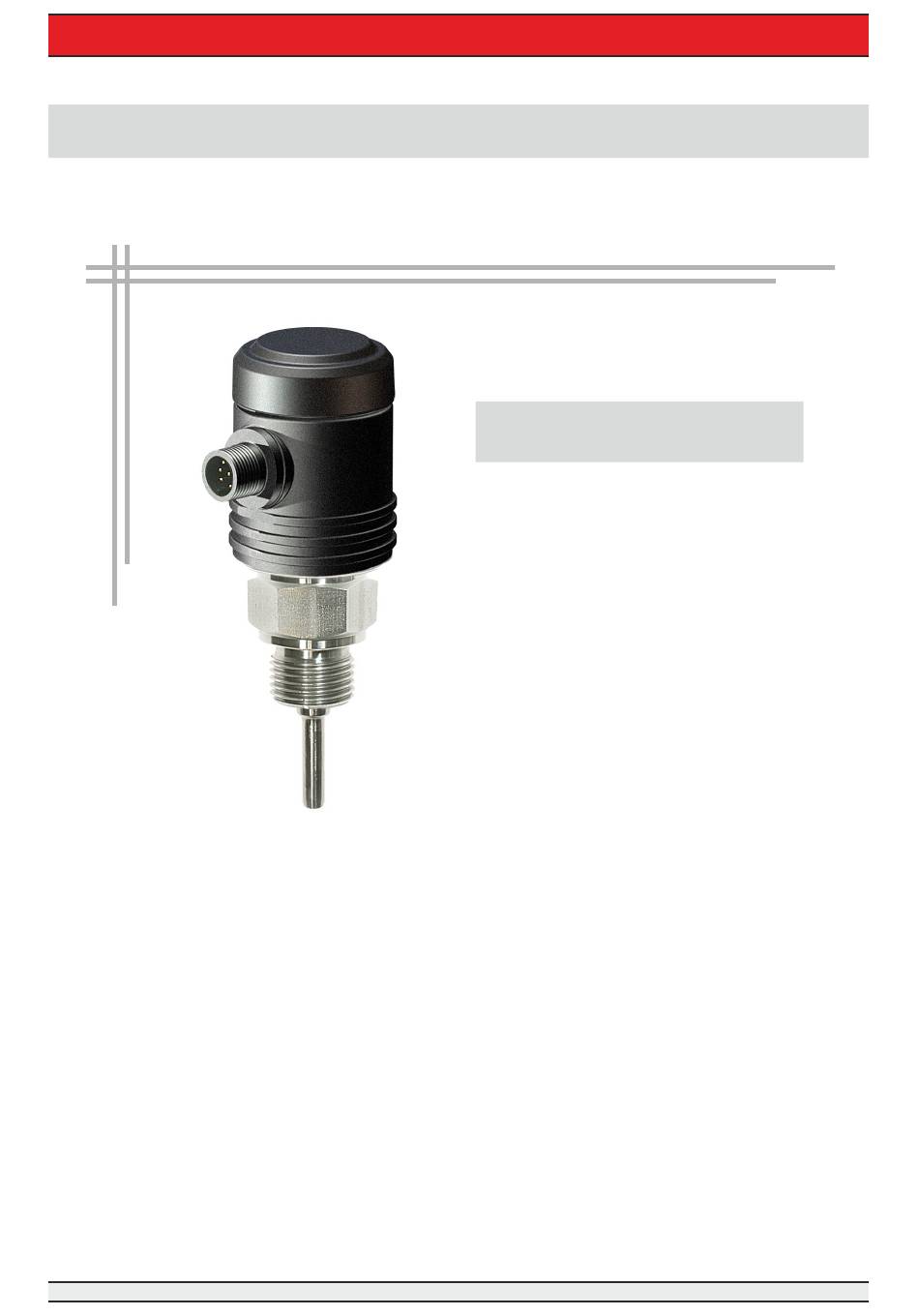

- Page 1 METS-WTEx Screw-in Resistance Temperature Sensor Operating Manual METS-WTEx Screw-in Resistance Temperature Sensor METS-WTEx-M Page-1...
-
Page 2: Table Of Contents
Electrical Characteristics Environmental Conditions Start-Up, Operation Function Before Mounting Product Label Mounting Electrical Connection Pin Assignment Configuration Function Test Fault Detection / Fault Current Fault Recovery Maintenance, Dismounting, Return, Cleaning, Disposal Technical Data Dimensions Screw-in Resistance Temperature Sensor METS-WTEx-M Page-2... -
Page 3: General (Information, Signs And Abbreviations)
- If the serial number on the product label becomes illegible (e.g. through mechanical damage), traceability can not be ensured. - The resistance thermometer METS-WTEx described in this manual is carefully designed and manufactured using state-of-the-art technology. Every component undergoes strict quality inspection in all stages of manufacture. -
Page 4: Safety Instructions
Further important safety instructions are in the individual chapters. 3.1 Intended Use The resistance thermometer METS-WTEx is suitable for temperature measurement in liquid and gaseous media. It has a maximal range of -50…+425°C and can be used under a pressure of up to 25 bar. -
Page 5: Ex Safety Instructions
Approval properties: For gases; Installation in zone 0, zone 1 and zone 2. ATEX: IECEx TUN 21.0005X IECEx: TÜV 21 ATEX 201293 X The complete certificates are available on request and for download from our website www.mueller-ie.com. Screw-in Resistance Temperature Sensor Page-5 METS-WTEx-M... -
Page 6: Special Provisions For Operation In Hazardous Areas
● For EPL Ga, EPL Ga/Gb and EPL Gb applications, the temperature sensor METS-WTEx has to be installed and used in such a way that electrostatic charges due to operation, maintenance and cleaning are excluded. -
Page 7: Electrical Characteristics
Inductance of 330m cable = 330 µH Connections Voltage U = 12,6 V Current U = 48 mA Power P = 148 mW Characteristic line linear Effective internal capacitance C Negligibly small Effective internal inductance L Negligibly small Screw-in Resistance Temperature Sensor Page-7 METS-WTEx-M... -
Page 8: Environmental Conditions
-20 °C … +(95 °C - Pi x 55 K/W), -50 °C ... +80 °C max. 50 °C -20 °C … +(80 °C - Pi x 55 K/W), -50 °C ... +65 °C max. 50 °C Screw-in Resistance Temperature Sensor Page-8 METS-WTEx-M... -
Page 9: Start-Up, Operation
Start-Up, Operation Function The METS-WTEx is screwed directly into the process via the process connection. A change in resistance of the sensor element in the tip of the thermowell is transformed into an electrical standard signal by a measuring amplifier. The signal changes proportional to the temperature and can be evaluated. -
Page 10: Electrical Connection
View: Plug pins of plugs (at device) M12, 4-pole M12, 5-pole M12, 8-pole Super Seal, 3-pole Deutsch DT04, 3-pole Deutsch DT04, 4-pole Bayonet DIN, 4-pole Valve, 4-pole MIL, 6-pole Cable, 4-, 6-pole LIYCY 4 or 6x0,25 mm² gray Screw-in Resistance Temperature Sensor METS-WTEx-M Page-10... -
Page 11: Configuration
(IN) Configuration The METS-WTEx can be programmed with the help of the configuration and calibration software TrComm. A DEV- KMA configurator is required for programming. The TrComm-software is included in the scope of delivery of the DEV-KMA, alternatively the software is also available separately on request. -
Page 12: Function Test
If the current rises above 20,5 mA, a fault current of 21 will be put out. The same is the case for sensor break. 21,0 20,5 20,0 -1,25 103,125 Measuring signal (% of range) Current output and measuring signal Screw-in Resistance Temperature Sensor Page-12 METS-WTEx-M... -
Page 13: Fault Recovery
EMC interference sources in the, Shield sensor, environment, e.g. converter shield wire, remove interference source, increase distance to interference source Earth circuits Eliminate potentials, supply isolators or galvanically isolated measuring amplifiers Note: Unjustified reclamations can incur additional costs. Screw-in Resistance Temperature Sensor METS-WTEx-M Page-13... -
Page 14: Maintenance, Dismounting, Return, Cleaning, Disposal
Maintenance, Dismounting, Return, Cleaning, Disposal Maintenance The screw-in temperature sensors METS-WTEx require no maintenance and contain no components which could be repaired or replaced. Dismounting Rest media in dismounted instruments can result in a risk to personnel, the environment and equipment. -
Page 15: Technical Data
Short-circuit resistance: Yes Environmental Conditions Temperature: Op. range: -20...+75 °C (2-wire) / -20...+50 °C (3-wire) Medium: -50...+200 °C Storage: -40...+100 °C Condensation: uncritical Approval: ATEX: TÜV 21 ATEX 201293 X IECEx: IECEx TUN 21.0005X Screw-in Resistance Temperature Sensor METS-WTEx-M PT-ST-M Page-15... -
Page 16: Dimensions
PN 25 Device protection: Protection class: at least IP65 (electronics) PCB: potted Dimensions (in mm) Connection side Connection top Neck pipe approx. 40 approx. 52 approx. 13 Subject to change, version 44-785 Revision n/a Screw-in Resistance Temperature Sensor METS-WTEx-M PT-ST-M Page-16...
