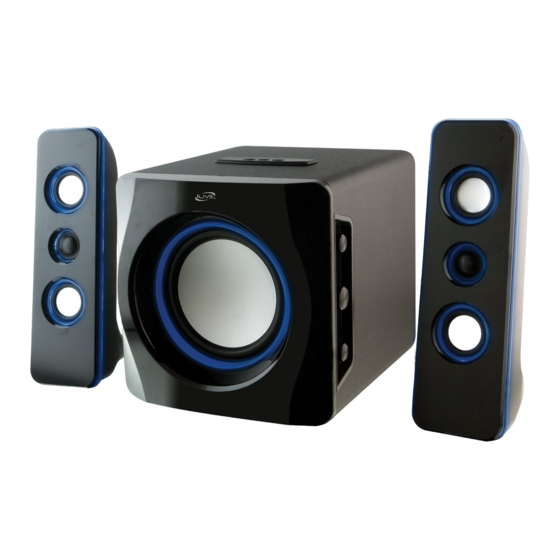

iLive IHB23 User Manual

Wireless Speaker System with Subwoofer
User's Guide for Model IHB23 v1688-01
FCC WARNINGS
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Features
• 2.1 channel stereo sound
• Built-in amplifier
• 3 speakers: left/right/subwoofer
• LED light effects
• Supports Bluetooth wireless
• Wireless range: 33 ft.
• RCA stereo audio inputs
• 3.5mm speaker outputs
• Analog volume control
• Bass and Treble controls
• AC power: built-in AC power cable
Includes
• 3.5mm audio cable
• User's guide
Pairing
Indicator
Source
Press to switch between
Bluetooth and Line In modes.
Press to begin pairing.
TOP VIEW
SOURCE PAIR POWER
Power ON/OFF
Pair Bluetooth
ADDITIONAL WARNINGS
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In
order to disconnect the apparatus from the mains completely, the mains plug should be disconnected
form the mains socket outlet completely.
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or
sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining
where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass
between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: This product may contain chemicals known to the State of California to cause birth
defects, or other reproductive harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
Overview
FRONT VIEW
– TREBLE +
– VOLUME +
– BASS +
SIDE VIEW
120V~60Hz
REAR VIEW
Treble Up/Down
Volume Up/Down
Bass Up/Down
AUDIO INPUT
RCA Audio Input
R L
SPEAKER
OUTPUT
Stereo Speaker
L
Outputs
R
