Makita BTL061 Parts Breakdown
Makita btl061 impact driver: specifications
Hide thumbs
Also See for BTL061:
- User manual ,
- Instruction manual (37 pages) ,
- Technical information (9 pages)
Related Manuals for Makita BTL061
Summary of Contents for Makita BTL061

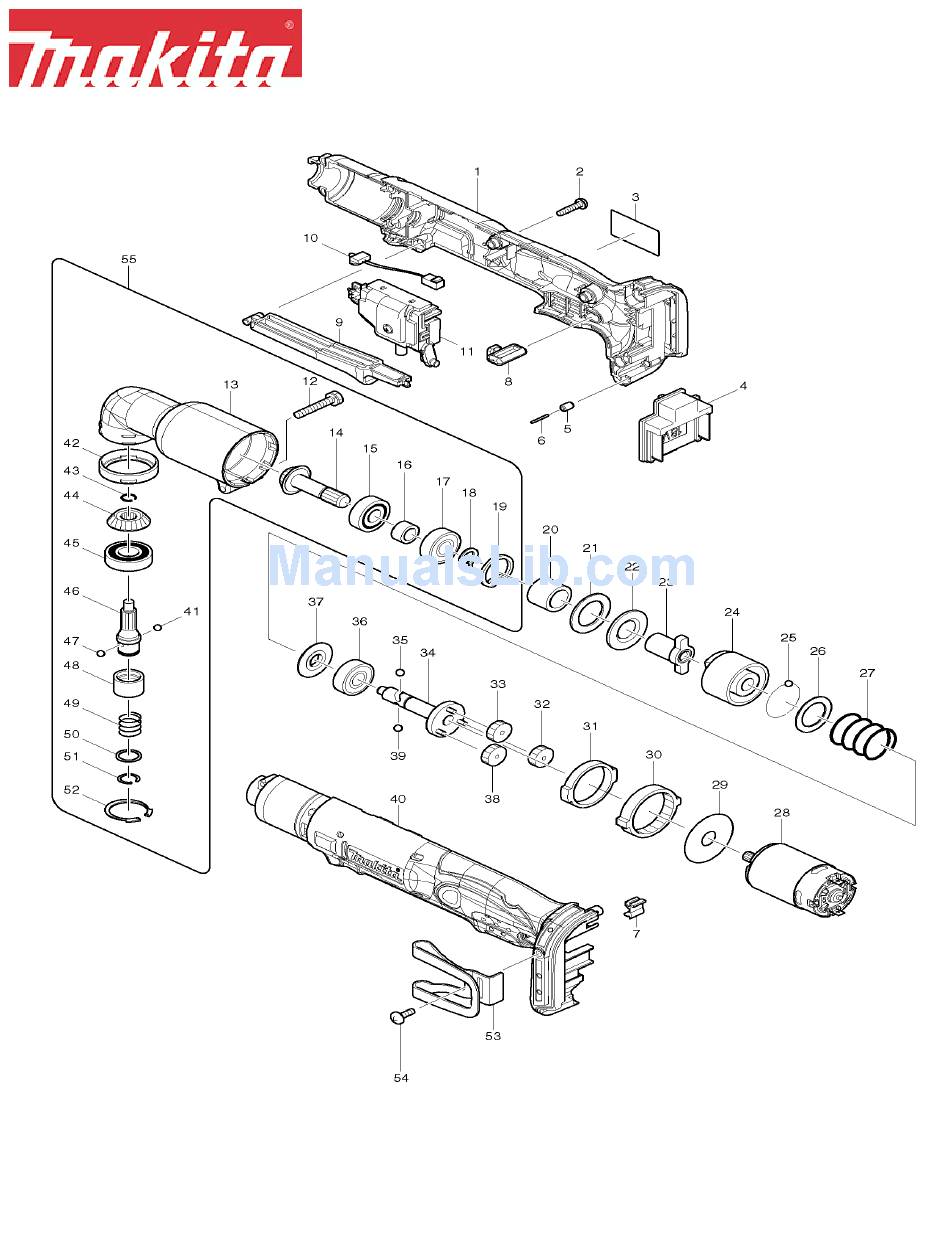

- Page 1 Parts Breakdown BTL061 Page 1 of 2 2/8/2008...
- Page 2 TERMINAL, BTD140 5 263036-2 RUBBER PIN 5, BTW251 6 268184-2 PIN 1.5, BTW251 7 424026-2 CUSHION, BTW251 8 450126-2 FR CHANGE LEVER, BTL061 9 450125-4 SWITCH LEVER, BTL061 10 631778-0 LED CIRCUIT, BTL061 11 650594-1 SWITCH, BTL061 12 265409-5 HEX BOLT M5X30, 6940D 13 152461-1 ANGLE HEAD CPL., 6940D...
