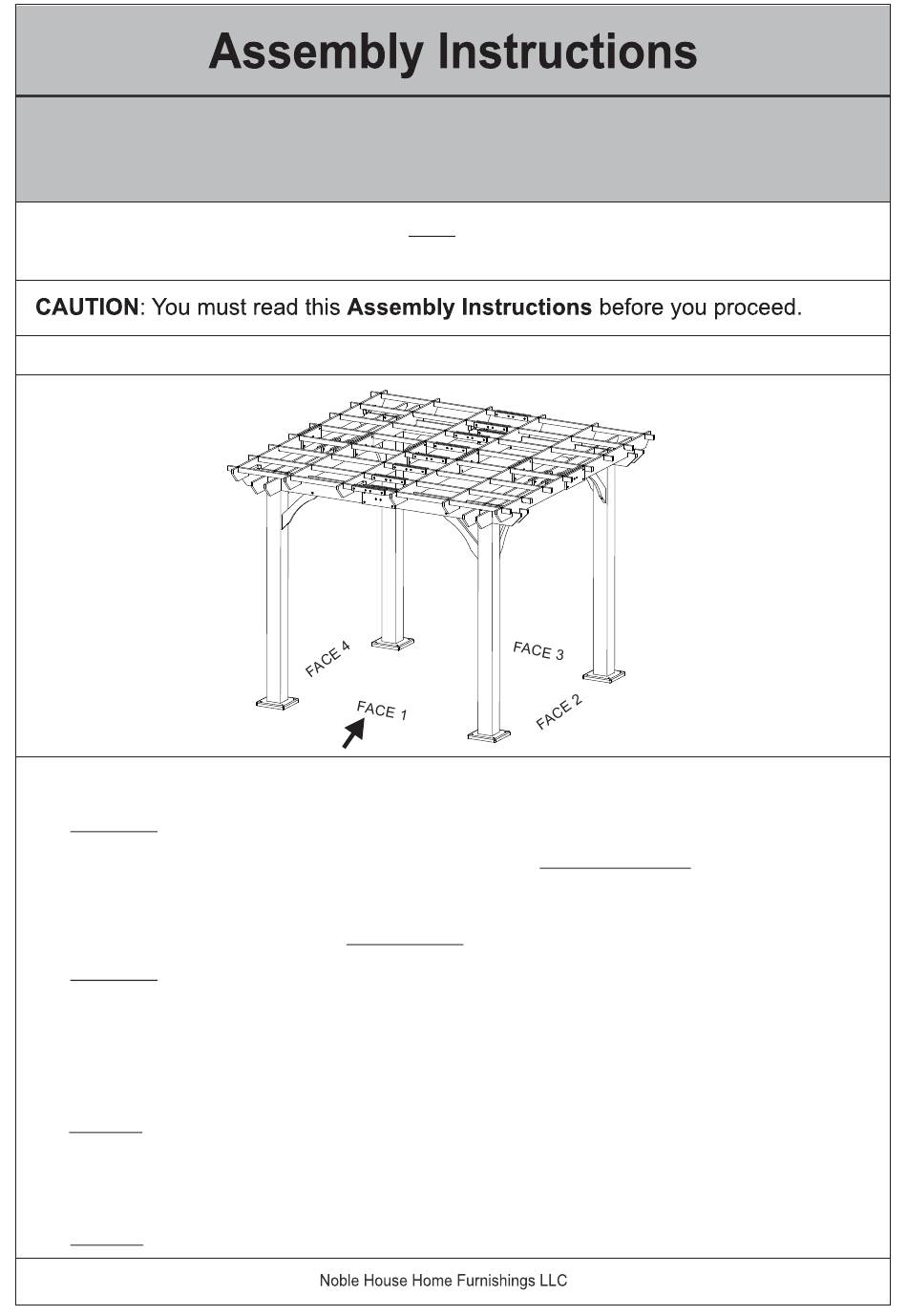

Noble House Home Furnishings SQUARE PERGOLA Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Note 1: Post Mounting Hardware is NOT included in this kit.
Please confirm with your Local Hardware Stores to determine the correct hardware.
Please look into the Hardware Box in Carton 3 of 3 for all hardware.
CAUTION : IT IS RECOMMENDED THAT YOU :
1. )
DO NOT USE THE PERGOLA DURING INCLEMENT WEATHER.
2. )
ENSURE ALL CHILDREN ARE SUPERVISED, AT ALL TIMES, DURING USE OF
PERGOLA.
3. )
UNATTENDED CHILDREN MUST NOT BE ALLOWED TO USE THIS PERGOLA.
4. )
DO NOT HANG ANY HEAVY OBJECT(s) ONTO ANY PART OF THE PERGOLA.
5. )
USE STEP LADDERS ONLY TO ASSEMBLE THIS PERGOLA.
6. )
IN THE PROCESS OF ASSEMBLY, IF YOU SHOULD ACCIDENTALLY LOSE ANY
HARDWARE,
DO NOT REPLACE WITH YOUR OWN HARDWARE.
7. )
IN THE PROCESS OF ASSEMBLY, IF YOU SHOULD ACCIDENTALLY DAMAGE
THE WOOD,
DO NOT PROCEED WITH THE ASSEMBLY.
SQUARE PERGOLA
.
.
1 OF 34
