GW03
GATEWAY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the GW03 and is the answer not in the manual?

Questions and answers

Related Manuals for Ember GW03

Summary of Contents for Ember GW03

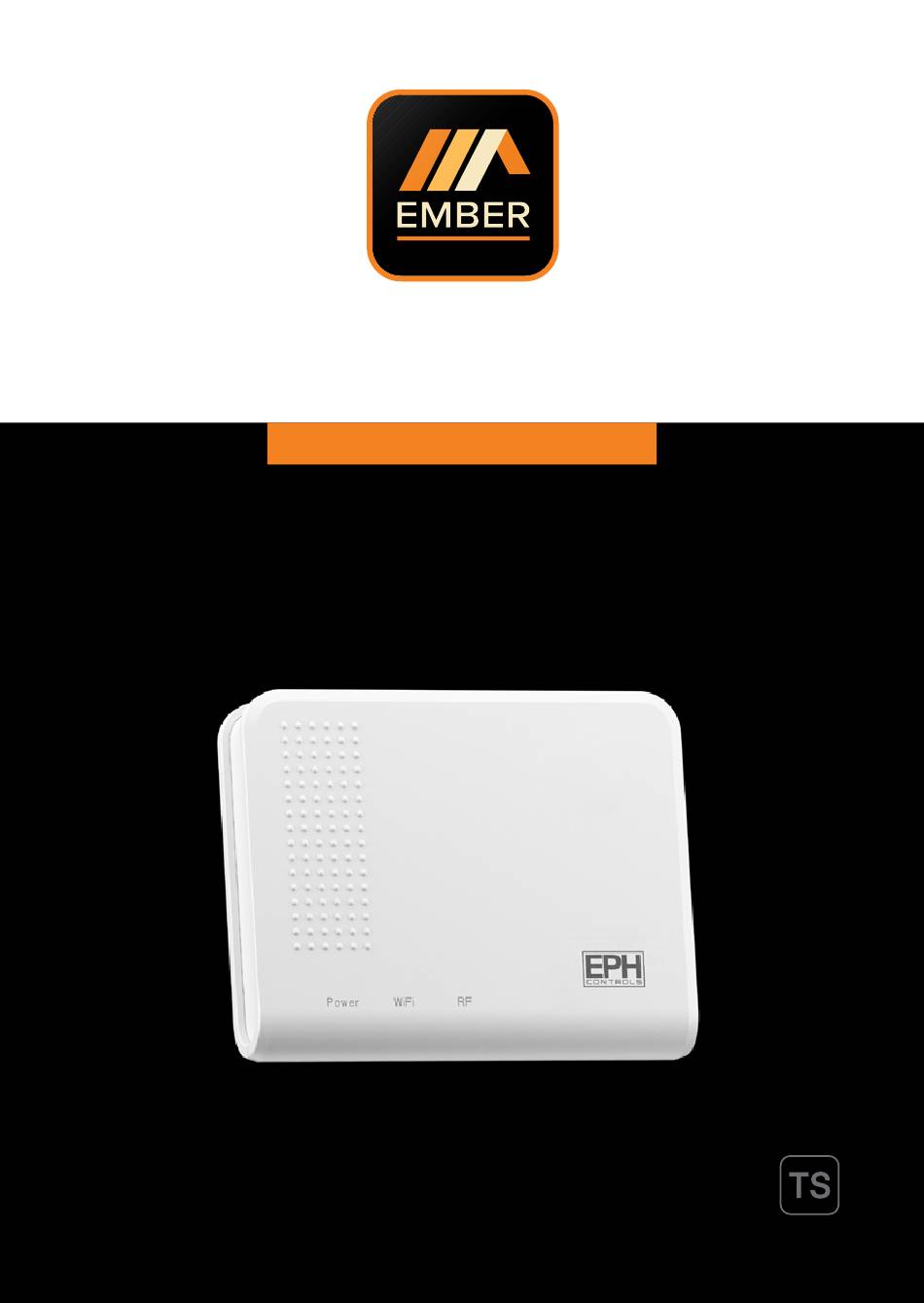

  • Page 1 GW03 GATEWAY INSTRUCTIONS...
  • Page 2 Welcome Thank you for choosing EMBER Smart Heating by EPH Controls. We hope you enjoy using it as much as we did developing it! Controlling your heating anywhere, anytime is only a few simple steps away. In this booklet, we will provide a step by step guide to setting up the EMBER Smart Heating Control app and its associated hardware.
  • Page 3 Page 12 Pairing your GW03 gateway to your wireless internet Page 14 Pairing your GW03 gateway to your 2.4GHz WiFi Page 16 Pairing your GW03 gateway to your 5GHz WiFi (Android) Page 18 Pairing your GW03 gateway to your 5GHz WiFi (iOS)

  • Page 4: Getting Started

    Alternatively you can contact your internet provider. Useful Information: On the Initial Setup screen, click on the Visit EMBER YouTube Setting icon to access Tutorials, FAQs channel for the TS Set and Videos.
  • Page 5 LCD / LED / Button legend Power Reset Function WPS / Smartlink Supply Figure 1: The gateway Reset Function WPS / Smartlink button button button Status Red LED on Gateway has power Green LED on Gateway connected to WiFi White LED on Gateway connected to receiver Reset Buttons to be used during gateway installation...
  • Page 6 Pairing your receiver to your gateway Complete this step below to pair your receiver to your GW03 Gateway Please note: If you are installing a CP4 or CP4-HW-OT the thermostat and the receiver will have a pre-established RF connection so it is not necessary to carry out Step 2 in the RF connection process below.

  • Page 7: System Architecture

    EMBER App Cloud Example B Multi Zone System RFRP-HW-OT Thermostat RFRP-OT Thermostat RFRP-OT Thermostat RF1A-OT Branch Receiver RF1A-OT Hub Receiver RF1A-OT Branch Receiver GW03 Gateway EMBER App Cloud Note: A maximum of 6 thermostats can be used with each GW03 gateway.
  • Page 8 Downloading the EMBER Smart Heating Control App 1. Go to the Apple App Store on 2. Once the app has been installed, your iPhone or the Google Play open it. Store on your Android device 3. Select ‘Create an account’ to Sign and download the EMBER Smart up with your email address.
  • Page 9 4. Enter your First name. 9. Enter your telephone number. (optional) 5. Enter your Last name. 10. Tick the box to accept our Terms 6. Enter your Email address. & Conditions and Privacy Policy. 7. Enter your Password (Minimum 6 11.
  • Page 10 Downloading the EMBER Smart Heating Control App (Continued) 12. A confirmation email will arrive in 14. You will be directed to the EMBER your inbox from EMBER. App. Select ‘Open’ in EMBER. If you are not automatically directed This can take up to 2 minutes.
  • Page 11 15. When the App opens, enter your 17. Choose ‘Allow’ so EMBER App can email address and password. send you notifications. 16. Press ‘Sign in’.
  • Page 12 Pairing your gateway to your wireless internet 1. Press ‘WiFi Setup’ and you will 2. If you are an installer select the be directed to the WiFi Setup ‘Installer’ option. If you are the screen. home owner select the ‘Home owner’...
  • Page 13 ‘TS’ Option 1: 2.4GHz WiFi with Android (Thermostat System) option. or IOS device, please GW03 will not operate with the proceed to page 14. ‘PS’ (Programmer System). Option 2: 5GHz WiFi with Android device, please proceed to page 16.
  • Page 14 Immediately press ‘Continue’. permission on devices running IOS 13 / When successful the lights on the Android 9 or above. This will allow EMBER gateway will be solid green and to automatically populate the WiFi (SSID) you will progress to the Gateway information during Setup.Without giving...
  • Page 15 5GHz 6. Select 2.4GHz. When the gateway is successfully connected the light will be solid green and the EMBER App will bring you to the Gateway Code screen. Synchronising can take up to 3 minutes. 7. If pairing is unsuccessful, please repeat steps 3-6.
  • Page 16 It is recommended to allow location Immediately press ‘Continue’. permission on devices running Android When successful the lights on the 9 or above. This will allow EMBER to gateway will be solid green and automatically populate the WiFi (SSID) you will progress to the Gateway information during Setup.
  • Page 17 5GHz 6. Select 5GHz. A pop up diaglogue box will appear to connect you to a temporary WiFi network. Connect to device EMBER app wants to use a temporary Wi-Fi network to connect to your device EPH-TS_11x2222x333x Cancel Connect 7. Press ‘Connect’.
  • Page 18 5GHz Wireless Internet (iOS) Note: It is recommended to allow location permission on devices running IOS 13 or above. This will allow EMBER to automatically populate the WiFi (SSID) information during Setup.Without giving this permission, you will have to enter your WiFi (SSID) details manually.
  • Page 19 WiFi settings page. An EPH-TS_Hotspot will appear. Tap to select this network. A dialogue box will appear with a message saying Click to return to EMBER App. EMBER EMBER Click to return to APP, Click Continue Button...

  • Page 20: Home Setup

    Home Setup Home Setup appears on the Screen. 4. Enter the postcode or your address to set the location of your 1. Enter the Home name. home. 2. Enter the Zone names. (It is not 5. Press ‘Save’. possible to rename a Hot Water zone.) 3.
  • Page 21 8. A summary confirming the appear. changes that you have made is displayed. 7. To allow additional users access to the EMBER home, enter their 9. Press ‘Tutorial’ to view the name and email address here. tutorials. Press Invite. 10. Press ‘Skip’ to complete Home...
  • Page 22 Home screen to access zone If you have multiple zones, you control. will see a zone list with the relevant number of zones. Note: You can access the tutorials from the setting menu and burger menu in the EMBER App.
  • Page 23 Zone control diagram Home name Location & Weather Current zone name Target temperature Temperature Temperature adjustment adjustment Heating on indicated with orange glow Current temperature Tap here for schedule Current mode Press and hold for quick boost Heating on indicated with orange glow Zone Index Operating mode...
  • Page 24 O cial Site EPH Controls UK EPH Controls IE T 01933 322 072 T 021 471 8440 technical@ephcontrols.co.uk technical@ephcontrols.com www.ephcontrols.co.uk www.ephcontrols.com...
