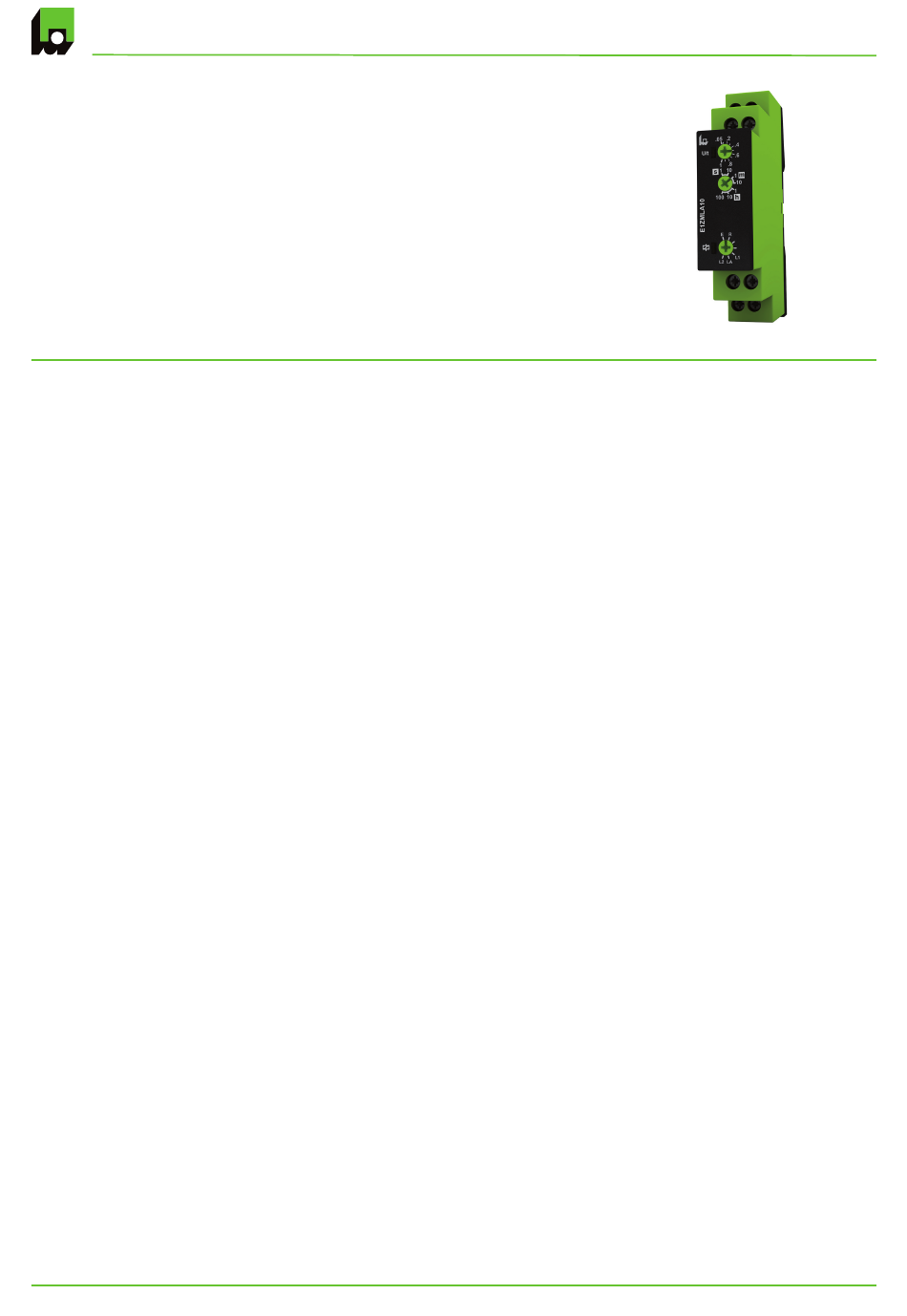

TELE ENYA Series Manual

Load Alternator + Timer
ENYA series
5 functions

7 time ranges

Wide input voltage range
1 change over contact
Width 17.5 mm (0.69 in)
Installation design
Technical data
1. Functions
The funktion can be selected at anytime if connected to the supply
voltage.
E ON delay
R OFF delay
L1 Manual OFF
LA Load Alternator (Pump Changer)
L2 Manual ON
2. Time ranges
Time range Adjustment range
1 s 50 ms
10 s 500 ms
1 min 3 s
10 min 30 s
1 h 3 min
10 h 30 min
100 h 5 h

3. Indicators

Green LED U/t ON: indication of supply voltage
Green LED U/t flashes: indication of time period
Yellow LED R ON/OFF: indication of relay output

4. Mechanical design

Self-extinguishing plastic housing, rated IP40.
Mounted on DIN-rail TS 35 according to EN 60715
Mounting position: any
Shockproof terminal connection according to VBG 4 (PZ1 required).
Terminals are rated IP20
Tightening torque: max. 1 Nm (0.74 ft lbs)
Terminal capacity:
1 x 0.5 to 2.5 mm² (1 x 20 to 14 AWG)
with/without multicore cable end
1 x 4 mm² (1 x 12 AWG)
without multicore cable end
2 x 0.5 to 1.5 mm² (2 x 20 to 16 AWG)
with/without multicore cable end
2 x 2.5 mm² (2 x 14 AWG)
flexible without multicore cable end

5. Input circuit

Supply voltage: 24 to 240V a.c./d.c.
Terminals: A1(+)-A2
Tolerance: 24V -15% to 240V +10%
Rated consumption: 4VA (1.5W)
Rated frequency: a.c. 48 to 63 Hz
Duty cycle: 100 %
Reset time: 100 ms
Residual ripple for d.c.: 10 %
Drop-out voltage: >30 % of minimum rated supply voltage
Overvoltage category: III (in accordance with IEC 60664-1)
Rated surge voltage: 4kV
1 s
10 s
1 min
10 min
1 h
10 h
100 h
www.tele-online.com
E1ZMLA10 24-240V AC/DC

6. Output circuit

1 isolated change over contact (1 CO)
Contact material: AgNi
Rated voltage: 250V a.c.
Switching capacity: 2000VA (8A / 250V a.c.)
Fusing: 8A fast acting
Mechanical life: 20 x 10
Electrical life: 1 x 10
at 1000VA resistive load
Switching frequency: max. 6/min at 1000VA resistive load
(in accordance with IEC 60947-5-1)
Overvoltage category: III (in accordance with IEC 60664-1)
Rated surge voltage: 4kV

7. Control input

Input not potential free: terminals A1-B1
Loadable: yes
Max. line length: 10 m
Trigger level (sensitivity): automatic adaption to supply voltage
Min. control pulse length: d.c. 50 ms / a.c. 100 ms

8. General data

Degree of protection: Basic insulation
Insulation test voltage:
Supply circuit - Output circuit: 1680V
Interference immunity: Class A
Prospective current value: 1000A / 8A

8. Accuracy

Base accuracy: ±1 % of maximum scale value
Adjustment accuracy: <5 % of maximum scale value
Repetition accuracy: <0.5 % or ±5 ms
Voltage influence: -
Temperature influence: ≤0.01 % / °C

9. Ambient conditions

Ambient temperature: -25 to +55 °C (-13 to +131 °F)
Storage temperature: -25 to +70 °C (-13 to +158 °F)
Transport temperature: -25 to +70 °C (-13 to +158 °F)
Relative humidity: 15 % to 85 %
(in accordance with IEC 60721-3-3
class 3K3)
Pollution degree: 2 (in accordance with IEC 60664-1)

10. Weight

Single packing: 80 g (2.82 oz)
6 operations
5
operations
