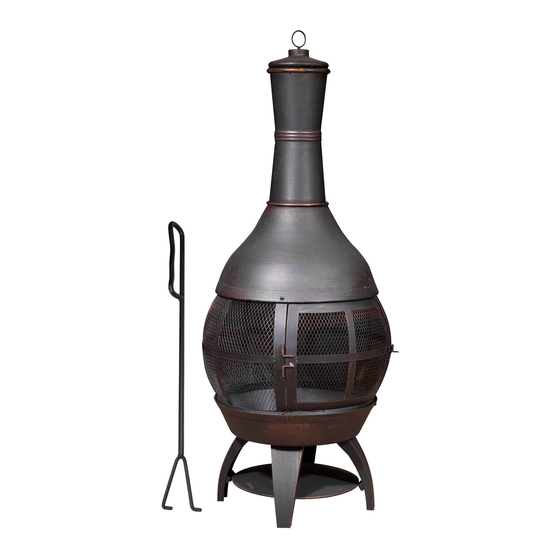

Dellonda Deluxe 360° Chiminea/Fire Pit/
Outdoor Heater - Bronze Antique Finish
Model No. DG112
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
www.dellonda.co.uk
DG112 Issue:1 24/03/21
Advertisement
Table of Contents
Related Manuals for dellonda Deluxe DG112
Summary of Contents for dellonda Deluxe DG112
- Page 1 Outdoor Heater - Bronze Antique Finish Model No. DG112 Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance.
- Page 2 • Keep children and pets away from the area. Contents Part Description Quantity Handle Chiminea Cover Chiminea Flue Chiminea Top Mesh Screen Chiminea Bottom Stand Tray Poker Fire Wood Grate M6 X 12mm Bolt M6 x 14mm Bolt M6 x 25mm Bolt M6 Nut www.dellonda.co.uk...
- Page 3 (BB) and M6 nuts (DD), hand tighten at this stage (Tighten fully after step 3) Step 3: Attach the tray (G) using M6x12mm bolts (AA) and tighten. Step 4: Attach the mesh screen (E) to chiminea base with M6x25mm bolts (CC) and M6 nuts (DD) and tighten. www.dellonda.co.uk...
- Page 4 Step 6: Attach chiminea top (D) to the mesh screen (E) with M6x25mm bolts (CC) and M6 Nuts (DD). Tighten each bolt with a spanner and crosshead screwdriver. Step 7: Place the poker (I) near the Chiminea and the cover (B) on the top of the funnel (C). www.dellonda.co.uk...
- Page 5 It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim. Dellonda Limited Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR 01284 757575 support@dellonda.co.uk...
