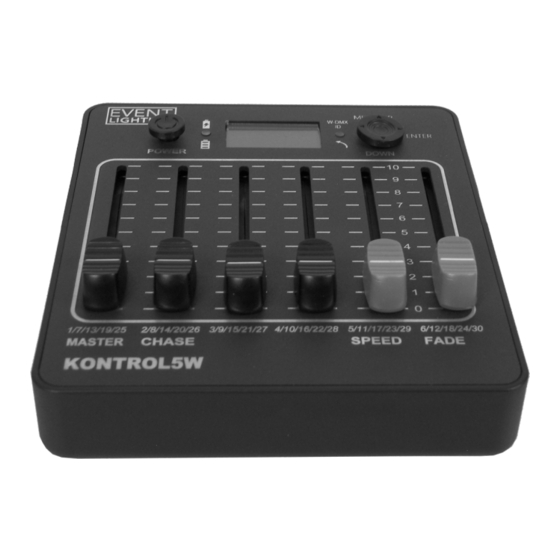

KONTROL5W
Battery Powered WDMX Controller
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting KONTROL5W
Summary of Contents for Event Lighting KONTROL5W
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au Safety Instructions Warning • Do not open this device, there are no user serviceable parts inside. Risk of electric shock. • Do not operate this device outdoors where excessive dust, heat, water, or humidity may affect it. • Do not operate this device if the housing or cables appear damaged. •...
- Page 3 www.event-lighting.com.au Overview 1. Power switch 2. Charging indicator a. Red – charging. b. White – fully charged. 3. Display 4. Wireless DMX indicator light 5. Menu Control buttons a. [Up] – Enter control menu, jump to the top. b. [Down] – Enter control menu, skip to next item c.
- Page 4 www.event-lighting.com.au Display Menu Menu Main Function Description Display Effects ID (0-7) Press [Up] or [Down] to select chase ID. Play Chase Play selected chase. Edit Chase 1. "---" denotes total number of steps. 2. "|" denotes the channel value pages 3.
- Page 5 www.event-lighting.com.au Power Up Preset ID (0-8) Select ID when starting up Program controller, NR8 is Manual Display Screen DMX630/ON/OFF Screen mode when controller Mode is not being used Screen 3-255 Time to wait before turning off Time screen (seconds) Password Password (Off/On) Toggle password Set Password...
- Page 6 Time on/off KONTROL5W can activate or deactivate a chase at a selected time. When using this function, leave the controller on. 1. Press [Enter] 2. Select Settings and confirm with [Enter] 3. Select ID and confirm with [Enter] 4. Select the chase ID to play with [Up] or [Down] and confirm with [Enter] 5.
