KONTROL48
48 Channel DMX Controller
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 1 (11 Jan 2022)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the lite KONTROL48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting lite KONTROL48

Summary of Contents for Event Lighting lite KONTROL48

  • Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    www.event-lighting.com.au Safety Instructions Warning • Do not open this device, there are no user-serviceable parts inside. Risk of electric shock. • Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it. •...

  • Page 3: Product Overview

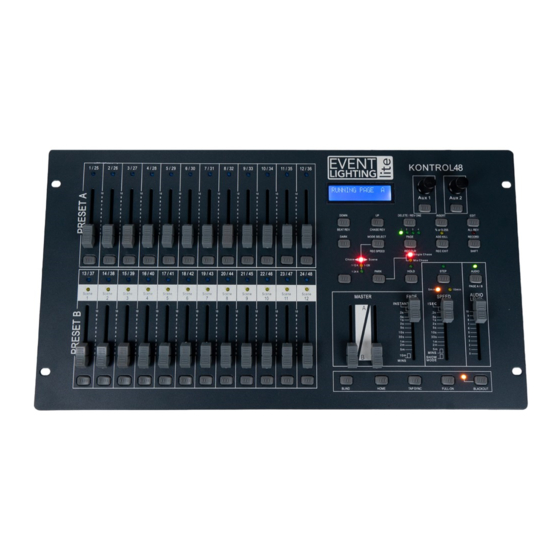

    www.event-lighting.com.au Product Overview Item Description Channel indicators Displays currently outputting channels. Channel faders Controls channel output. Channel Flash button Sets channel output to 100% for a short time. Scene playback indicators Displays currently playing scenes. Down / Beat Rev Lower the selected value / Reverse the chase direction of all scenes set to tempo.
  • Page 4 www.event-lighting.com.au Master Fader B Controls total output of manual fader settings and Preset B channels. Fade Fader Set Fade time. Speed Fader Set Scene playback tempo. Audio Level Fader Adjust audio sensitivity. Blind Deactivate the selected channel’s output. Home Reactivates the channel deactivated by Blind (25). Tap Sync Set playback speed by tapping repeatedly.

  • Page 5: Product Operation

    www.event-lighting.com.au Product Operation Basic Operation Page Selection To switch between Page A (channels 1-24) and Page B (channels 25-48): • Press and hold Record/Shift • Press Audio/Page A/B • Release Record/Shift Master Faders There are two master faders: A and B. Their functionality depends on which operation mode KONTROL48 is set to.

  • Page 6: Record Mode

    www.event-lighting.com.au Record Mode Enable Recording Enable Record Mode to access all programming functions: 1. Press and hold Record/Shift. 2. Press the Channel Flash buttons in the following sequence: 1,5,6,8. 3. Release Record/Shift. To exit Record Mode: 1. Press and hold Record/Shift. 2.

  • Page 7: Playback Modes

    www.event-lighting.com.au 2. Press Delete/Rev One three times. Delete a Step 1. Enable Edit Mode for the scene to be edited. 2. Press Step to step through the steps of the scene until the desired step is selected. 3. Press Delete/Rev One. 4.

  • Page 8: Other Functions

    www.event-lighting.com.au Beat The Speed fader or Tap Sync button can be used to record a beat. To record a beat using the Speed fader: 1. Play back the scene to be assigned the beat. 2. Press Park until the yellow LED indicating Mix Chase is lit. 3.
  • Page 9 www.event-lighting.com.au • Functions will still work when Black Out is active. Beat Rev Press Down/Beat Rev to reverse the playback of all scenes that have a beat recorded. This will also work in the Single Chase playback mode. Chase Rev Press Up/Chase Rev to reverse the playback of all scenes that do not have a beat recorded.

  • Page 10: Auxiliary Controls

    www.event-lighting.com.au Auxiliary Controls There are three Auxiliary modes that can be used with the Auxiliary Knobs, which can act as shortcuts for the DMX channels: • Mode 1: Auxiliary knobs and flash buttons are disabled. • Mode 2: Auxiliary knobs and flash buttons have the same function as the original fader. •...

  • Page 11: Technical Specifications

    DMX: 48 channels. • Connections: 3- and 5-pin DMX out, MIDI in, MIDI out, MIDI thru, Audio in. Housing • Dimensions: 483x267x89 mm. • Weight: 4.5 kg. • Rackmount: 6 RU. Warranty Please contact your local dealer or contact Event Lighting. www.event-lighting.com.au...
