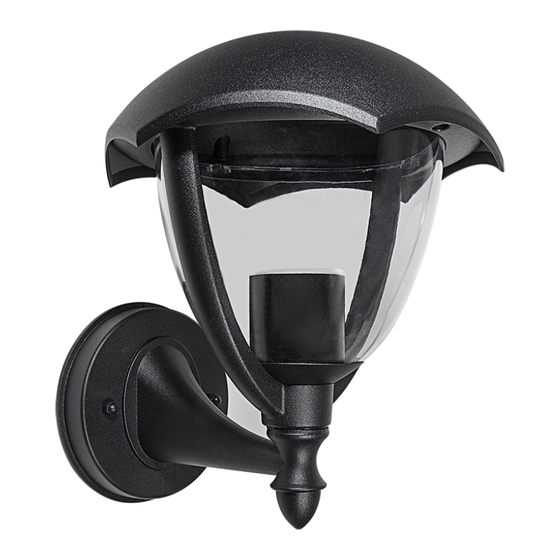

V-TAC VT-730 Installation Instructions

WALL LAMP
TECHNICAL DATA
MODEL VT-730
MAX WATTS 40W
IP RATING IP44
HOLDER E27
BODY TYPE ALUMINIUM + GLASS
AC:220-240V, 50Hz
INPUT POWER
DIMENSION 238*200mm
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They are
trained and ready to serve you at the best.
! WARNING
• Turn off the power before starting the installation,
• Proper grounding should be ensured throughout the installation.
• User should prepare the necessary accessories and spare parts (not provided).
• Installation must be performed by a certified electrician only.
• Please do not exceed the rated voltage and wattage.
This marking indicates that this
product should not be disposed
of with other household wastes.
PRODUCT OVERVIEW
Low maintenance, easy to install, low electricity, power saving, long life span.
APPLICATION
The Wall lamp can be used in gardens, outdoor residential areas, walkways, passages, entrance and similar
environment, etc.
2
WARRANTY
Caution, risk of electric shock.
NOTES
Lighting installation should not be covered. Leave some space around the xture for
•
ventilation.
Risk of re; supply conductors (power wires) connecting xture must be rated minimum 90°C.
•
If uncertain, consult electrician
INSTALLATION DIAGRAM:
*
INSTALLATION INSTRUCTION
• Switch off the power before starting the installation
• Drill the holes in the wall
• Fix the bracket onto the wall
• Connect supply leads with terminal brown (L) to brown, blue (N) to blue and greenish-yellow (
greenish-yellow
• Fix the lamp body on the plate and tighten the screws
• Open the lamp and install the bulb in the lamp
• Tighten the nuts to fix down the lamp
• Switch on the power if above steps done properly
without any mistakes
) to
