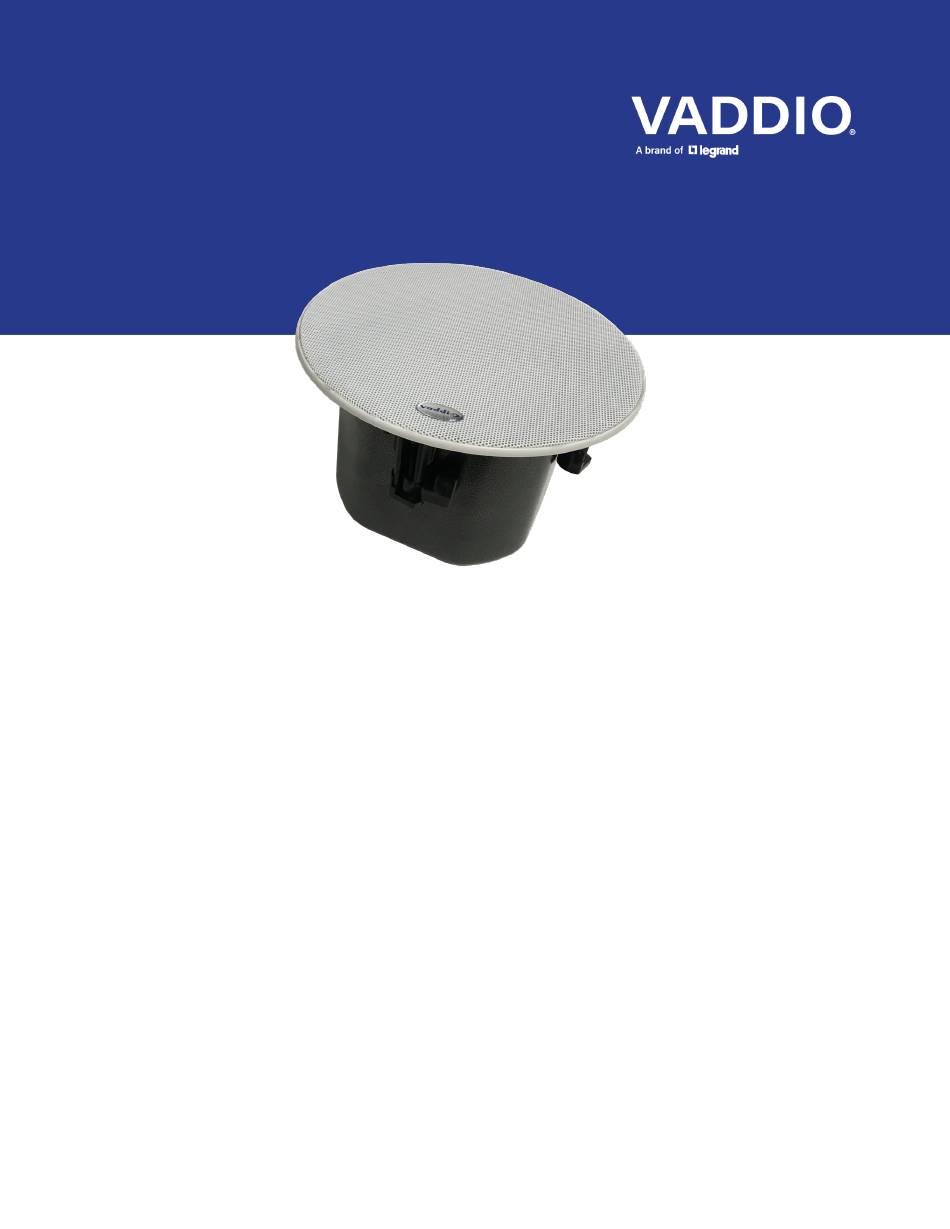

- Page 1 Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Document 411-0061-30 Rev B September 2022...
-
Page 2: Table Of Contents
Contents Overview Features Specifications What's Included A Quick Look at the Speaker Installation Don’t Void Your Warranty! Placement Tips Tools You Will Need Cabling Notes Basic Connections Preparing the Ceiling Connecting the Cable Completing the Set-Up About Dante Technology and Devices Renaming Dante Devices Pairing Audio Devices to the Host Device Pairing to Multiple EasyIP Audio Outputs... -
Page 3: Overview
EasyIP Ceiling Speaker D with magnetically attached grille Tile brace 28 in. (71 cm) stainless steel safety cable with steel carabiner clips Contact Vaddio Technical Support at 800.572.2011 or +1.763.971.4400, or email av.vaddio.techsupport@legrand.com if you did not receive all the items listed. -
Page 4: A Quick Look At The Speaker
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio A Quick Look at the Speaker Magnetically attached speaker grille (with the logo badge you know and love) Quick mounting tabs swivel into position Connector cover plate with strain relief clamp Convenient loop for securing safety wire... -
Page 5: Installation
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Installation This section covers: Tools you will need Safety information Tips for a successful audio installation Cabling notes Physical installation Connection diagrams Don’t Void Your Warranty! Caution This product is for indoor use. -
Page 6: Basic Connections
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio When making cables for this product, use Cat-5e or better cable. We recommend using high-quality connectors and a high-quality crimping tool. We recommend shielded cabling if the cables will be coiled, run tightly with other cables, or routed near sources of electromagnetic interference such as power lines or fluorescent light fixtures. -
Page 7: Preparing The Ceiling
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Preparing the Ceiling Warning Follow standard safety practices when using ladders or lifts. Failure to do so can result in injury or death. We like you, we don't want you to be injured or killed, and we hope you understand the gravity of the situation. -
Page 8: Completing The Set-Up
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Completing the Set-Up EasyIP Ceiling Speaker D speakers must be paired to a compatible host device such as an EasyIP Mixer or AV Bridge 2x1. For pairing and adjustments, you will need: ®... -
Page 9: Renaming Dante Devices
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Renaming Dante Devices ANTE ONTROLLER APPLICATION Notes The Dante chip in each EasyIP device has its own IP address and device name. The host device's name and IP address shown in the Dante Controller application may differ from the hostname and IP address in its web interface. -
Page 10: Pairing Audio Devices To The Host Device
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Pairing Audio Devices to the Host Device Follow these steps to pair microphones and speakers to the host device. If you need to pair more than two microphones to the host device, see Using More than Two EasyIP Microphones with a Vaddio Host Device. -
Page 11: Pairing To Multiple Easyip Audio Outputs
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Pairing to Multiple EasyIP Audio Outputs The EasyIP Ceiling Speaker D and EasyIP AMP D are Dante receivers: They do not send audio back to the host device. In our example, we use the Dante Controller application to set up a room to use an AV Bridge 2x1 as the host device for four microphones, two speakers, and an amp that drives one or more analog speakers. -
Page 12: Creating A Multicast Flow
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Creating a Multicast Flow ANTE ONTROLLER APPLICATION To allow one audio channel from the host device to go to the speaker and also serve as the AEC reference signal that goes to the four microphones in our example set-up, define a multicast flow containing only that channel. -
Page 13: Routing A Multicast Flow To Speakers Or Amps
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Routing a Multicast Flow to Speakers or Amps ANTE ONTROLLER APPLICATION 1. In the Dante Controller application, go to the Network view and select the Routing tab. 2. -
Page 14: Troubleshooting
Complete Manual for the EasyIP Ceiling Speaker D Recessed Speaker with Dante Networked Audio Troubleshooting What is it doing? Possible causes Check and correct Nothing. Connected devices The speaker is not connected. Verify that the cable is connected at do not recognize the speaker. both ends. - Page 15 ® ® Vaddio is a registered trademark of Legrand AV Inc. Audinate , the Audinate logo and Dante registered trademarks of Audinate Pty Ltd. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations.
