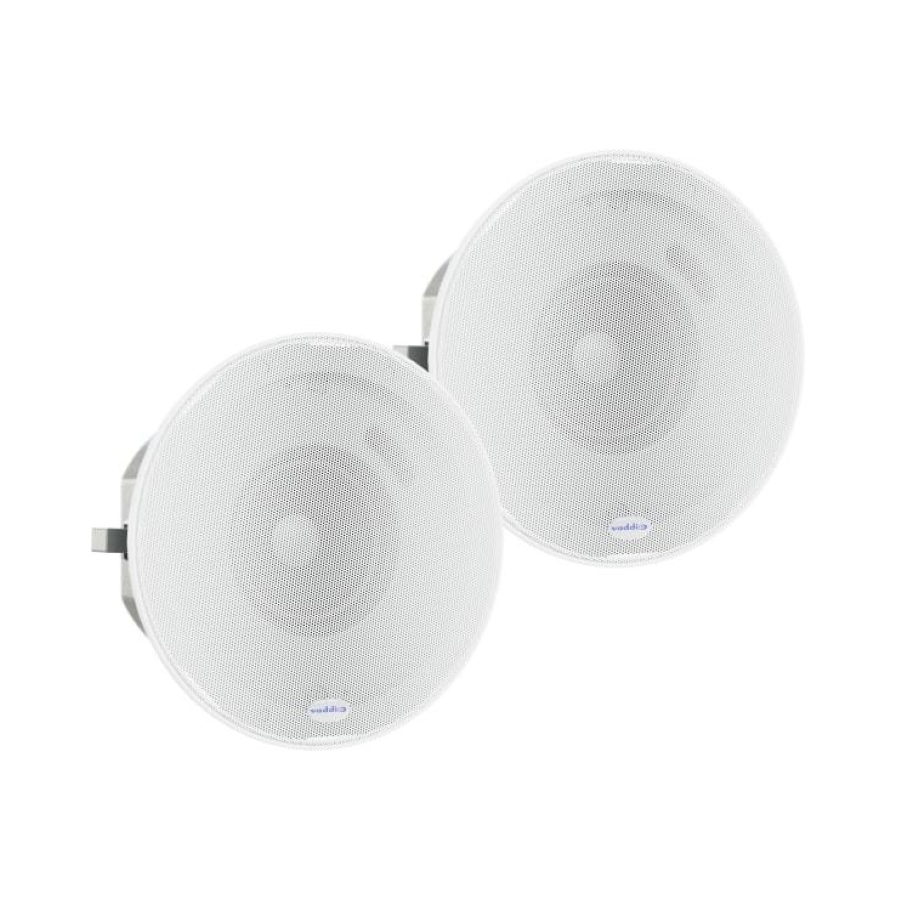

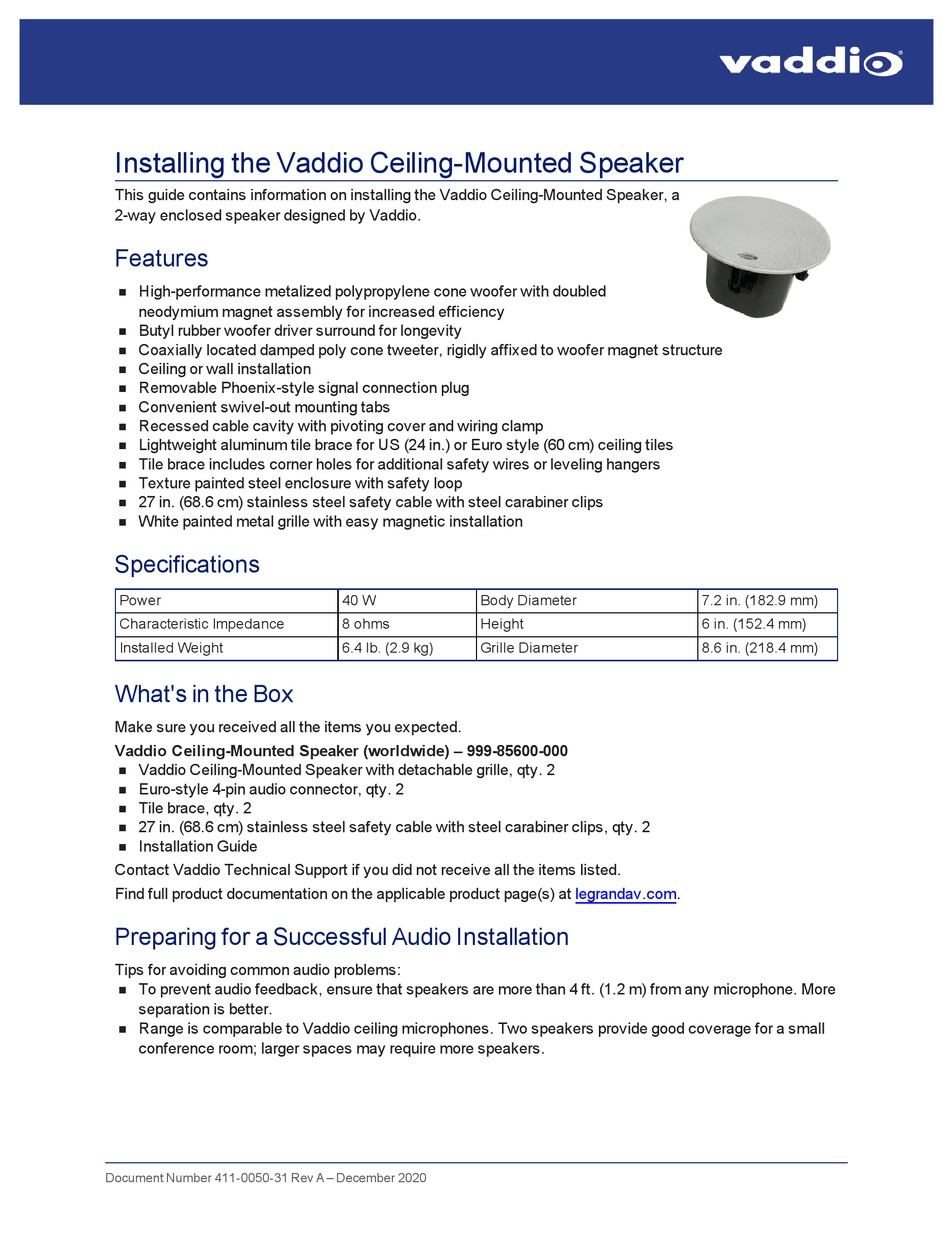

Installing the Vaddio Ceiling-Mounted Speaker
This guide contains information on installing the Vaddio Ceiling-Mounted Speaker, a
2-way enclosed speaker designed by Vaddio.
Features
High-performance metalized polypropylene cone woofer with doubled
n
neodymium magnet assembly for increased efficiency
Butyl rubber woofer driver surround for longevity
n
Coaxially located damped poly cone tweeter, rigidly affixed to woofer magnet structure
n
Ceiling or wall installation
n
Removable Phoenix-style signal connection plug
n
Convenient swivel-out mounting tabs
n
Recessed cable cavity with pivoting cover and wiring clamp
n
Lightweight aluminum tile brace for US (24 in.) or Euro style (60 cm) ceiling tiles
n
Tile brace includes corner holes for additional safety wires or leveling hangers
n
Texture painted steel enclosure with safety loop
n
27 in. (68.6 cm) stainless steel safety cable with steel carabiner clips
n
White painted metal grille with easy magnetic installation
n
Specifications
Power
Characteristic Impedance
Installed Weight
What's in the Box
Make sure you received all the items you expected.
Vaddio Ceiling-Mounted Speaker (worldwide) – 999-85600-000
Vaddio Ceiling-Mounted Speaker with detachable grille, qty. 2
n
Euro-style 4-pin audio connector, qty. 2
n
Tile brace, qty. 2
n
27 in. (68.6 cm) stainless steel safety cable with steel carabiner clips, qty. 2
n
Installation Guide
n
Contact Vaddio Technical Support if you did not receive all the items listed.
Find full product documentation on the applicable product page(s) at legrandav.com.
Preparing for a Successful Audio Installation
Tips for avoiding common audio problems:
To prevent audio feedback, ensure that speakers are more than 4 ft. (1.2 m) from any microphone. More
n
separation is better.
Range is comparable to Vaddio ceiling microphones. Two speakers provide good coverage for a small
n
conference room; larger spaces may require more speakers.
Document Number 411-0050-31 Rev A – December 2020
40 W
Body Diameter
8 ohms
Height
6.4 lb. (2.9 kg)
Grille Diameter
7.2 in. (182.9 mm)
6 in. (152.4 mm)
8.6 in. (218.4 mm)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Vaddio 999-85600-000
Summary of Contents for LEGRAND Vaddio 999-85600-000
- Page 1 Installing the Vaddio Ceiling-Mounted Speaker This guide contains information on installing the Vaddio Ceiling-Mounted Speaker, a 2-way enclosed speaker designed by Vaddio. Features High-performance metalized polypropylene cone woofer with doubled neodymium magnet assembly for increased efficiency Butyl rubber woofer driver surround for longevity Coaxially located damped poly cone tweeter, rigidly affixed to woofer magnet structure Ceiling or wall installation Removable Phoenix-style signal connection plug...
- Page 2 Installing Vaddio Ceiling-Mounted Speakers Tools You Will Need To install the speaker, you will need: Hole saw for the appropriate type of ceiling #2 Phillips screwdriver Wire cutters Tape measure Ladder or lift Appropriate personal protective equipment We recommend Chief’s “Speed Connect Hardware Kit,” part number CMSHDW, to suspend the included tile brace with safety wires.
- Page 3 Installing Vaddio Ceiling-Mounted Speakers Preparing the Ceiling Warning Follow standard safety practices when using ladders or lifts. Failure to do so can result in injury or death. We like you, we don't want you to be injured or killed, and we hope you understand the gravity of the situation.
- Page 4 ©2020 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations.
