ACL805SUW-RDMF
Reader Installation Sheet
EN

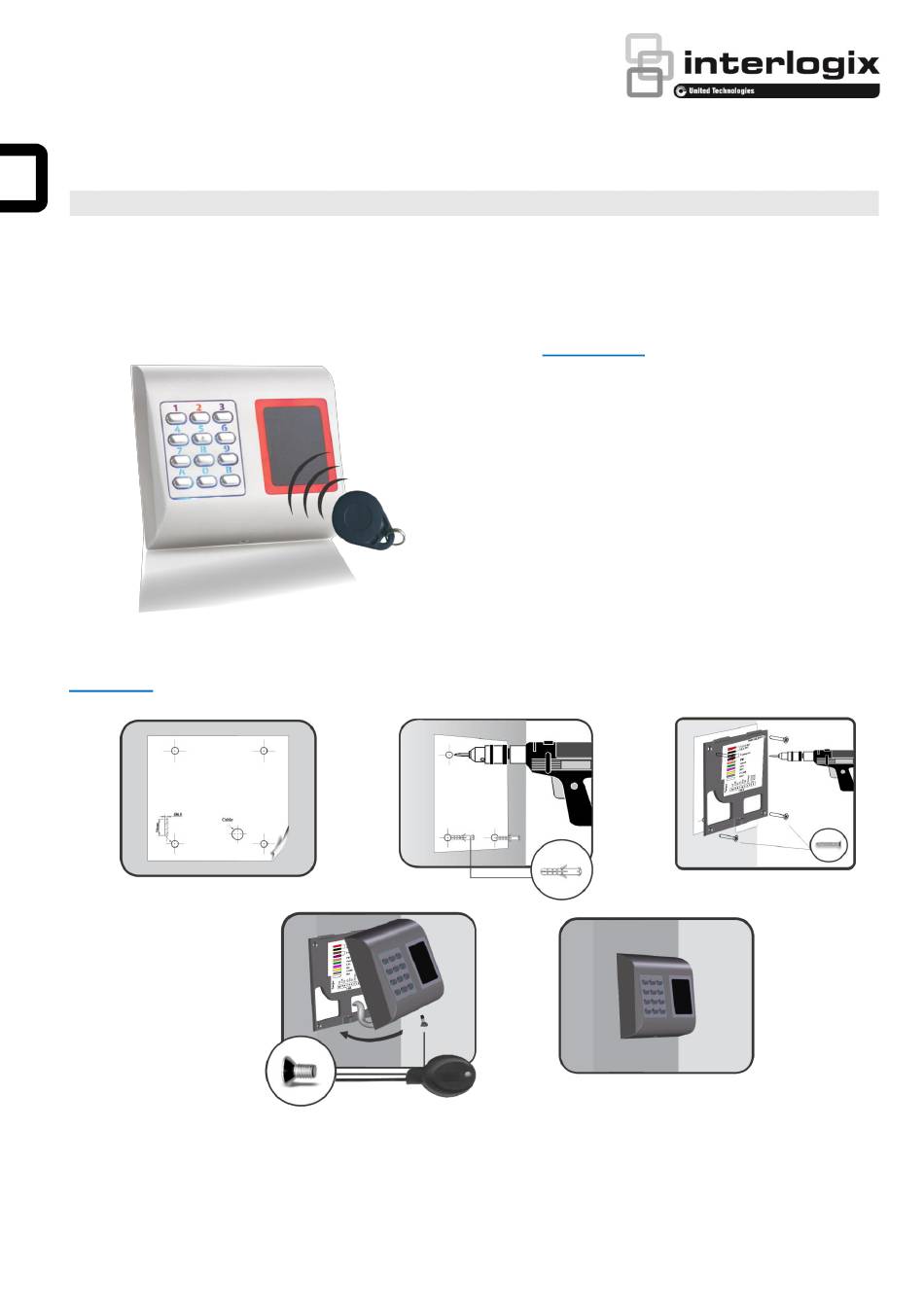

Figure 1: Angled front view
Mounting
© 2017 UTC Fire & Security. All rights reserved.
Surface Mount Keypad with Mifare reader
Figure 2: Mounting instructions
Description
The ACL805SUW-RDMF is a Multiprotocol
digital keypad and Mifare reader for access
control applications with backlit keys and
selectable output protocol. These surface
mount readers includes a buzzer and a tri-
color LED for state indication (access
granted, access denied or idle).
ACL805SUW-RDMF is capable of reading
Mifare cards/fobs (13.56 MHz).
1 / 6
2017-10-13
Advertisement
Table of Contents
Related Manuals for United Technologies interlogix ACL805SUW-RDMF
Summary of Contents for United Technologies interlogix ACL805SUW-RDMF
- Page 1 ACL805SUW-RDMF Reader Installation Sheet Surface Mount Keypad with Mifare reader Description The ACL805SUW-RDMF is a Multiprotocol digital keypad and Mifare reader for access control applications with backlit keys and selectable output protocol. These surface mount readers includes a buzzer and a tri- color LED for state indication (access granted, access denied or idle).
- Page 2 Wiring gray tamp tamp Tamper tamp blue tamp Tamper yellow LED Green minus LED Red minus orange Ground black +12 V 9 to 14 VDC +12 V Data 0 Data 1 green white Figure 3: Wiring instructions Specifications Operating voltage 9 to 14 VDC Current consumption 210 mA at 12 VDC...
- Page 3 even parity + 56 data bits + odd parity Pulse width: 100 µs Wiegand 58 description Pause: 1 ms P1 = even parity calculated over the bits 2 to 29 P2 = odd parity calculated over the bits 30 to 57 8 data bits (sent on each key press) Wiegand 8 bit per key description Pulse width: 100 µs...
- Page 4 Settings in TruPortal Software Go to System Administration/Card Formats. Create custom Wiegand Format for Wiegand 56 bit and Wiegand 32 bits. The reader will send the Wiegand format according to the card format. If the card presented has 56 bit number, the reader will send Wiegand 56 bit.
- Page 5 Keypad programming flowchart Entering Menu is always done with B(3 s) + 000000 if the Master Code is not changed. Submenu 1 - Change Master Code. The Master Code must be 6 digits. After enrolling new Master Code the ACL875W automatically exits the Menu and the new master code must be typed to enter the menu. Submenu 2 - Select Type of Wiegand.
- Page 6 Submenu 9 - Turns ON/OFF the backlight in idle mode, buzzer on key press, parity bit. Reset Master Code 1. Disconnect Power 2. Press and hold “A” and reconnect Power. 3. Hold the “A” Key for at least 3 seconds. Default Master Code: 000000 Manufacturer UTC Fire &...
