- Page 1 TB-05 Specification V1.0.0 TB-05 Specification Version V1.0.0 Copyright ©2022 Page 1 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved...
- Page 2 TB-05 Specification V1.0.0 Document resume Version Date Develop/revise content Edition Approve V1.0.0 2022.11.8 First Edition Jingran Xiao Ning Guan Page 2 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved...
-
Page 3: Table Of Contents
8. Storage conditions ....................... 19 9. Reflow Welding Curve ......................19 10. Product packaging information ..................20 11. Contact us ...........................20 Disclaimer and Copyright Notice ....................21 Notice ............................21 Page 3 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 4: Product Overview

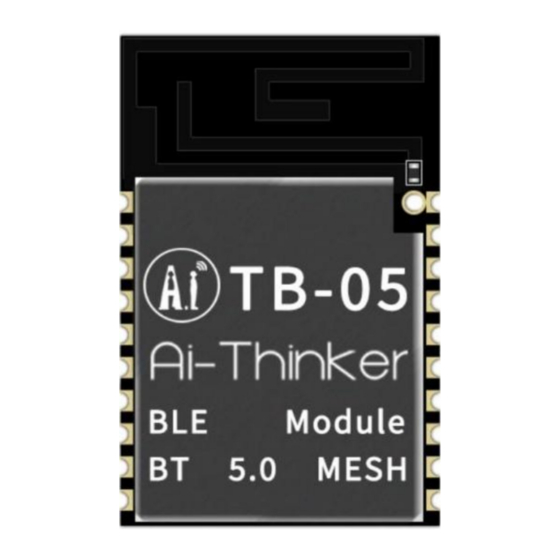

TB-05 Specification V1.0.0 1. Product overview TB-05 is a BLE5.0 low-power consumption Tmall Genie Mesh Bluetooth module based on TLSR8250 chip. The Bluetooth module supports the direct control of Tmall Genie and has the function of Bluetooth mesh networking. The devices communicate through peer-to-peer star network and Bluetooth broadcast, which can ensure timely response in case of multiple devices. -
Page 5: Characteristics
Factory default cold color warm color duty cycle 50% PWM output frequency 1KHz With night light function Color temperature switching function with wall switch Page 5 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 6: Main Parameters
Transmission distance Outdoor open sight distance: ≥ 100 m 2.1. Static electricity requirements TB-05 is an electrostatic sensitive equipment and requires special precautions during handling Figure 2 ESD anti-static diagram Page 6 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 7: Electrical Characteristics
Min. Typical value Max. Unit Supply voltage I/O supply voltage VCCIO -0.3 0.3*VDDIO 0.7*VDDIO VDDIO I /O 0.1*VDDIO 0.9*VDDIO VDDIO Operating ℃ temperature Storage +125 ℃ temperature Page 7 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 8: Ble Rf Performance
100%. Table 4 Power consumption table Mode Min. Average Max. Unit Tx power consumption (10.5dBm) 21.56 Rx consumption Standby power consumption Superficial sleep μA Deep sleep μA Page 8 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 9: Appearance Dimensions
TB-05 Specification V1.0.0 3. Appearance dimensions Back Front Figure 3 (for reference only) Figure 4 dimension diagram (unit: mm) Page 9 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 10: Pin Definition
TB-05 Specification V1.0.0 4. Pin definition TB-05 module has a total of 20 interfaces. As shown in below pin diagram, the pin function definition table is the interface definition. Back Front Figure 5 Pin Top View Page 10 of 21... - Page 11 I2C serial data/PWM4 reverse output/UART_RTS / GPIO PC0 I2C serial clock/PWM1 reverse output/pwm0 output/GPIO PC1 PWM2 output/UART_CTS/PWM0 reverse output/SAR ADC input NOT CONNECTED /GPIO PC4 Reset pin Antenna interface Page 11 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved...
-
Page 12: Schematic
TB-05 Specification V1.0.0 5. Schematic Figure 6 Schematic diagram Page 12 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 13: Antenna Parameters
TB-05 Specification V1.0.0 6. Antenna parameters 6.1. Schematic of Antenna Test Prototype Figure 7 schematic diagram of antenna test prototype Page 13 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 14: Antenna S Parameter
2480 2490 2500 Gain(dBi) 0.11 0.19 0.53 0.66 0.90 1.31 1.52 1.60 1.64 1.51 1.28 Efficiency(%) 27.64 28.55 31.13 32.06 33.47 36.26 36.85 37.13 36.93 36.74 35.69 Page 14 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 15: Antenna Field Type Diagram
TB-05 Specification V1.0.0 6.4. Antenna field type diagram Figure 9 antenna field type diagram Page 15 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 16: Design Guidance
TB-05 Specification V1.0.0 7. Design guidance 7.1. Application guidance circuit Figure 10 Application Guidance Circuit 7.2. Recommended PCB package size Figure 111 Recommended PCB Package Size (Unit: mm) Page 16 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 17: Antenna Layout Requirements
The DC-DC power supply circuit suggests to reserve the position of the dynamic response capacitor, which can optimize the output ripple when the load changes greatly It is recommended to add ESD devices to the 3.3V power interface Page 17 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 18: Gpio
If the IO port is directly connected to the peripheral interface or terminals such as pins, it is recommended to reserve ESD devices at the IO port wiring close to the terminals Figure 14 Level convert Circuit Page 18 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 19: Storage Conditions
After the vacuum bag is unpacked, it must be used within 168 hours at 25±5℃/60% RH, otherwise it needs to be baked before it can be put on line again. 9. Reflow Welding Curve Figure 15 reflow welding diagram Page 19 of 21 Copyright©2022 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved... -
Page 20: Product Packaging Information
TB-05 Specification V1.0.0 10. Product packaging information TB-05 module is packaged in a tape, 1350pcs/reel. As shown in the below image Figure 16 Package and packing diagram 11. Contact us Ai-Thinker offical website Office forum Develop DOCS LinkedIn Tmall shop... -
Page 21: Disclaimer And Copyright Notice
This document does not hereby grant any license for the use of intellectual property, whether express or implied, by estoppel or otherwise. The test data obtained in this paper are all obtained by the laboratory test of Ai-Thinker, and the actual results may be slightly different.
