Antenna and External Equipment Connection

Y1 Pb1
Note : Selecting a Source
Press SOURCE key on remote or on front panel keypad.
A source OSD will appear to select a source press OK/Right key on the remote
or '+' key from front panel. Press SOURCE key repeatedly to
change and select source. Up/Down key on the remote or
can be used to change sources.
Press TV key on the remote to enter into TV source from any other source.
Great user manuals database on
ANT IN
ANT IN
Pr1 L1 YPbPr1 R1 Av1
AV1
COMPONENT (YCbCr/YPbPr) DVD INPUT

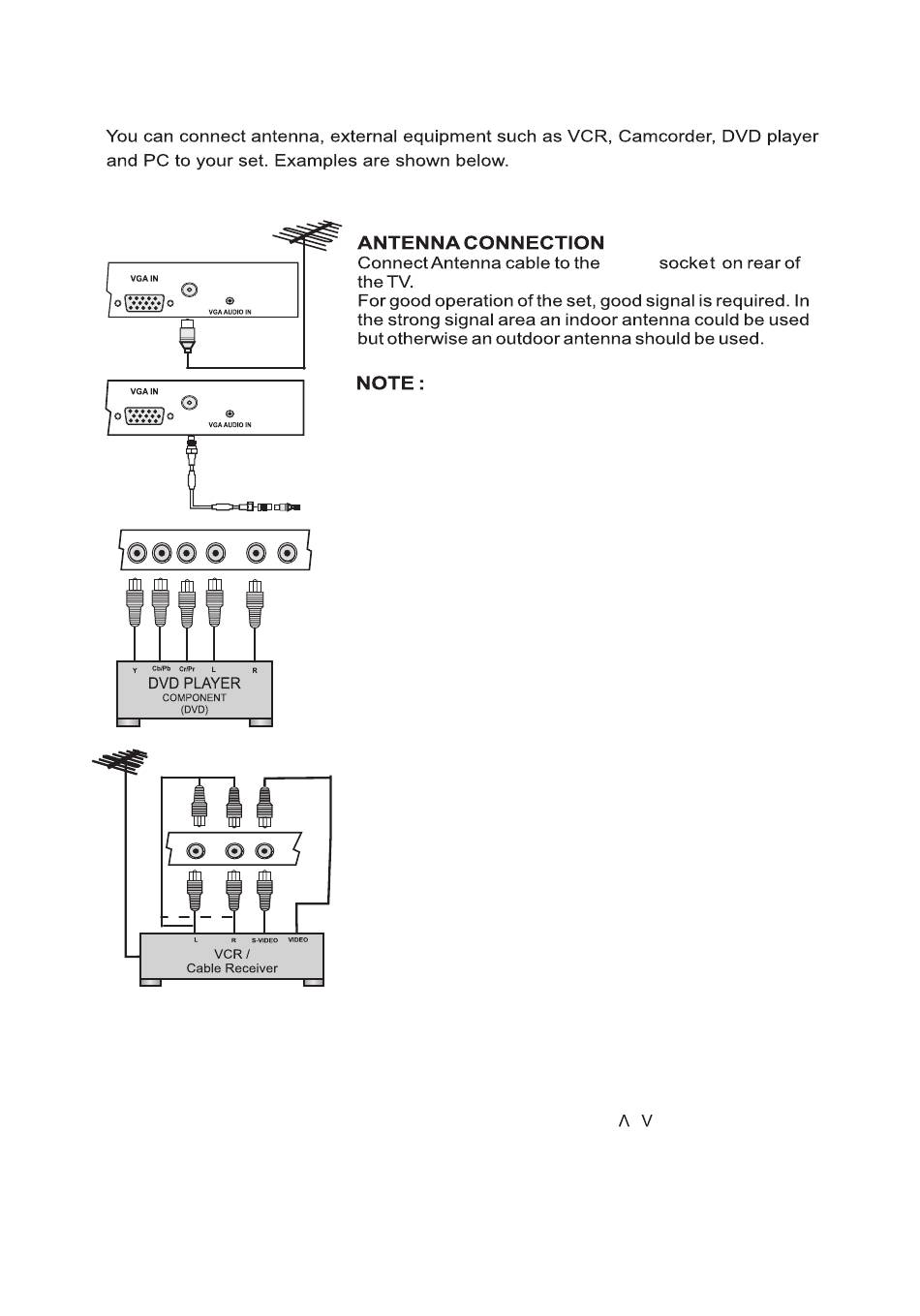

1. Connect the component outputs (YCbCr / YPbPr) of
DVD player to the component (YPbPr1 / YPbPr2) input of
the TV.
2. Connect audio outputs (L,R) of a DVD player to the
audio input (YPbPr1 / YPbPr2) respectively.
3. Press the PLAY button on the DVD player.
VIDEO INPUT
1. Connect the component outputs VIDEO out
of VCR/Cable receiver to AV1, AV2.
YPbPr1
L R Av1
AV1
2. Connect audio outputs (L, R) of a DVD player to the
audio input AV1, AV2 respectively.
3. Press the PLAY button on the VCR.
1. The aerial cable should not be bundled to the power cord.
