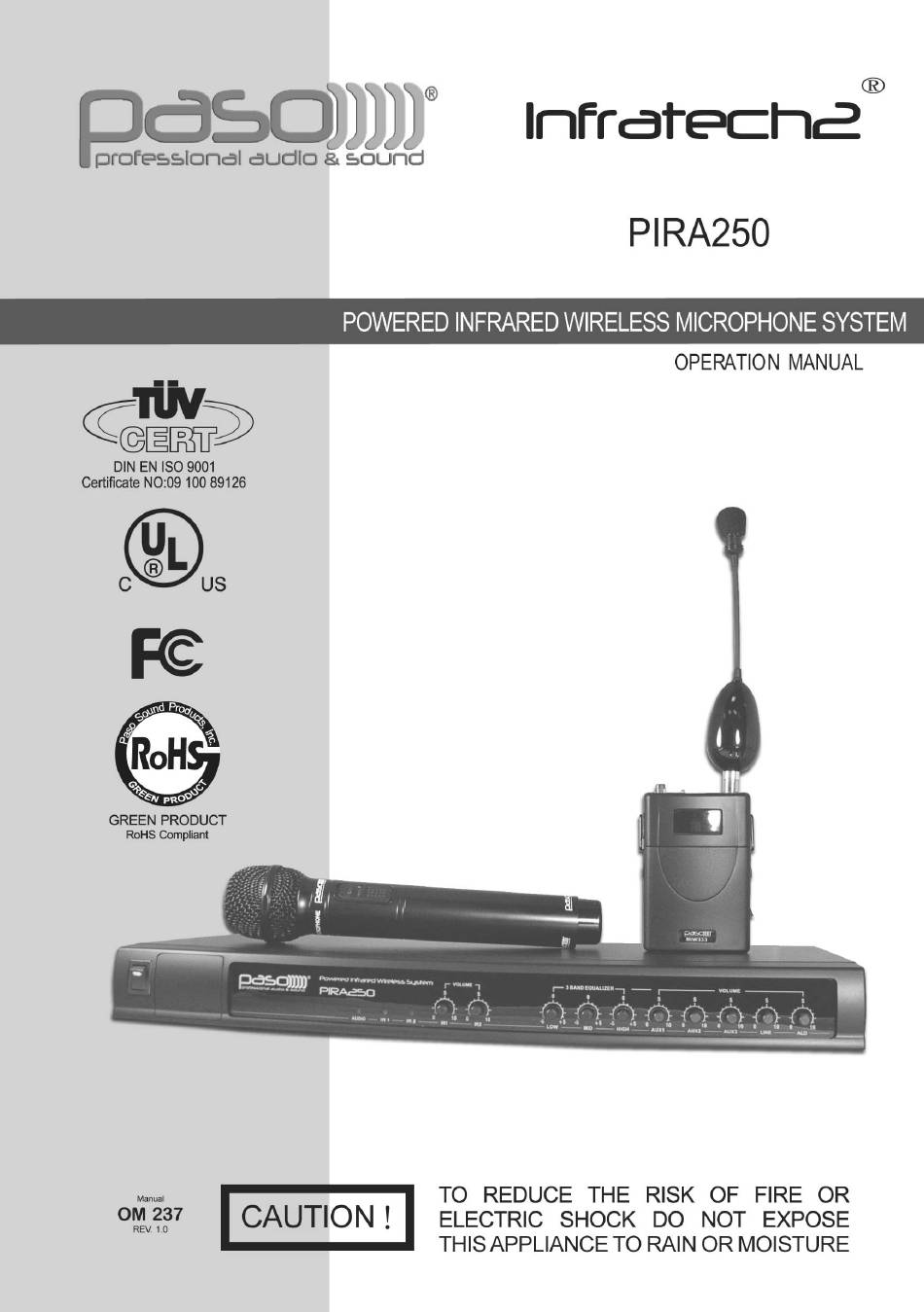

Paso Infratech2 PIRA250 Operation Manual

Powered infrared wireless microphone system

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infratech2 PIRA250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paso Infratech2 PIRA250

  • Page 3: System Configuration

    USER'S MANUAL Thank you for purchasing our infrared wireless microphone system. Please be sure to read the manual thoroughly to be fully familiarized with its functions and keep it for future reference. SYSTEM CONFIGURATION MIW335 PIRA250 Power Supply MIW333 Handheld Transmitter Base Station Receiver for PIRA250 Beltpack Transmitter...
  • Page 4: Infrared Receiver

    INFRARED RECEIVER PIRA50 FRONT PANEL Parts and Functions: 1. Power switch 8. Mid-tone control 2. Audio indicator 9. High-tone control 3. IR1 reception indicator 10. Aux1 volume control 4. IR2 reception indicator 11. Aux2 volume control 5. IR1 volume control 12.
  • Page 5 Handheld Transmitter MIW5 Parts and functions 1.Grille cover. 2.Status LED: Bicolor LED will glow when switch is put to ON : Green : Battery is full and transmitter is in normal mode. Red : Battery is weak and will shut off soon. Please charge the battery. 3.Power switch Slide to turn microphone on or off.
  • Page 6: Battery Installation/Replacement

    Battery Installation/Replacement Turn the battery cover counterclockwise and pull out. As shown in figure. Make sure the power switch is in OFF position when installing or replacing batteries. And then install the new battery according to its correct polarity. A. Battery installation (00mA / .V x ) B.
  • Page 7: Battery Operating Time

    Beltpack Transmitter MIW Part and functions: 1.Volume control 6.Cover-release button 2.Bi-color Power / Battery status indicator: 7.Charging contacts 3.Power switch 8.Emission power selector 4.mini XLR socket 9.Channel selector 5.Infrared emitter 10.MT gain control Various Settings in MIW Channel Selection: First open the cover of MIW333's battery compartment by pressing its release buttons on both sides.
  • Page 8 Various Microphones for the MIW 1. MIR63 Parts & Functions 1. mini XLR connector 2. IR emitter 3. mic capsule Usage: Plug the XLR connector to the XLR socket of MIW333. 2. PIRT33 Parts & Functions 1. mini XLR connector 2.
  • Page 9: Parts And Functions

    Charging Station XC Parts and Functions:     1.Fully charged 5.DC input 2.Charging 6.DC output 3.Charging (Rear) 7.Charging socket (Rear) 4.Fully charged (Rear) 8.Charging cable Charging the transmitters: .Make sure that the batteries installed in the transmitter are rechargeable NiMH type and transmitter power has been turned off.
  • Page 10: Operating The System

    OPERATING THE SYSTEM 1. Plug the adaptor in a nearby outlet and then connect the DC plug of adaptor to your receiver. 2. Connect the receiver to speaker and turn on the PIRA250. 3. Slide the power switch of microphone to "ON". Then the channel indicator of receiver will light up.
  • Page 11 Ceiling Sensor PIRS0 PIRS360 has a wide reception of 360-degree angle to see the entire room at once. Users can select 1, 2 or more PIRS360 to operate with PIRA250 receiver according to different locations. Below are 2 examples for sensor placement of 1 and 2 PIRS360 in two applications.
  • Page 12: Product Specifications

    Specification: PIRA50: Base Station Receiver ITEM PRODUCT SPECIFICATIONS Receiving frequency 2.08MHz & 2.54MHz Modulation FM wide-band IR frequency response 50Hz to 12kHz Speakers 6 to 8 Ω Speakers output power 50W+50W (4 Ω) / 25W+25W (8 Ω) Acoustic output 90dBa ± 3dB @ 1m into 8 Ω Auxiliary input level -18dB ±...
  • Page 13 MIW: Beltpack Transmitter ITEM PRODUCT SPECIFICATIONS Transmitting frequency 2.08MHz & 2.54MHz (switchable) Modulation FM wide-band Frequency response 50Hz to 10kHz Operating range 20 m line-of-sight Transmission angles 160° horizontally; 40° vertically Microphone type uni-directional hyper-cardioid User controls Switch [on/off]/volume/channel (A/B)/sensitivity (MT)/power(Hi/Lo) Inputs/outputs 5 pin XLR mic input;...
  • Page 14 PIRS0: Ceiling Sensor / PIRS0: Wall Sensor ITEM PRODUCT SPECIFICATIONS Operating frequency 2.08MHz & 2.54MHz 2.08MHz & 2.54MHz Operating range 20 m line-of-sight (typical) 20 m line-of-sight (typical) Signal/Power interface F-female jack, 8" lead F-female jack, 8" lead Number of IR LEDs Power indicator LED Reception area 240 m²...
  • Page 16: Customer Service

    In warranty repairs must be returned to the Factory. Prior authorization must be obtained from the Factory. Replacement parts inventory is maintained specifically to repair Paso products. Part sales for other reasons or applications will be Products received without authorization will be refused by declined.
